VEVOR Hydraulic Steering for Boats 300HP, Outboard Hydraulic Steering Cylinder HC5358-3 & HC5345-3, Front Mount Without Helm Pump or Steering Hose

Regular Price: US$595.00

Special Price US$494.99

Availability: In stock

Supplier: VEVOR

Category: Sports & Outdoors Sports Boating & Sailing Boating Steering Equipment Control Cables

Qty:

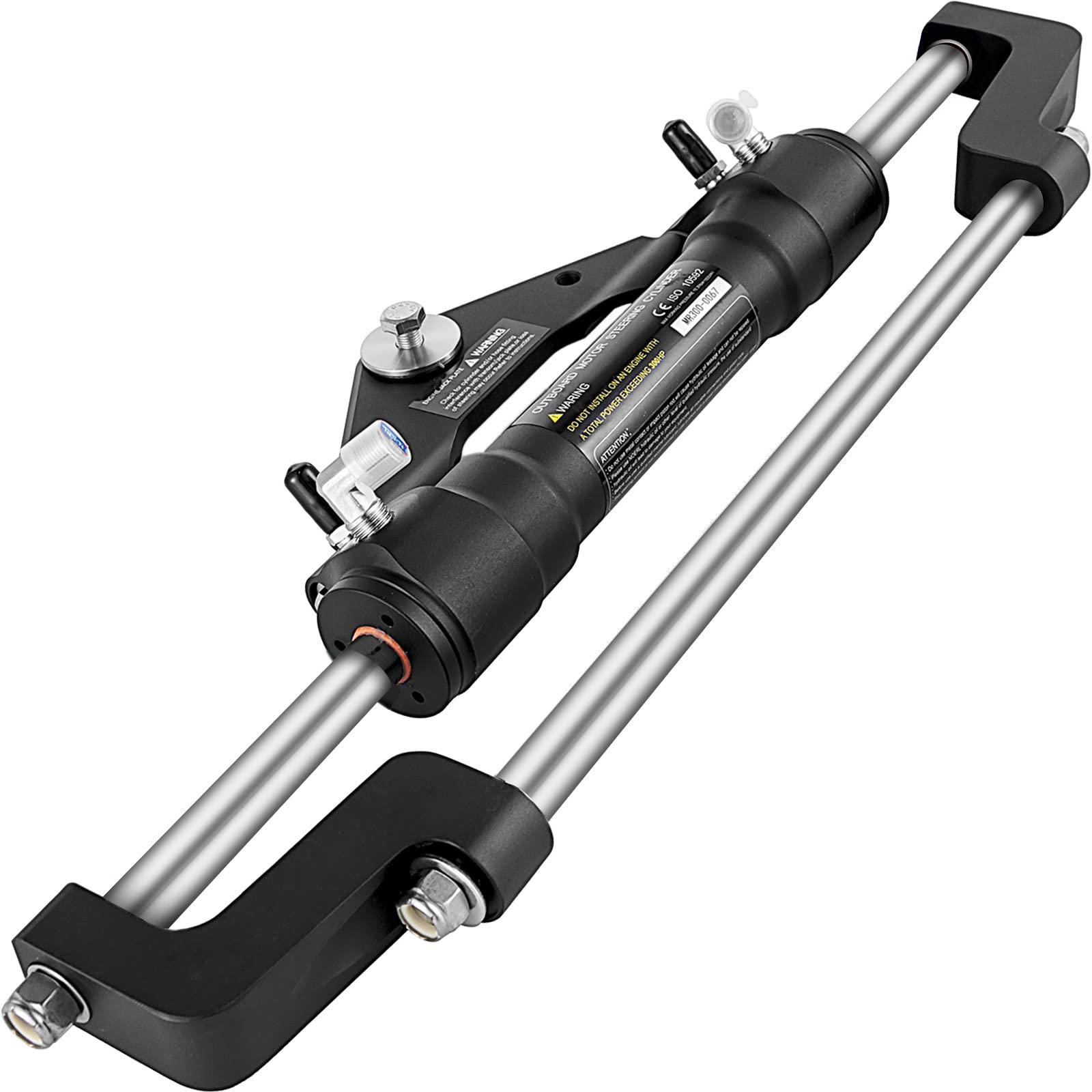

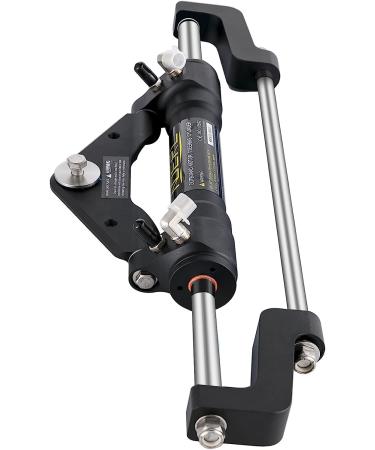

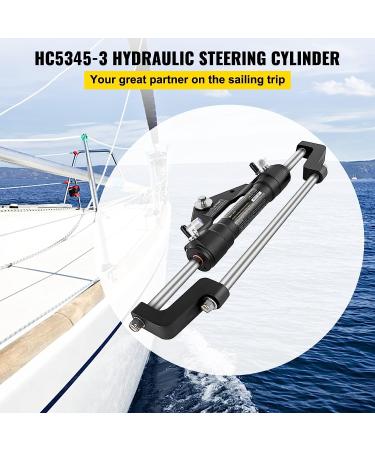

Hydraulic Outboard Steering Cylinder

ORB Fitting & Front Mount & Up to 300HP

The front mount steering cylinder is designed for single and twin non-power assisted outboard engines up to 300HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard-powered boats like the center console, offshore fishing, bass boats, flats boats, and many more.

Front Mount Cylinder
Advanced Crush Resistance
Built-In Two-Way Lock
ORB Fitting
Sturdy Aluminum Alloy


Powerful Performance The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 300 HP	Advanced Crush Resistance The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment.	Built-In Two-Way Lock The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.


Positionable O-Ring (ORB) Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.	Aluminum Alloy Casing High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance.	Wide Application The steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.

Package Content

1 x Hydraulic Outboard Steering Cylinder

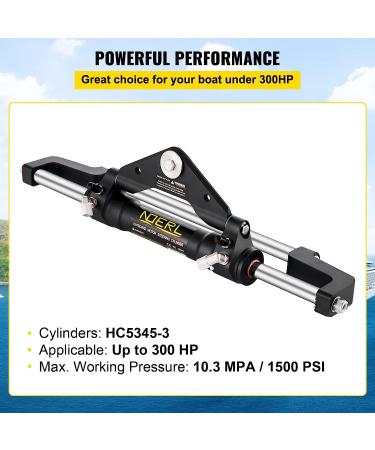

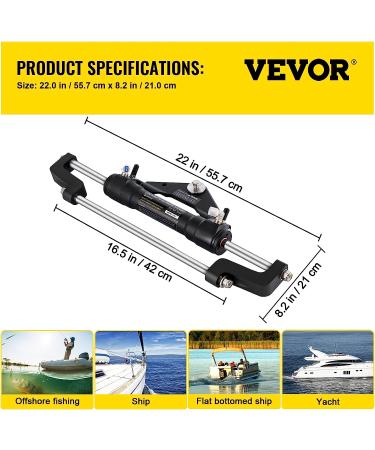

Specifications

Model: HC5345-3 Cylinder
Replaces: Teleflex Marine HC5345-3
Applicable: Up to 300HP
Max Working Pressure: 10.3Mpa/1500PSI


	Outboard Hydraulic Steering Cylinder 300HP	Outboard Hydraulic Steering Cylinder 300HP with Fuel Pipe	Outboard Hydraulic Steering Kit 300HP without Hydraulic HOSE	Outboard Hydraulic Steering Kit 300HP with 10' Hydraulic HOSE	Outboard Hydraulic Steering Kit 300HP with 14' Hydraulic HOSE	Outboard Hydraulic Steering Kit 300HP with 16' Hydraulic HOSE
TYPE	HSX-300HP-B	HSX-300HP-B	HSX-300HP-B	HSX-300HP-B	HSX-300HP-B	HSX-300HP-B
PUMPS	Not Included	Not Included	NR300	NR300	NR300	NR300
CYLINDERS	MR300-B	MR300-B	MR300-B	MR300-B	MR300-B	MR300-B
TUBE I.D[mm]	35	35	35	35	35	35
ROD I.D[mm]	17.8	17.8	17.8	17.8	17.8	17.8
OUTPUT FORCE/KGF	470	470	470	470	470	470
STROKE[mm]	214	214	214	214	214	214
VOLUME[mm]	141	141	141	141	141	141
STEERING WHEEL	Not Included	Not Included	✓	✓	✓	✓
LENGTH OF HOSE	Not Included	Not Included	Not Included	10 Feet	14 Feet	16 Feet

Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come. ORB Fitting: The new end gland sealing system has been redesigned with an 8-hole design for improved serviceability and updated with Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing. Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion. It also features independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection. Advanced Crush Resistance: Our hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. Front Mount Cylinder: The steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.

Date First Available: July 26, 2021. Best Sellers Rank: #164,561 in Sports & Outdoors. Customer Reviews: 4.3 out of 5 stars 87 ratings 4.3 out of 5 stars. : B089YJTVCD. Size: ?300HP Hose. Included Components: ?1 x Outboard Steering Cylinder 2 x Hose. Style: ?Hc5345-3. Part Number: ?Steering Cylinder. Manufacturer: ?VEVOR. Suggested Users: ?Unisex-adult. Material: ?Stainless Steel. Color: ?BLACK. Model Name: ?300HP Hose. Brand Name: ?VEVOR. Item Weight: ?7.7 Pounds. Item Dimensions LxWxH: ?24 x 5.9 x 3.9 inches. Package Weight: ?3.92 Kilograms. Item Package Dimensions L x W x H: ?24.45 x 9.33 x 3.86 inches.
