Tilta Nucleus-M: Wireless Lens Control System, Partial Kit I | Follow Focus | WLC-T03-K1

Regular Price: US$1,175.00

Special Price US$979.99

Availability: In stock

Supplier: Tilta

Category: Electronics Camera & Photo Accessories Remote Controls

Qty:

Frequently bought together :

Price for all selected :

US$1,529.98

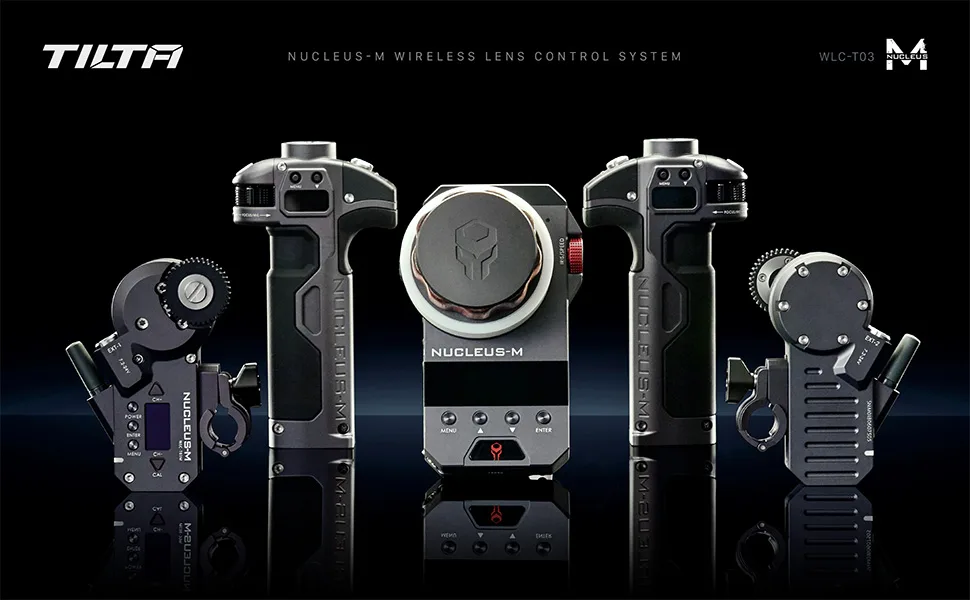

Nucleus-M Wireless Lens Control System WLC-T03

Endless Lens Control Options in the Palm of Your Hand

Nucleus M Wireless Follow Focus with RED Camera Hollywood sign

The Nucleus-M is a revolutionary and highly customizable 3-channel wireless lens control system. It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.

The wireless range of both the hand unit and hand grips is 1,000 feet and with the planned upcoming transmission upgrade, the range can reach up to 1 ¼ miles! This makes it ideal for drone or car-mounted shots.

The hand grips can be attached to the included rosette mounts for handheld operation and can also be attached to top bar-based gimbals with the included Nucleus-M Hand Grip to Gimbal Adapters or to ring-based gimbals with the optional Nucleus-M Hand Grip Universal Gimbal Ring Adapters.

Each motor has its own built-in motor drive that communicates directly with the hand unit and hand grips. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time. Simply set the motors and hand unit/hand grips to the same channel and you will have full control.

The motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don't have hard end stops at close focus and infinity. The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup. Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses.

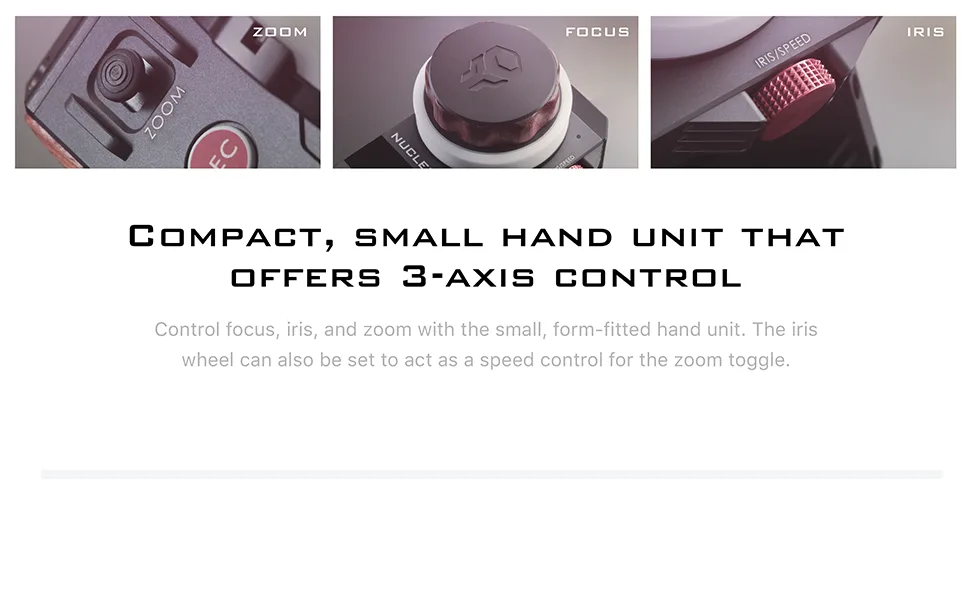

Compact Small hand unit that offers 3-axis control

To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables.

The hand unit and hand grips are each powered with two 18650 rechargeable batteries (batteries NOT included). When fully charged, the batteries in the hand grips last up to 2 days, while in the hand unit they last up to 10 hours.

Remote start/stop is possible by plugging a compatible Nucleus-M R/S cable into the open 7-pin port of a motor. This then gives you R/S capabilities through the hand unit and/or the handles.


	Nucleus-M Full Kit with Hard Case	Nucleus-M Partial Kit 1	Nucleus-M Partial Kit 2	Nucleus-M Partial Kit 3	Nucleus-M Partial Kit 4	Nucleus-M Partial Kit 5
FIZ Unit	✓	✓			✓
Included Motors	2	1	1	1	2	2
Included Handles	2 (Right & Left)	None (Available separately)	1 (Right)	1 (Left)	None (Available separately)	2 (Right & Left)
Case	Hardshell Case	Zippered Soft Case	Zippered Soft Case	Zippered Soft Case	Zippered Soft Case	Zippered Soft Case
Compatible with Nucleus-Nano	✓	✓	✓	✓	✓	✓
1000 ft. Wireless Range	✓	✓	✓	✓	✓	✓

Technical Data

FIZ Hand Unit Weight	0.972 lbs (no batteries)
Right Handle Grip Weight	0.582 lbs (no batteries or adapters)
Left Handle Grip Weight	0.529 lbs (no batteries or adapters)
Motor Weight	0.496 lbs

Motor Dimensions	Length/Height: 11.43cm \| Width: 8.26cm (end to end furthest points) \| Depth: 1.59cm (rod mount section), 1.91cm (base section), 3.49cm (motor section)
Color	Gunmetal Gray
Material	Aluminum-alloy, stainless steel, ABS plastic, rubber, Brazilian rosewood
Batteries	Unprotected Rechargeable 18650 Batteries (3.7V – 5800mAh - Not Included)

[COMPATIBLE] with Most Cinema Lenses via the Motor's 0.8 Gear Pitch or Included Gear Rings. [RUN STOP CAPABLE] via the REC Button on the FIZ/Hand Grips and Optional Run Stop Cables. [NO MDR NEEDED] Wirelessly Control the Motors Up to 1000 Feet. [PRECISE FOCUS] via Marking Discs, A-B Limits, and Electronic Focus Marking. [FOCUS IRIS ZOOM] via the FIZ or Left and Right Hand Grips.

Connectivity Technology: Radio Frequency. Compatible Devices: Camera. Color: Partial Kit I. Special Feature: Wireless. Brand: Tilta. Manufacturer: Tilta. Date First Available: October 10, 2019. Best Sellers Rank: #65 in Camera Lens Rapid-Focusing Levers. Customer Reviews: 4.6 out of 5 stars 27 ratings 4.6 out of 5 stars. Batteries: 6 Lithium Ion batteries required. Item model number: WLC-T03-K1. : B07YXN6SGL. Item Weight: 3.4 pounds. Product Dimensions: 14.5 x 11.5 x 6 inches.
