SVBONY SV105 Telescope Camera CMOS Electronic Digital Eyepiece for Telescope 1.25 inches Lunar Planetary Astronomy Camera for Beginners

Regular Price: US$129.99

Special Price US$109.99

Availability: In stock

Supplier: SVBONY

Category: Electronics Camera & Photo Accessories Telescope & Microscope Accessories Telescope Accessories Eyepieces

Qty:

Frequently bought together :

Price for all selected :

US$159.98

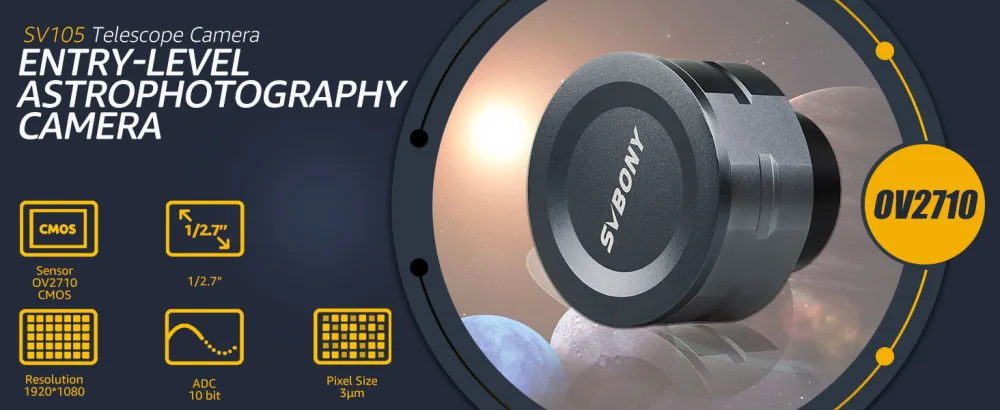

Entry-level astronomical camera——SV105 astronomy camera

Optional header

When you using SV105 astronomy camera with your telescope, you need to adjust the telescope focus wheel, while checking the image on the computer for clarity/sharpness of focus.

NOTE: The SV105 astronomy camera can't auto focus; you need to adjust the telescope focus to see a clear image.

SV105 camera works on many Windows, Linux, Android systems.

SV105 astronomy camera works well with telescope focal lengths in 400mm to 800mm range so using a refractor telescope with this focal length should allow seeing a clear image without any accessories.

When using a refractor telescope on the Moon with over 1000mm focal length you may need a focal reducer in order to focus correctly. SVBONY also sells a 1.25" focal reducer. When viewing Jupiter or Saturn, we recommend also using a barlow lens for higher magnification up to 300 times magnification power, you can better see the finer details of Jupiter or Saturn. The clarity of the image is also related to the your shooting environment and light pollution.

A little tip for beginners: if you are shooting the Moon, keep your gain lower and brightness down a little bit since the Moon is closer and brighter. When shooting the planets, increase the gain and brightness since they are much dimmer objects.

SV105 astronomy camera is just a tool for astrophotography. If you want to shoot planets like Jupiter, Saturn and Mars, etc. the quality of the telescope you use needs to be good enough; the quality of your telescope is related to SV105 astronomy camera shooting performance.

Optional header

How to Use SV105 Telescope Camera

Firstly, download the SharpCap from the SharpCap site, then install it following the prompts.

Secondly, test the SV105 by connecting it to the computer with the USB cable that comes with the camera. There is no need install a driver because the SV105 is a standard USB device, Windows 7 and newer operating system will automatically install the driver.

Thirdly, check your computer Device Manager, and if you find the Camera SVBONY SV105, it indicates a successful connection.

Fourthly, running the astronomy software SharpCap as administrator, open the software and single click the camera button, you will see SVBONY SV105, double click it, then you will see the image or some light on the screen, if all equipment is working well.

Finally, connect 1.25" SV105 electronic eyepiece to your telescope, adjust the telescope focus wheel and take photos or video on your computer and save the files. In SharpCap (or your other image capture software) adjust the Gain, Contrast, Exposure Time, Frame rate and Color Saturation.

Q: Does it shoot in color

A: Yes, it uses CMOS color sensor.

Q: Can I use this camera with Android smartphone

A: SV105 telescope camera can be used with Android phones.

Note: If you are a beginner, you can adjust according to the parameter list of User Guide. It's in the product information.

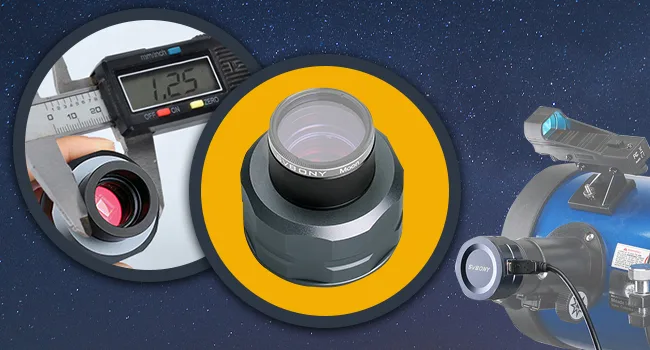

1.25" adapter barrel

SV105 telescope camera just replaces the eyepiece, for electronically enhanced viewing, or astrophotography. It would NOT work with most finder scopes that do not have a removeable eyepiece, or one that has an eyepiece smaller than 1.25".

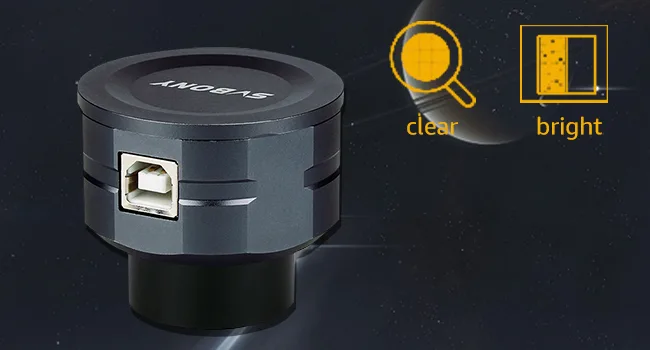

Dark light compensation technology

The image processor uses dark light compensation technology to greatly improve the telescope camera's image clarity in low light conditions.

The record 2K video at high speed, up to 30 frames per second at 1920*1080 resolution, with a maximum frame rate of up to 200 frames per second (320*240).

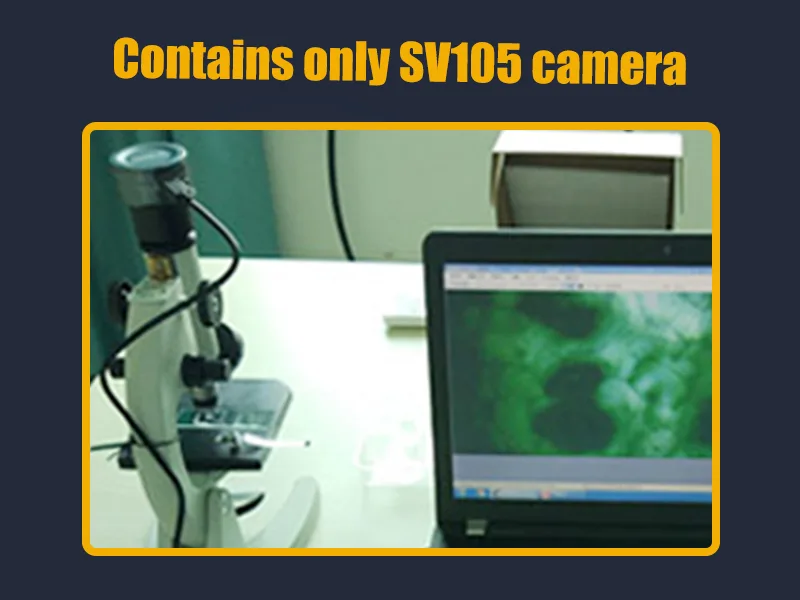

SV105 camera can work with a microscope

Entry-level Astronomy Camera

1,Set up the microscope.

2,Put the specimen on the stage of microscope,adjust the focus wheel to find clear image.

3,Connect SV105 camera to the Laptop, open the SharpCap, remove microscope eyepiece, and put camera into eyepiece hole by using a microscope adapter.

Please note: You need a microscope adapter when connecting a microscope. The SV105 camera only fits a 1.25-inch interface.

4, You can see image on the computer screen, adjust exposure time, Gain, and others, until get the clear image.

Package Includes

1 x Astronomy eyepiece camera

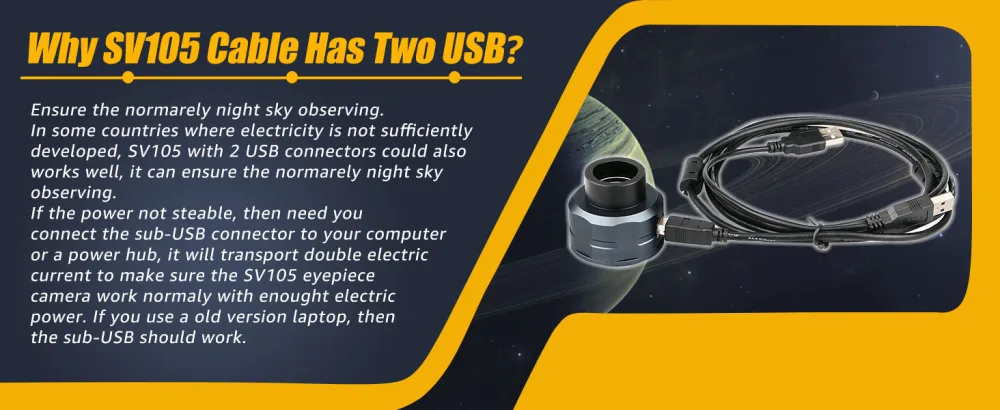

1 x 1.8m USB cable

1 x Cleaning cloth

1 CMOS color sensor 2 Camera for beginner 3 Astronomy Camera 4 USB camera 5 Astrophotography

Comparison

	SV205 Telescope Camera	SV305 Telescope Camera	SV305Pro Telescope Camera	SV905C Telescope Camera	SV505C Telescope Camera	SV705C Telescope Camera	SV305M Pro Mono camera
Scene to be used	Planetary photography	Planetary photography	Planetary photography	Planetary photography	Planetary Lunar photography	Planetary photography & EAA	Planetary photography
Sensor	1/3.2" IMX179 CMOS Color	1/2.8" CMOS IMX290	1/2.8" IMX290 CMOS Color	1/3" CMOS IMX225	1/1.8" COMS IMX464	1/1.2" COMS IMX585	1/2.8" IMX290 CMOS Mono
ADC	10 bit	12 bit	12 bit	12 bit	12 bit	12 bit	12 bit
Pixel Size	1.4µmx1.4µm	2.9µmX2.9

It can connect a 1.25 inch filter and the filter thread is M28.5x0.6;the new SV105 adds filter threads and dust protection window. Great for lunar and planetary shots;share the view of bright planets;the Moon and terrestrial targets;not suitable for deep space imaging. Record 2K video at high speed;up to 30 frames per second at 1920x1080 resolution. Dark light compensation technology;greatly improve the camera's image clarity in low light conditions. Plug and play ;windows system needs to download Sharpcap Capture; Linux system needs to download AstroDMx Capture; Android system needs to download USB Camera. real time dynamic observation by crystal clear image.

Compatible Devices: Camera. Item Weight: 9.6 Ounces. Finderscope: Reflex. Focus Type: Manual Focus. Product Dimensions: 7.28"D x 5.31"W x 2.95"H. Telescope Mount Description: Fixed Mount. Brand: SVBONY. Country of Origin: China. Manufacturer: SVBONY. Date First Available: March 19, 2018. Is Discontinued By Manufacturer: No. Best Sellers Rank: #34 in Telescope Eyepieces. Customer Reviews: 4.1 out of 5 stars 548 ratings 4.1 out of 5 stars. Item model number: FUSF9159A. : B07BKSHH3H. Item Weight: 9.6 ounces. Product Dimensions: 5.31 x 7.28 x 2.95 inches.
