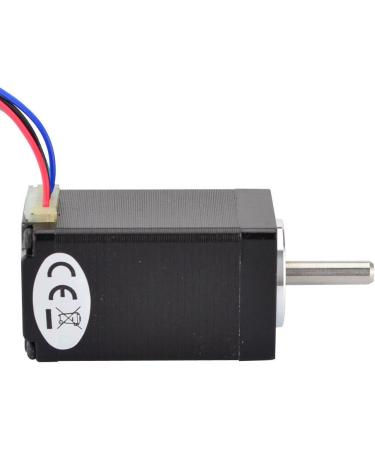

STEPPERONLINE Micro Stepper Motor Nema 11 Bipolar Stepping 0.67A 17oz.in/12Ncm 1.8deg 4 Leads

Regular Price: US$65.00

Special Price US$49.99

Availability: In stock

Category: Business & Industry & Science Additive Manufacturing Products 3D Printer Parts & Accessories 3D Printer Motors

Qty:

This hybrid bipolar stepper motor with 1.8 deg. step angle (200 steps/revolution). Each phase draws 670 mA at 6.2 V, allowing for a holding torque of 12Ncm(17oz-in). Planetary Gearbox is available for this model. Electrical Specification: * Manufacturer Part Number: 11HS20-0674S * Motor Type: Bipolar Stepper * Step Angle: 1.8 deg. * Holding Torque: 12Ncm(17oz-in) * Rated Current/phase: 0.67A * Phase Resistance: 9.2ohms * Inductance: 5.7mH+/-20%(1KHz) Physical Specification: * Frame Size: 28 x 28mm * Body Length: 51mm * Shaft Diameter: 5mm * Shaft Length: 20mm * D-cut Length: 15mm * Number of Leads: 4 * Lead Length: 500mm * Weight: 190g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Shaft Diameter F5mm , Shaft Length 20mm. Rated current 0.67A ,Step Angle 1.8°, resistance 9.2ohms. 4-wires (Black, Green, Blue, Red). Frame Size 28 x 28mm, Body Length 51mm. NEMA 11 Hybrid bipolar stepper motor, 12Ncm(17oz-in) holding torque.

Item Weight: 190 Grams. Material: Aluminum , Alloy Steel, Metal, Copper. Item Dimensions LxWxH: 1.1 x 1.1 x 2 inches. Voltage: 6.2 Volts. Brand: OSM Technology Co.,Ltd. Manufacturer: STEPPERONLINE. Date First Available: November 15, 2014. Is Discontinued By Manufacturer: No. Best Sellers Rank: #42 in Telescope Motor Drives. Customer Reviews: 4.9 out of 5 stars 10 ratings 4.9 out of 5 stars. Item model number: 11HS20-0674S. : B00PNEPMM4. Item Weight: 6.7 ounces. Product Dimensions: 1.1 x 1.1 x 2 inches.
