STEPPERONLINE 19:1 Planetary Gearbox Nema 8 Stepper Motor Geared Stepper Motor

Regular Price: US$124.99

Special Price US$104.99

Availability: In stock

Category: Electronics Camera & Photo Accessories Telescope & Microscope Accessories Telescope Accessories Motor Drives

Qty:

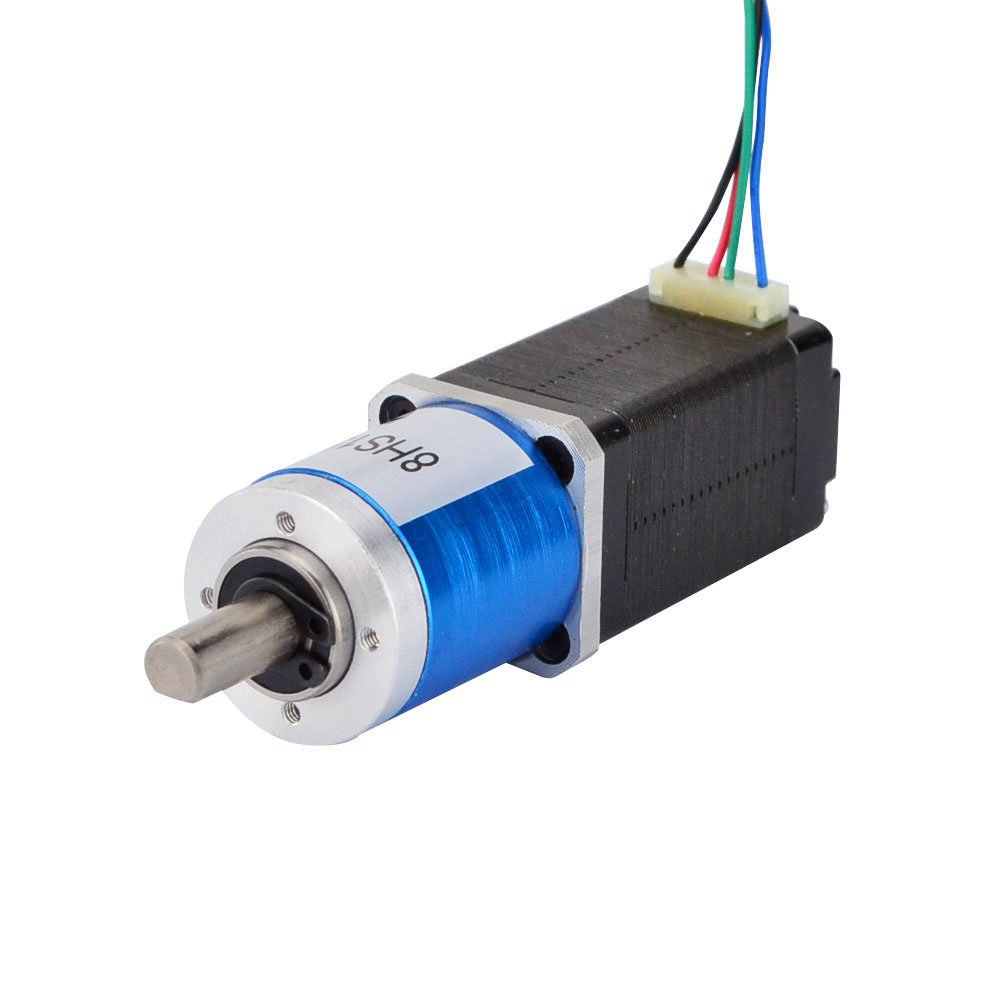

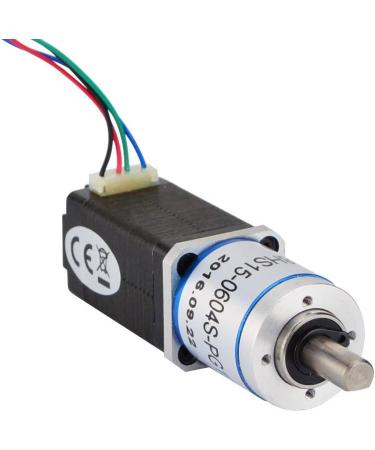

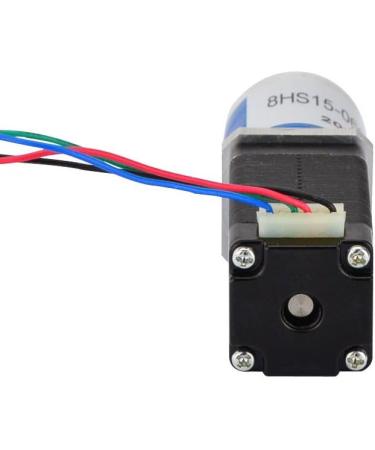

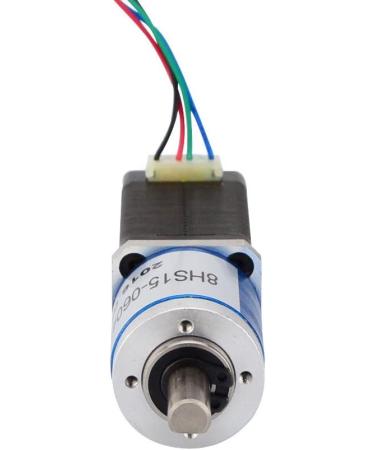

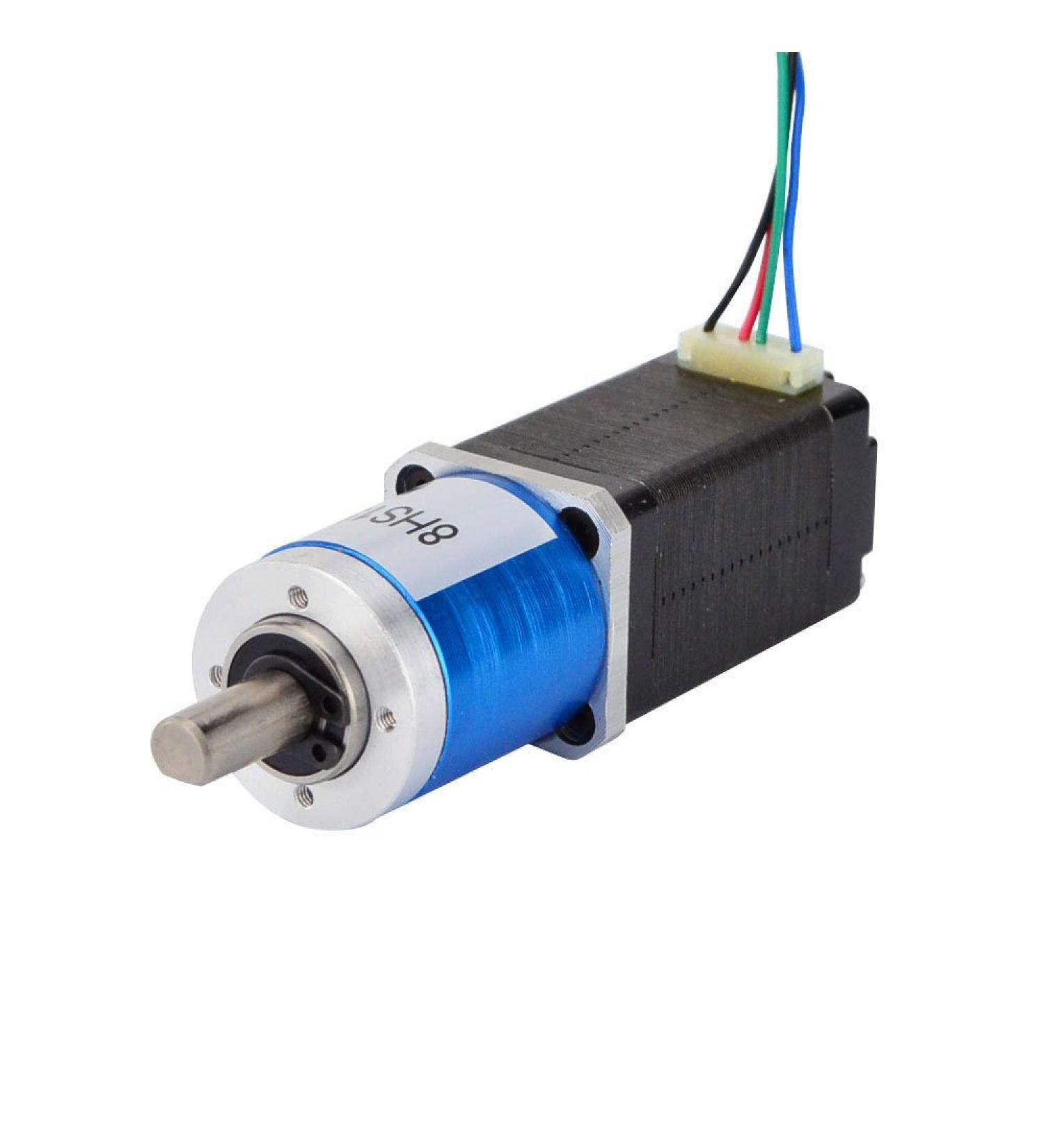

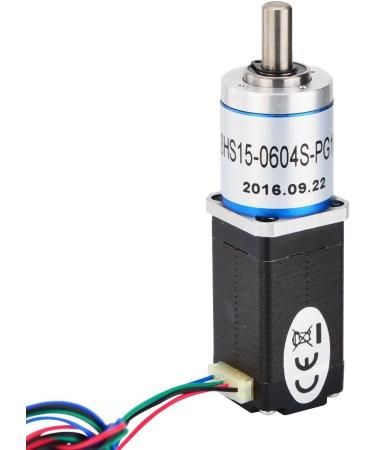

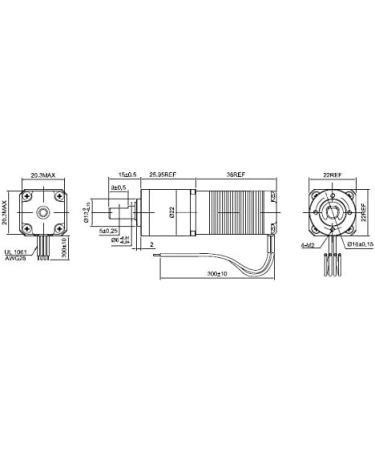

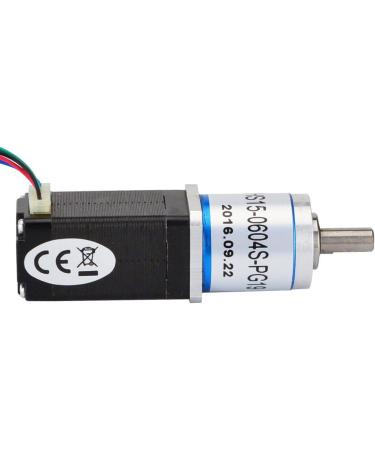

This is the smallest high precision NEMA 8 Stepper motor, it has an integrated Planetary gearbox with a 19:1 gear ratio, the resolution reach 0.095 deg. step angle. It's a good solution in applications that need very low rotation speeds and/or lots of torque. Electrical Specification: * Manufacturer Part Number: 8HS15-0604S-PG19 * Motor Type: Bipolar Stepper * Step Angle: 0.095 deg. * Holding Torque: 61.56Ncm * Rated Current/phase: 0.6A * Phase Resistance: 10ohms * Inductance: 5.5mH+/-20%(1KHz) Gearbox Specifications: * Gearbox Type: Planetary * Gear Ratio: 19:1 * Efficiency: 81% * Backlash at No-load: <=1 deg. * Max.Permissible Torque: 0.5Nm(70.8oz-in) * Moment Permissible Torque: 1Nm(141.6oz-in) * Shaft Maximum Axial Load: 5N * Shaft Maximum Radial Load: 25N Physical Specifications: * Frame Size: 22 x 22mm * Motor Length: 38mm * Gearbox Length: 29.95mm * Shaft Diameter: 6mm * Shaft Length: 15mm * D-cut Length: 9mm * Number of Leads: 4 * Lead Length: 300mm * Weight: 130g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Rated current 0.6A & resistance 10ohms. Planetary Gearbox Ratio 19:1. NEMA 8 bipolar 4-wire. 0.095 deg. Step Angle. Good Torque Good Speed.

Item Weight: 130 Grams. Material: Aluminum , Alloy Steel, Metal, Copper. Item Dimensions LxWxH: 0.87 x 0.87 x 2.52 inches. Horsepower: 81 Watts. Voltage: 6 Volts. Brand: STEPPERONLINE. Manufacturer: OSM Technology Co.,Ltd. Date First Available: November 15, 2014. Is Discontinued By Manufacturer: No. Best Sellers Rank: #33 in Telescope Motor Drives. Customer Reviews: 5.0 out of 5 stars 3 ratings 5.0 out of 5 stars. Item model number: 4332088725. : B00PNEQ6TC. Item Weight: 4.6 ounces. Product Dimensions: 0.87 x 0.87 x 2.52 inches.
