STEPPERONLINE 14:1 Planetary Gearbox High Torque Nema 17 Stepper Hobby DIY CNC Camera





Regular Price: US$94.99

Special Price US$74.99

Availability: In stock


Supplier: STEPPERONLINE

Category: Business & Industry & Science Additive Manufacturing Products 3D Printer Parts & Accessories 3D Printer Motors

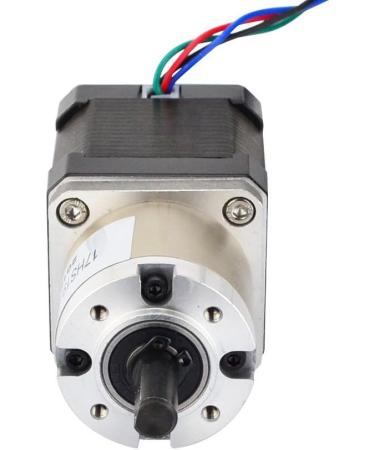

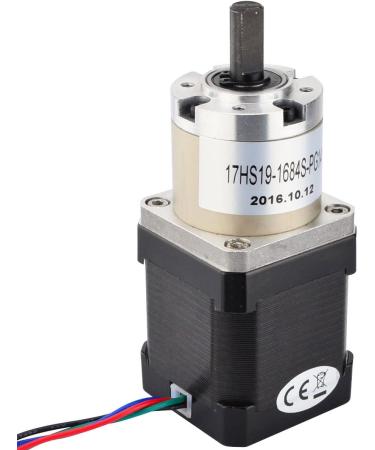

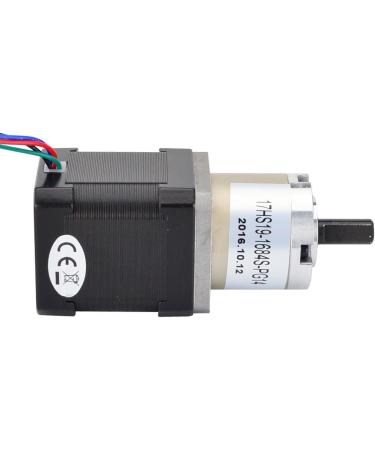

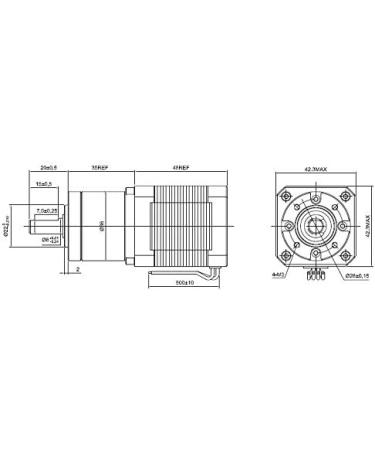

This high precision NEMA 17 Stepper motor has an integrated Planetary gearbox with a 13.73:1 gear ratio, the resolution reach 0.131 deg. step angle. It's a good solution in applications that need very low rotation speeds and/or lots of torque. Electrical Specification: * Manufacturer Part Number: 17HS19-1684S-PG14 * Motor Type: Bipolar Stepper * Step Angle: 0.131 deg. * Holding Torque: 3Nm * Rated Current/phase: 1.68A * Phase Resistance: 1.65ohms * Inductance: 2.8mH+/-20%(1KHz) Gearbox Specifications: * Gearbox Type: Planetary * Gear Ratio: 13.73:1 * Efficiency: 81% * Backlash at No-load: <=1 deg. * Max.Permissible Torque: 3Nm(425oz-in) * Moment Permissible Torque: 5Nm(708oz-in) * Shaft Maximum Axial Load: 50N * Shaft Maximum Radial Load: 100N Physical Specifications: * Frame Size: 42 x 42mm * Motor Length: 48mm * Gearbox Length: 35mm * Shaft Diameter: 8mm * Shaft Length: 20mm * D-cut Length: 15mm * Number of Leads: 4 * Lead Length: 500mm * Weight: 560g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Rated current 1.68A & resistance 1.65ohms. Planetary Gearbox Ratio 13.73:1. NEMA 17 bipolar 4-wire. 0.131 deg. Step Angle. Good Torque Good Speed.

Manufacturer: OSM Technology Co.,Ltd. Date First Available: November 28, 2014. Is Discontinued By Manufacturer: No. Best Sellers Rank: #15 in Telescope Motor Drives. Customer Reviews: 4.9 out of 5 stars 6 ratings 4.9 out of 5 stars. Item model number: 4332013338. : B00QA8XUGC. Item Weight: 1.05 pounds. Product Dimensions: 4 x 4 x 3 inches.
