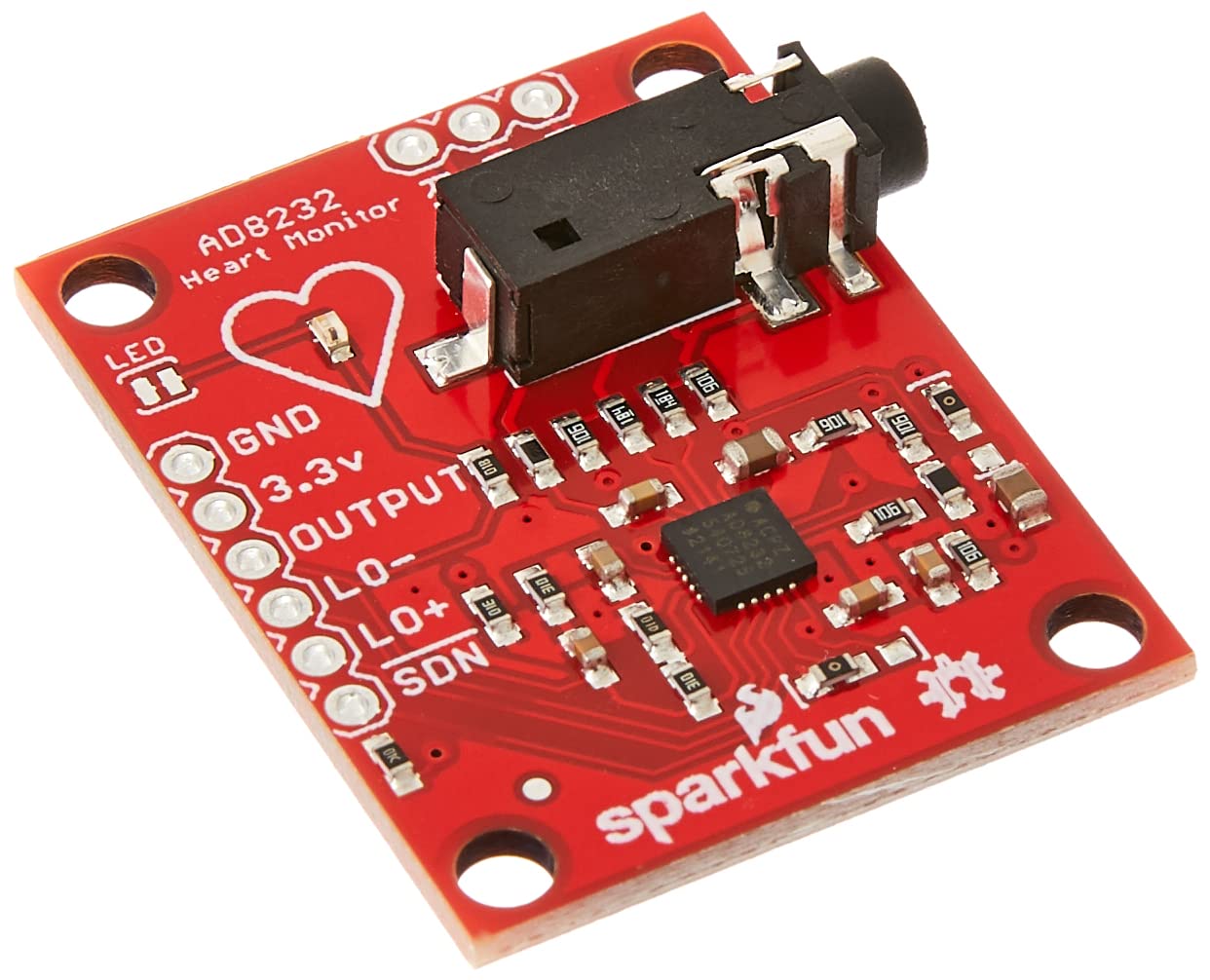

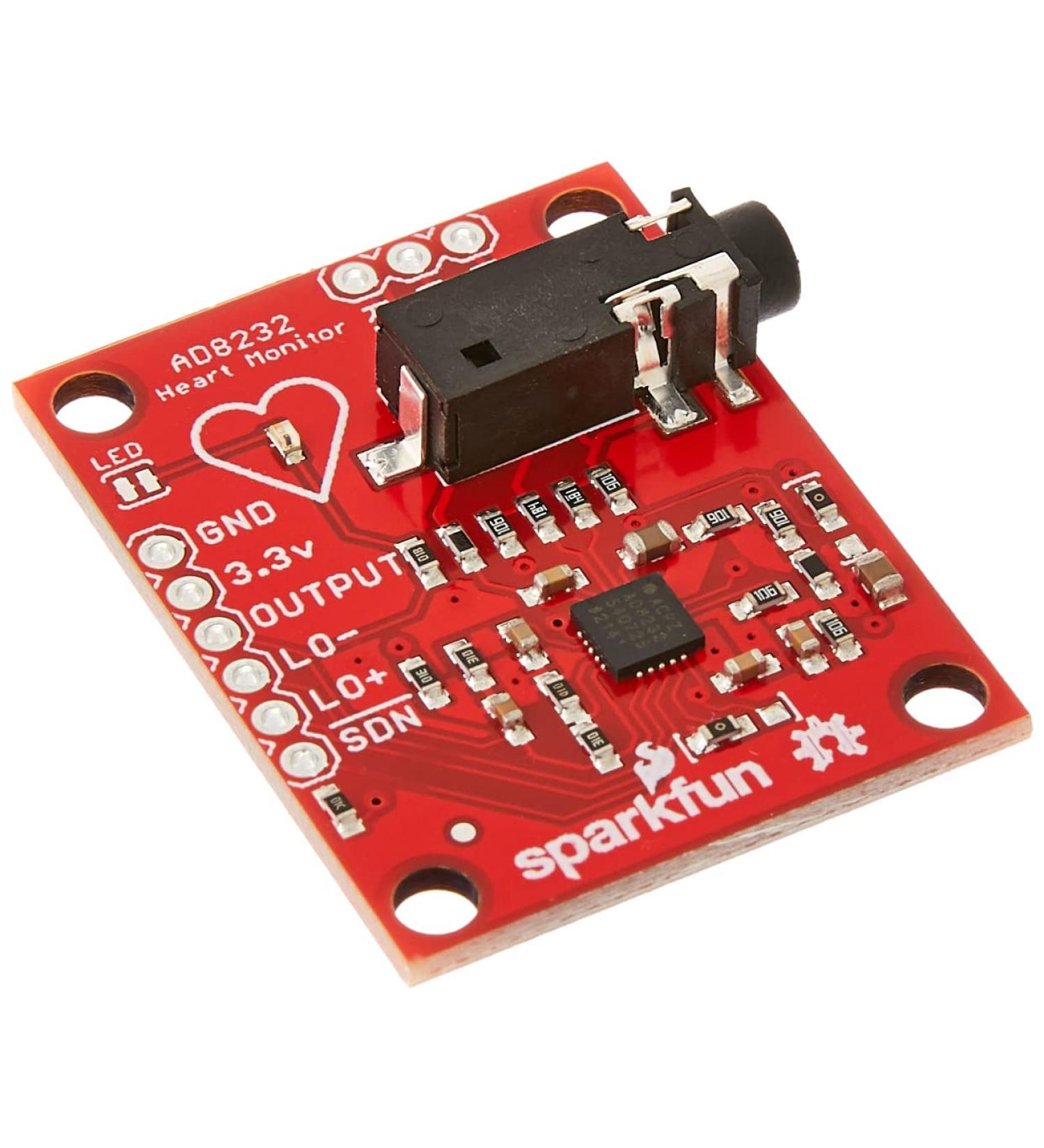

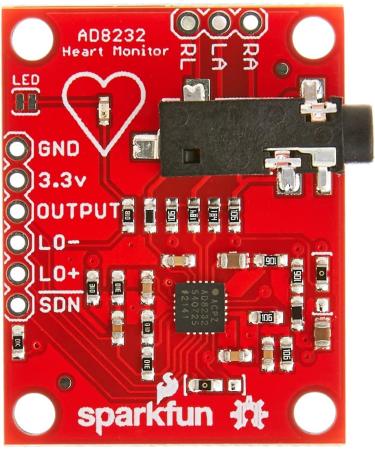

You can find the following items in the scope of delivery: 1x heart rate sensor (AD8232) Additional sensors (Sparkfun Sen-12969) and sensor label (Sparkfun CAB-12970) are also required for commissioning. Description of Sparkfun (English): The ad8232 Single Lead Heart Rate Monitor is a cost-effective board used to Measure the Electrical Activity of the Heart.This electrical activity can be charted as an ecg or electrocardiogram and output as an analog reading.Ecgs can be extremely noisy, the ad8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the pr and qt intervals easy. The ad8232 is an integrated signal conditioning block for ecg and other biopotential Measurement Applications.It is designed to extract, amplify, and filter small biopotential Signals in the presence of noisy condition, search as the those created by motion or remote electrode placement. The ad8232 Heart Rate Monitor Breaks Out Nine Connections from the Ic That You Can Solder Pins, Wires, Or other Connectors to.SDN, LO , LO, OUTPUT, 3.3V, GND Provide Essential Pins for Operating This Monitor With An Arduino or Other Development Board.So Provided on this Board are ra (Right Arm), La (Left Arm), and RL (right leg) Pins to Attach and use your own Custom Sensors.Additionally, there is on LED indicator light that will pulsate to the rhythm of a heart beat.Biomedical Sensor Pads and Sensor Cable are required to use the Heart Monitor and Can Be Found in the Recommended Products Section Below. Note: This product is not a medical device and is not intended to be used as search or as an accessory to search nor diagnosis or treat any condition. Features: Operating Voltage - 3.3V Analog output Leads-off detection Shutdown pin LED indicator 3.5mm Jack for Biomedical Pad Connection Documents: Schematic Eagle files Hookup guide DATASHEET

The AD8232 is an integrated signal conditioning block for EKG and other biopotential measurement applications.Electrocardiogram and output as an analogue can be as an analogous electrical activity.Board used inexpensively to the electrical activity of the heart.

Im Lieferumfang finden Sie folgende Artikel: 1x Herzfrequenz-Sensor (AD8232) Zur Inbetriebnahme werden zusätzlich Sensoren-Pads (SparkFun SEN-12969) und Sensoren-Label (SparkFun CAB-12970) benötigt. Beschreibung von SparkFun (englisch): The AD8232 Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily. The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement. The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors to. SDN, LO , LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board. Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heart beat. Biomedical Sensor Pads and Sensor Cable are required to use the heart monitor and can be found in the Recommended Products section below. Note: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions. Features: Operating Voltage - 3.3V Analog Output Leads-Off Detection Shutdown Pin LED Indicator 3.5mm Jack for Biomedical Pad Connection Documents: Schematic Eagle Files Hookup Guide Datasheet

Die ad8232 ist eine integrierte Signalkonditionierung Block für EKG- und andere biopotential Messung Anwendungen. Elektro-Aktivität als ein EKG-graphische werden kann oder electrocardiogram und-Ausgang als analoge ablesen. Preisgünstig Board verwendet, um die elektrische Aktivität des Herzens.

SparkFun Single Lead Heart Rate Monitor - AD8232, Single Lead Pulsmesser, Herzfrequenzsensor
