NODOCA 2022 Upgraded 19.7'' Aluminum Tufting Frame for Rug Making

• What is tufting art

Tufting is a type of textile manufacturing in which a thread is inserted on a primary base. It is an ancient technique for making warm garments, especially mittens. In the past two years, tufted rugs have become a DIY sensation on TikTok/INS/FB and other social media.

• What is the Tufting frame

Tufting Frame is a tool used to hold a tufting cloth. If you want to create a tufting carpet, you not only need a good gun, but also a safe, sturdy NODOCA METAL Tufting Frame.

Why are we developing this Aluminum Tufting Frame

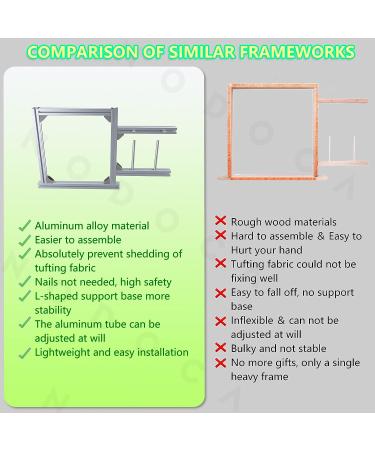

1. Wooden tufted frames use sharp nails to fix the cloth, which is potentially dangerous. In order to work in a safe situation, our development department thought of using plastic screws to fasten the cloth, and it was successful in the experiment.
2. Wood frames are susceptible to moisture, while metal is more stable, lasts longer, and is more cost-effective.

• NOTE: These Plastic Screws need to be purchased separately.

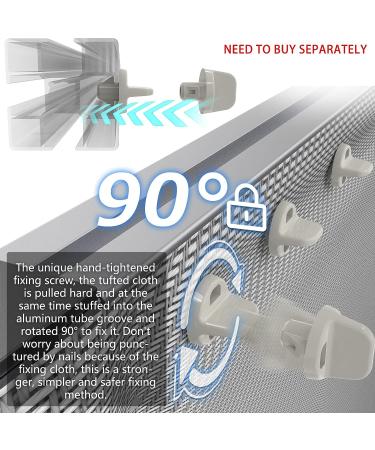

• How to Fix the Cloth

1. Cover the tufting frame with the cloth.
2. Place the plastic screws into the grooves of the frame.
3. Use a simple wrench (included in the package) to tighten all the small screws (90° left or right).

• NOTE: These Plastic Screws need to be purchased separately.

Easy 6 Installation Steps——Install in as little as 10mints.

1. 1-1Match 12 T-screws and Hexagon Screw Caps. 1-2In order to fix the aluminum tube according to the following steps, T-screw and screw cap do not need to be tightened. (The extra two T-screws will be used to secure the aluminum column from "Step 5")
2. Pass the prepared T-screw Combination through the Aluminum Corner and use the Hexagonal Wrench to securely fasten the Screw in the Aluminum Tube groove. Using aluminum corner covers instead of nails installation, all-around protection for your hands brings you a better tufting time experience.

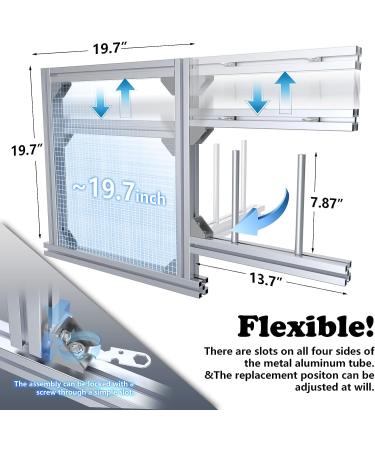

3. As shown in picture 3, the T-screw can be perfectly locked in the Aluminum Tube groove after being rotated. (Figure 3 is an explanation of the principle of step 2, and no additional operations are required.)
4. Place the Orbital Screw Cap into the pipe groove and assemble with the Circle Screw.
5. Put the Aluminum Column and the extra 2 T-screw into the Aluminum Tube groove and rotate to fix it. (Aluminum columns are used to secure the tufted yarn.)
6. Please install the Corner Dust Cover to cover the Aluminum Corner, the first can block the dust, and the second can avoid scratches during use.

• Tips: If you encounter any obstacles when installed or any other questions, please feel free to contact NODOCA-SUPPORT via your order page, we will assist you solved the problems :)

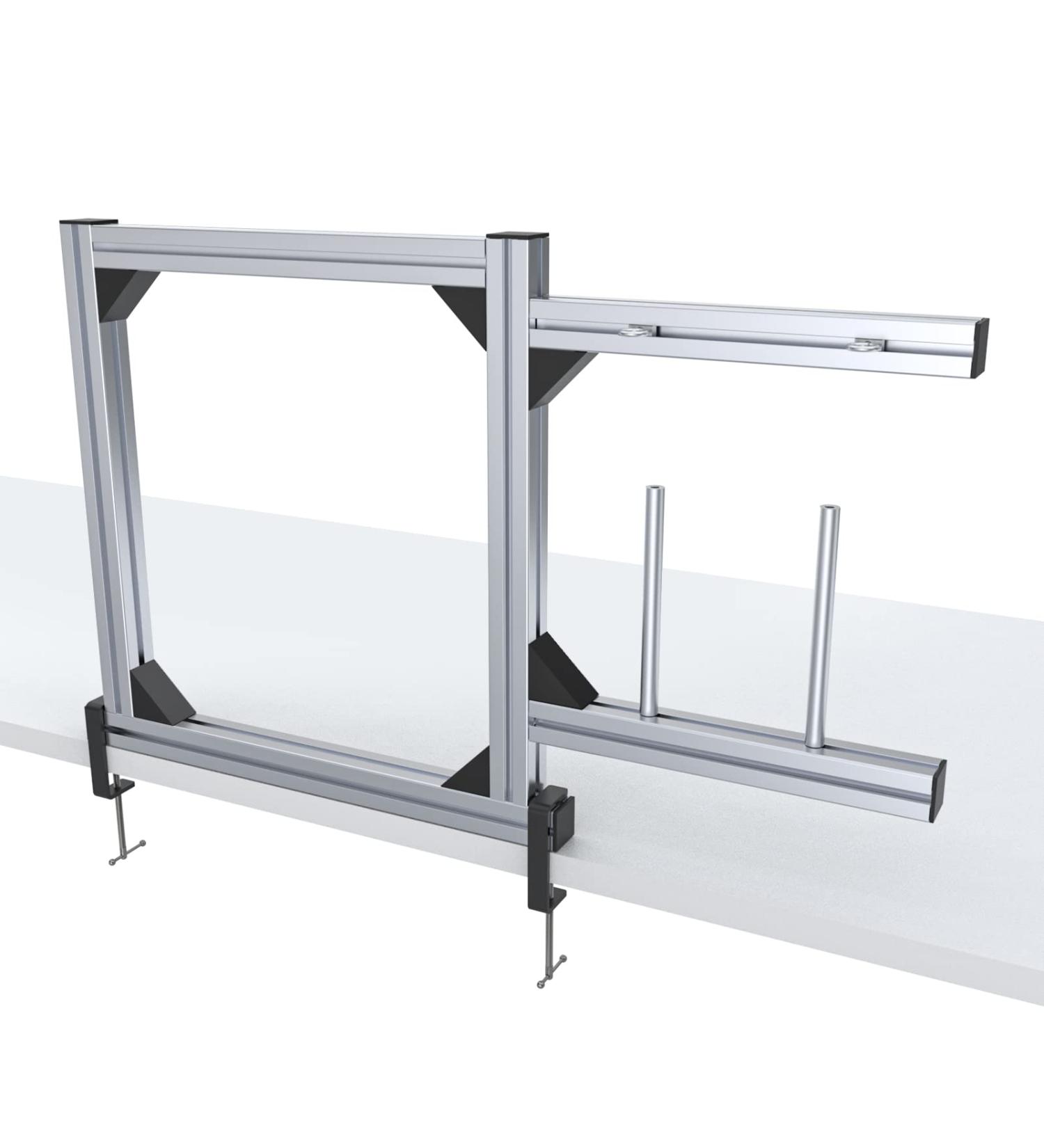

How to fasten the tufting fram to the table

1. Adjust the fixing clip to the appropriate width.
2. Fix the frame on the table firmly.

• In line with engineering logic, it can be fixed on tables of different thicknesses.

What's in the Box

1. Aluminum Tube*6
2. Fixed Clip*2
3. Hexagonal Wrench*1
4. Corner Dust Cover*6
5. Top Cover of Aluminum Tube*6
6. Aluminum Corner*6
7. T-Screw*14
8. Hexagon Screw Cap*12
9. Aluminum Column*2
10. Orbital Screw Cap*2+Circle Screw*2

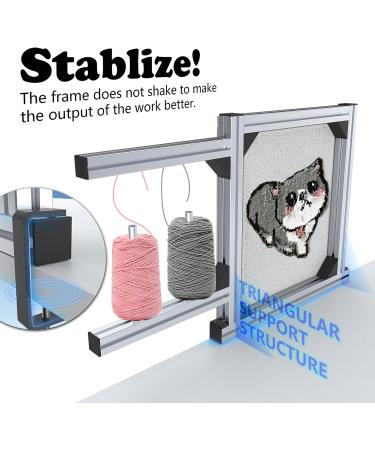

SUPER STABILITY!

• After many times violent tests, with the use of our upgraded version of the fixed clip, it can stand firmly on the plane, without jamming the thread, will not shake during tufting, and even don't be afraid the strong storms!
• WEB EXCLUSIVE METAL TUFTED FRAME——More stable & durable than the traditional wooden frame.
