Robship Soft Shackle 3x100mm Black

Regular Price: US$35.00

Special Price US$29.99

Availability: In stock

Supplier: Robship

Category: Sports & Outdoors Sports Boating & Sailing Sailing Rigging Shackles

Qty:

Frequently bought together :

Price for all selected :

US$59.98

Optional header

From choosing materials to manufacturing

We only use Ocean 3000 XG braided by FSE Robline, a rope manufacturer with over 250 years of history that uses high quality DSM Dyneema. The Ocean 3000 XG is a Dyneema SK78 with an upgraded coating to ensure good UV stability and enhances its abrasion resistance. Only our experienced professional team is involved in the production of soft shackles.

The line sizes are abundant so that each line size can be used appropriately for its intended purpose. Machine stretching is applied during the manufacturing process to make the soft shackles compact and strong. Soft shackles can be made by hand relatively easily, but soft shackles produced through this development and manufacturing process are uniquely different from handmade products. The coloring of the raw material is resistant to fading, and the PU coating on the material rope prevents being held up and feathering.


	2mm	2.5mm	3mm	4mm
Breaking Load	451kg (994lbs)	850kg (1875lbs)	1372kg (3025lbs)	1635kg (3605lbs)
Common SWL	225kg (496lbs)	425kg (936lbs)	663kg (1461lbs)	817kg (1801lbs)
Conservative SWL	90kg (198lbs)	170kg (374lbs)	274kg (604lbs)	327kg (720lbs)
Rope Diameter	2mm (5/64")	2.5mm (3/32")	3mm (1/8")	4mm (5/32")
Body Diameter	3.5mm (9/64")	4mm (5/32")	5mm (3/16")	6.5mm (1/4")
Loaded Thickness	2.7mm (7/64")	3mm (1/8")	4mm (5/32")	5mm (3/16")
Head Diameter	8mm (5/16")	9mm (23/64")	11mm (7/16)	15mm (19/32)
Available Lengths (mm)	20, 40, 60, 80, 100mm	20, 40, 60, 80, 100mm	20, 40, 60, 80, 100mm	40, 60, 80, 100, 150mm
Available Lengths (Inches)	7/8, 1 9/16, 2 3/8, 3 1/8, 4"	7/8, 1 9/16, 2 3/8, 3 1/8, 4"	7/8, 1 9/16, 2 3/8, 3 1/8, 4"	1 9/16, 2 3/8, 3 1/8, 4, 6"


	5mm	6mm	8mm	10mm
Breaking Load	2993kg (6598lbs)	4023kg (8870lbs)	5900kg (13000lbs)	7000kg (15400lbs)
Common SWL	1496kg (3298lbs)	2011kg (4433lbs)	2950kg (6500lbs)	3500kg (7700lbs)
Conservative SWL	599kg (1320lbs)	804kg (1772lbs)	1180kg (2600lbs)	1400kg (3086lbs)
Rope Diameter	5mm (3/16")	6mm (1/4")	8mm (5/16")	10mm (3/8")
Body Diameter (D)	7.5mm (19/64")	9.5mm (3/8")	11.5mm (7/16")	15.5mm (5/8")
Loaded Thickness (F)	5.5mm (7/32")	6.5mm (1/4")	9.5mm (3/8")	12mm (15/32")
Head Diameter (H)	18mm (23/32")	22mm (7/8")	29mm (1 3/16")	37mm (1 1/2")
Available Lengths	40, 60, 80, 100, 150mm	40, 60, 80, 100, 150mm	60, 80, 100, 150mm	80, 100, 150mm
Available Lengths (Inches)	1 9/16, 2 3/8, 3 1/8, 4, 6"	1 9/16, 2 3/8, 3 1/8, 4, 6"	2 3/8, 3 1/8, 4, 6"	2 3/8, 3 1/8, 4, 6"

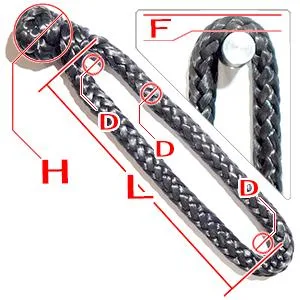

About Shackle Lengths

Robship Shackle Lengths (L) are defined as the inside length when pulled flat against a radius on each end equal to the body diameter of the shackle itself.
The Body Diameter (D) is the diameter of the finished shackle. The shackle itself is layered with the original rope passing thru the middle of itself thus is thicker than the base rope.
The Head Diameter (H) is the diameter of the knot. You will notice Robship shackles have smaller heads than competitors as they are hydraulically loaded from both sides during construction.
The Loaded Thickness (F) is the thickness of the shackle when loaded against a surface which will cause it to flatten somewhat. You can flatten the shackle manually to pass thru a slot that is slightly larger than this thickness such as for a webbing eye strap.

About Safe Working Loads - SWL (Working Load Limit - WLL)

There is no set standard for safe working loads on soft shackles. And frankly a maze in regards to steel shackles standards. A safe working load can be considered differently depending on the use and standards agency to be anywhere from 1/6th of Break Load to 50% of break load.
We use 20% of break load as a safe working load recommendation, and this is listed in the table above. Because soft shackles are so lightweight in most situations using a shackle that is "too strong" is no issue.
NOTE, that many other makers most commonly use 50% of break load for their safe working load figure. When comparing load ratings between different manufacturers it is best to look at break loads, or be sure that working loads are being compared with the same % of break load.

About Rope and Construction

These shackles are made with Robline Ocean Black made from real DSM fibers. We won't compromise on the fibers or construction of the rope
Experienced and dedicated staff do the production
Correctly sized loops, and knots which are pre tightened and then mechanically loaded on a special loading machine to specific loads make for consistent break loads and zero "pull thru" on the knots.
The black dyneema won't fade as the color is in the fibre itself.
PU coating of the base rope keeps the rope compact and reduces snagging of fibers.

Real DSM Dyneema, and machine loaded knots. Try for flat flexible key rings, or use on packs in addition to high load applications. Attach anything without tools or tying. Great replacement for Shackles or Carabiners. Small to Large, Short to Long, Get the size you want!.

Date First Available: November 8, 2020. Best Sellers Rank: #115,533 in Sports & Outdoors. Customer Reviews: 4.5 out of 5 stars 26 ratings 4.5 out of 5 stars. : B08ML9NQWX. Size: ?3x100mm. Manufacturer: ?RMS Robship Marine Supply Inc. Color: ?Black. Brand Name: ?Robship. Item Weight: ?5 Grams. Package Weight: ?0.01 Kilograms. Item Package Dimensions L x W x H: ?5.47 x 2.36 x 0.28 inches.
