RAM Mounts Large Marine Electronics Mount RAM-D-111U with Medium Arm Compatible with Garmin, Lowrance, Humminbird + More

Regular Price: US$324.99

Special Price US$289.99

Availability: In stock

Supplier: RAM MOUNTS

Category: Automotive Car & Vehicle Electronics Marine Electronics Marine GPS Accessories

Qty:

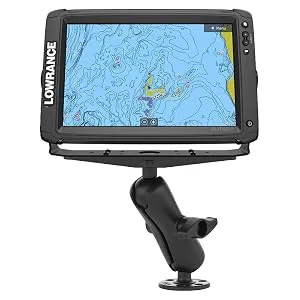

The RAM-D-111U consists of a medium double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.

Technical Specifications

Part Number	RAM-D-111U
Hardware Included	(4) .312" x .187" Shoulder Washers
Product Dimensions	Overall Height: 11.5"
Socket-to-Socket Length	6.88"
Plate Size	Top Plate: 3" x 11", Bottom Plate: 3.68" Diameter
Ball Size	D Size (2.25")
Weight Capacity	Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs
Materials	Marine-grade aluminum
Packaging Type	Poly Bag
Weight	4.47 lbs.
Additional Information	The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

FISHFINDER RAM MOUNTS

RAM Mounts, fishfinder mounts, depth finder mounts

BOATING MOUNTS

Out on the water, we know that the ideal experience requires having the versatility to confidently place and adjust your expensive fishfinders and other devices to any position while maintaining the structure of the mount out on harsh waters.

DOUBLE BALL MOUNTS

FEATURES

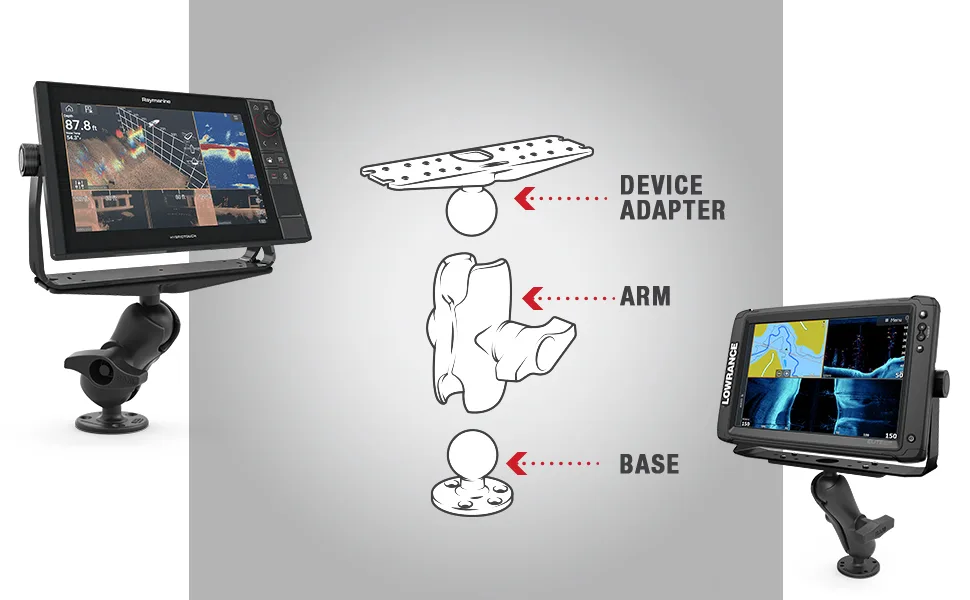

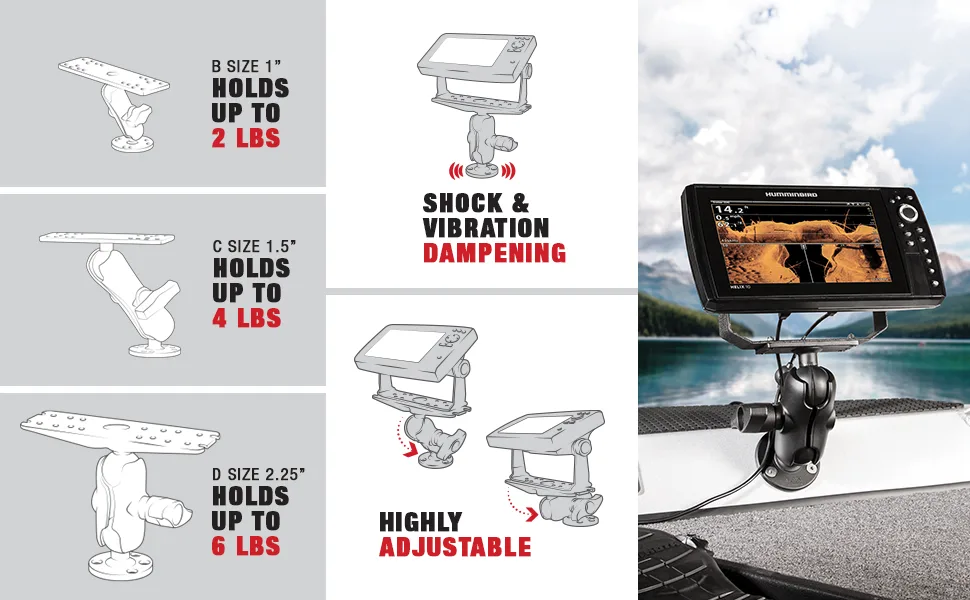

Ball and socket technology allows for near-infinite adjustability while providing the holding power to support heavy devices in the harshest environments. Simply attach the ball adapter to your device and connect with the correct size socket arm to place on to the mounting base in the location of your choosing.


	RAM Universal Marine Electronic Mount	RAM Universal Marine Electronic Mount	RAM Drill-Down Marine Electronic Mount	RAM Large Marine Electronics Mount	RAM Large Marine Electronics Mount
Height	7.3125"	5.225"	7.35"	11.5"	8.125"
Ball Size	B Size (1")	C Size (1.5")	C Size (1.5")	D Size (2.25")	D Size (2.25")
Marine-Grade Aluminum	✓	✓	✓	✓	✓
Weight Capacity	2 lbs	4 lbs	4 lbs	6 lbs	6 lbs


	RAM Drill-Down Double Ball Mount for Humminbird Helix 5	RAM Drill-Down Double Ball Mount for Humminbird Helix 7	RAM Drill-Down Double Ball Mount for Humminbird Helix 8, 9, 10 & 12	RAM Composite Double Ball Mount for Lowrance Elite-4 & Mark-4 Series
Heght	Medium Length	Medium Length	Short Length	Medium Length
Ball Size	C Size (1.5")	C Size (1.5")	D Size (2.25")	B Size (1")
Powder-Coated, Marine-Grade Aluminum	✓	✓	✓
Base	1" x 2.5" Rectangle Base	1.5" x 3.5" Rectangle Base	1.5" x 4.5" Rectangle Base	2.5" diameter
High-Strength Composite				✓

Compatible with Navico/Lowrance 8+ Inches, including: HDS, Elite series, SIMRAD. Compatible with Raymarine 8+ Inches, including: Element and Axiom models. Compatible with Garmin 8+ Inches, including: ECHOMAP, GPSMAP. Backed by a lifetime warranty. Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments. RAM Mounts ball and socket technology allows for near-infinite adjustability. Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 11.5".

Age Range (Description): Teen. Model Name: 3002.9472. Vehicle Service Type: Boat. Item Dimensions LxWxH: 8.66 x 3.15 x 1.18 inches. Material: Aluminum. Special Feature: Overall Height: 11.5", Plate Size: Top Plate: 3" x 11", Bottom Plate: 3.68" Diameter, The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device., Hardware Included:. Mounting Type: Marine. Compatible Devices: GPSRadio & Scanner. Brand: RAM MOUNTS. Date First Available: July 7, 2004. Manufacturer: Ram Mount. Whats in the box: Hardware Included:. Color: Black. Other display features: Sports. Special features: Overall Height: 11.5", Plate Size: Top Plate: 3" x 11", Bottom Plate: 3.68" Diameter, The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device., Hardware Included:. Is Discontinued By Manufacturer: No. Best Sellers Rank: #17 in Marine GPS Accessories. Customer Reviews: 4.7 out of 5 stars 238 ratings 4.7 out of 5 stars. Item model number: RAM-D-111U. : B002IV4Y42. Item Weight: 8 ounces. Product Dimensions: 8.66 x 3.15 x 1.18 inches.
