Flexible Power Solutions

Battery In

Users can use battery (not included in package) to power the device, T5+ supports both Sony NP-F and Canon LP-E6.

DC In

T5+ also can be powered by the Type-C port.

Battery Out

What's more, users can use the battery out port to power your camera when using battery power source and a dummy battery.

Various Connectors for Different Uses

SD card slot

It is used to upload custom user LUTs and update firmware (FAT32 format and size under 16G suggested).

1/4'' Screw Hole

They are made of metal and has 2 anti-rotation pin holes to prevent loose.

Earphone Jack For audio monitoring.

Joystick No more greasy fingerprints on screen.

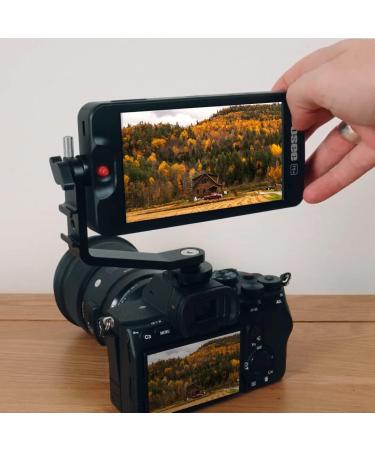

Refined Tilt Arm Design

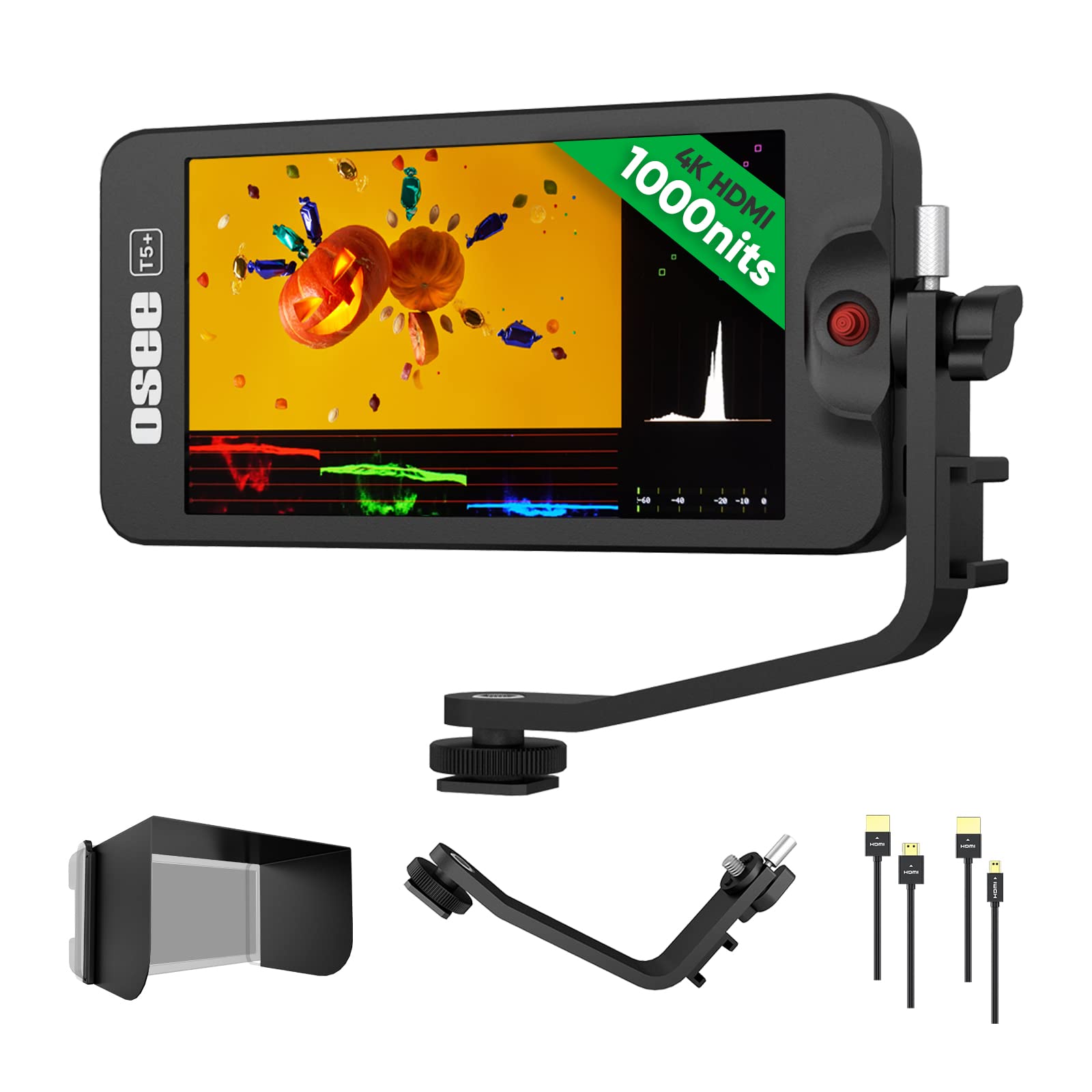

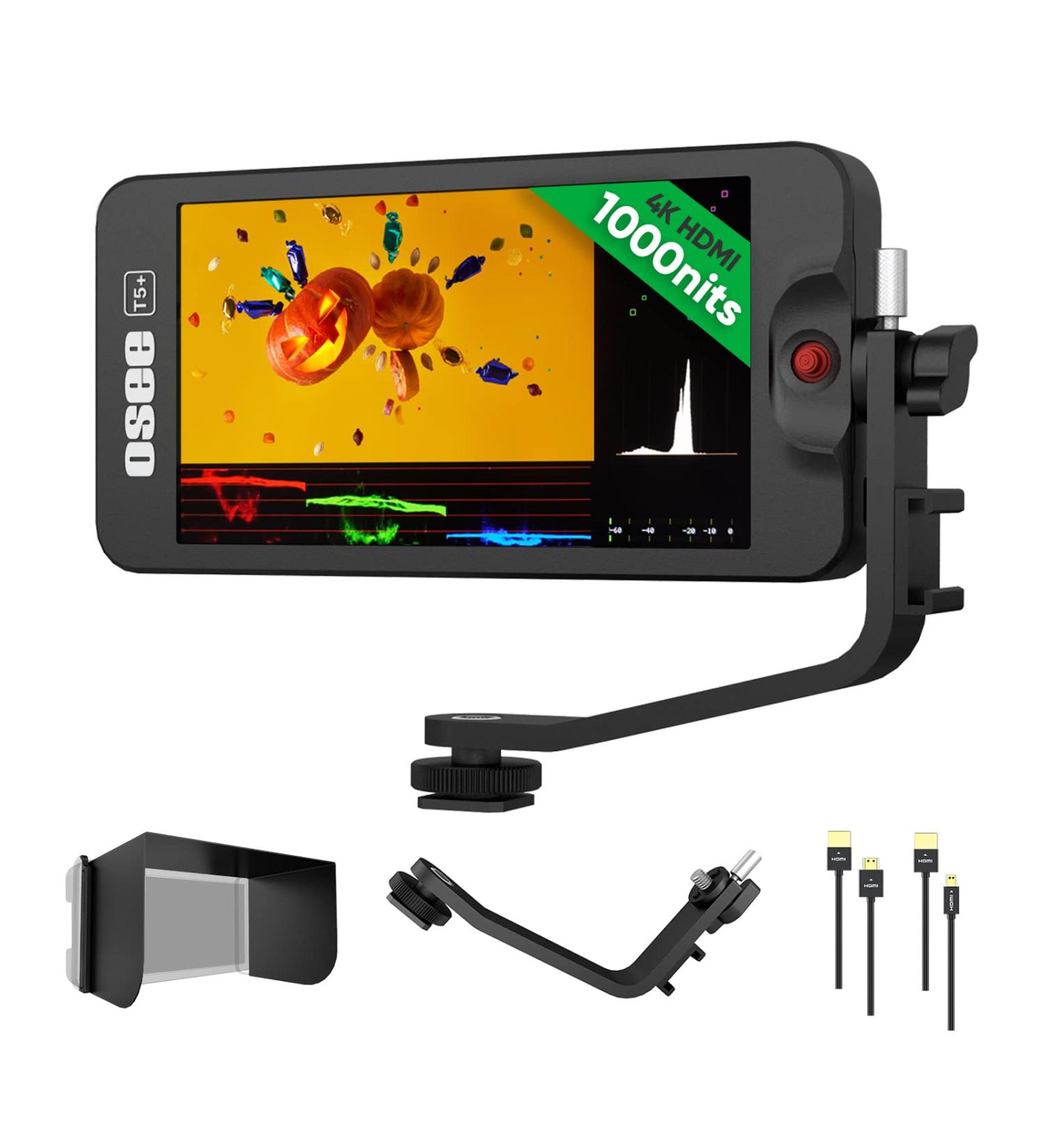

T5+ offers a specially designed L bracket which matches the 1/4'' metal screw hole with anti-rotation pin holes.

Connection Fastening Knob

After tightening the connection fastening knob, the connection of the monitor and tilt arm won't loose.

Rotation Tightness Adjusting Knob

And you can still adjust the toque adjustment screw to adjust the tightness you want for the monitor to rotate to different angle.

Zoom&Rotate

Zoom&Pan

T5+ offers 2x and 4x zoom, and in zoom mode, you can pan the joystick to check different parts of the image.

Rotate (auto or manual)

The rotate function can turn the image 180 degrees vertically, manually or automatically.

Mirror

Mirror function is for turning the image 180 degrees horizontally.

Frame Tools

Aspect T5+ supports common aspect ratios for horizontal and vertical videos, and custom ratios from 1:3 to 3:1.

Safe is a tool for displaying the action and title safe areas.

Center is used to display a center marker of the frame.

Cross Hatch can display a grid of 2x2 to 9x9 lines to help you get a better composition.

Anamorphic De-squeeze helps de-squeeze the videos shot by anamorphic lens, supported ratios are 1x/1.33x/1.5x/1.66x/1.8x/2x and there's a magnify function to magnify the image.

Exposure Tools

False Color T5+ supports false color calculated for different camera curves and it also supports custom false color.

Zebra T5+ supports custom tone ranges defined by users.

Waveform T5+'s waveform supports LUMA, RGB and Parade mode, the density of the graph is also adjustable.

Histogram displays a brightness graph like the histogram on your camera.

Vector Scope can display the saturation level of a certain color target, choosing 2x for GAIN can exaggerate the graph and make it more obvious.

Focus Tools

Focus Assist helps focus by marking areas that are in focus with different colors, there are total three colors blue, red and green for the mark. Just in case they are still not outstanding from the background, you can turn the image to black&white to make the marks more evident.

Peaking helps focus by increasing the "sharpness" of input image to exaggerate the contrast. There are 10 levels for increasing the "sharpness", with more higher level, you can see the contrast of each part of the image more clearly.

Look Tools & Others

De-log Use De-log to apply a standard color grade for different camera LOG/HDR profiles.

User LUT Use User LUT to apply a custom color grade on the signal. Up to 10 user LUTs can be uploaded into the monitor by an SD card (FAT32, under 16G). T5+ also supports User LUT intensity adjustment.

Quick Analysis is a mode where the image is scaled and waveform, histogram, vector scope and audio meter will show together around the image. The appearance of the meters can be adjusted under this mode.
