Mophorn Helm 1.4 Hydraulic Outboard Steering Pump HH4314-3

Regular Price: US$515.00

Special Price US$424.99

Availability: In stock

Supplier: Mophorn

Category: Sports & Outdoors Sports Boating & Sailing Boating Steering Equipment Control Cables

Qty:

Key Features

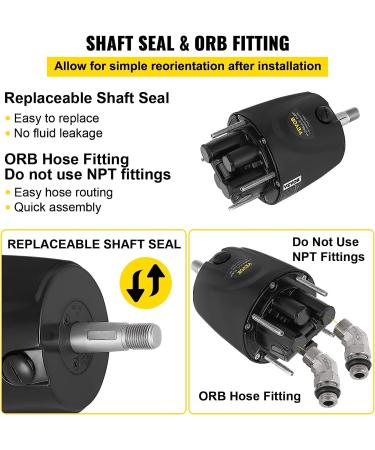

Sturdy Aluminum Alloy Characterized by premium aluminum alloy structure, the boat steering pump features high-pressure resistance and corrosion resistance.	O-ring Type Fittings The O-ring (ORB) fittings are made of stainless steel for easy hose routing and quick assembly. But do not use any NPT fitting or plug.	Replaceable Shaft Seal The shaft seal protects fluid from leaking along the shaft. Besides, it can be easily replaced to extend the service life and facilitate easy operation.

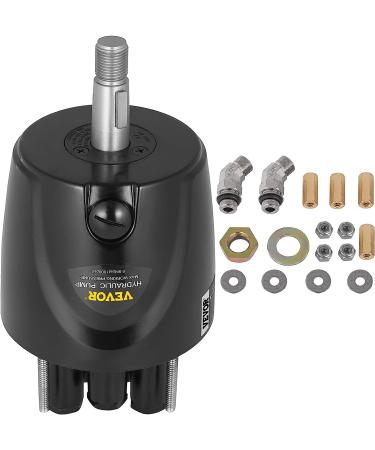

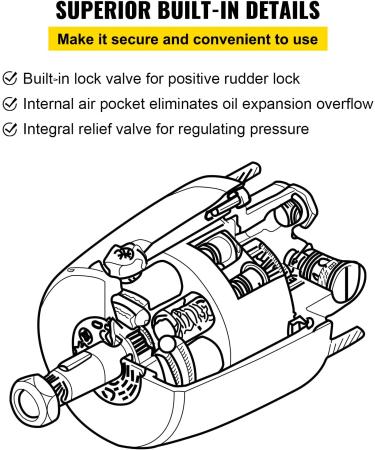

Superior Built-in Details The built-in lock valve is used for the positive rudder lock. The 1000 PSI relief valve helps adjust the pressure. The internal air pocket is able to eliminate the oil expansion overflow.	Standard Accessories The hydraulic pump has a compact internal structure and fixing bolts and screws kit. Its standard accessories provide more comfortable steering for boats.	Extensive Use This helm is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more. It is also suitable for the boats that speed up to 60 MPH.

Specifications

Reference Number: HH4314-3
Material: Aluminum Alloy
Weight: 6.3 lb / 2.8 kg

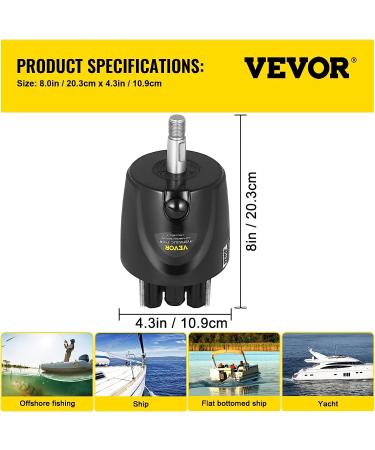

Dimensions: 4.3 x 8 in. / 10.9 x 20.3 cm

Hydraulic Steering Helm

This hydraulic steering helm is made of aluminum alloy material with O-ring (ORB) fittings and considerate details to provide smoother and more comfortable steering for boats. It is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.

Note:

The HH4314-3 supersedes and replaces the HH4314, HH4514, and HH4016 BayStar helms
If replacing the HH4016, new holes must be drilled as this utilizes four mounting studs and not three

Premium Material
Optimal Hose Fitting
Considerate Details
Complete Accessories


	Hydraulic Steering Helm HH5770-3	Hydraulic Steering Helm HH5272-3	Hydraulic Steering Helm HH5271-3
Part Number	HH5770-3	HH5272-3	HH5271-3
Powered Rated	Up to 350HP	Up to 350HP	Up to 300HP
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Helm	2.0	2.4	1.7

Sturdy Aluminum Alloy: The hydraulic steering helm comes with high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Built-in Two-way Lock: The hydraulic helm pump is equipped with the replaceable shaft seal, built-in lock valve, relieve valve, and air pocket. These details make it convenient for you to use. Shaft Seal & ORB Fitting: The pump has a shaft seal that can be easily replaced, this is a user-friendly design for your use. And the positionable stainless steel O-Ring (ORB) fittings for easy hose routing. 1.4 Hydraulic Helm: Pump: HH4314-3. Working pressure: 6.9 Mpa/1000 psi. Type: front mount. 5.2 turns lock-to-lock with 1.4 Cubic Inch Displacement. For boats rated to a maximum of 150 HP. HH4314-3 Front Mount Pump: Our helm is suitable for boats rated to a maximum of 150 HP. It can be used in mechanical/manual steering for yachts, bass boats, flats boats, and other waterborne vehicles. The helm allows you to install all of the reliability and comfort of hydraulic steering onto your single engine boat.

Date First Available: July 22, 2019. Best Sellers Rank: #243,094 in Sports & Outdoors. Customer Reviews: 4.3 out of 5 stars 27 ratings 4.3 out of 5 stars. : B07VKM9WZC. Size: ?Helm 1.4. Included Components: ?1 x Accessory Kit. Part Number: ?1. Manufacturer: ?Mophorn. Suggested Users: ?Unisex-adult. Material: ?Stainless Steel. Color: ?BLACK. Model Name: ?Helm 1.4. Brand Name: ?Mophorn. Item Weight: ?5.7 Pounds. Item Dimensions LxWxH: ?10.63 x 6.3 x 5.9 inches. Package Weight: ?3.35 Kilograms. Item Package Dimensions L x W x H: ?10.59 x 7.01 x 5.83 inches.
