Longruner 5X Geared Stepper Motor 28byj 48 Uln2003 5v Stepper Motor Uln2003 Driver Board with ArduinoIDE (no Wire)

Regular Price: US$45.00

Special Price US$34.99

Availability: In stock

Supplier: Longruner

Category: Electronics Computers & Accessories Computer Components Single Board Computers

Qty:

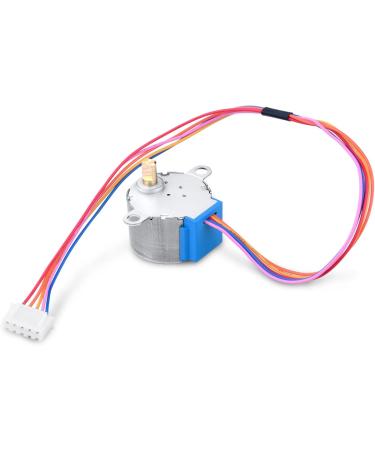

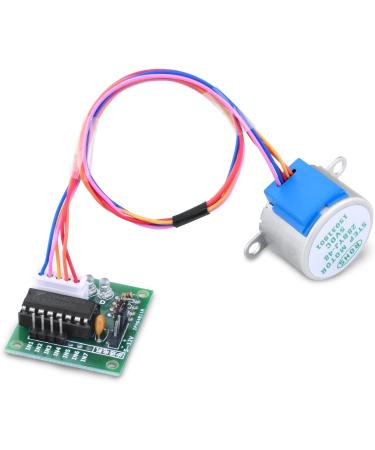

Longruner 5x Geared Stepper Motor 28byj 48 Uln2003 5v Stepper Motor Uln2003 Driver Board compatible with arduinoIDE LK67

Features:

- A, B, C, D four-phase LED indicates the status of the stepper motor work.

- Stepper motor with a standard interface, when used directly pluggable.

- 5 line 4 phase can be used for ordinary.

ULN2003 chip driver, connect to the 2 phase , support the development board,With convenient use, direct docking.

- Rated Voltage: DC5V 4-phase

- Insulation Resistance: >10MO (500V)

- Dielectric Strength: 600V AC / 1mA / 1s

- Step angle: 5.625 x 1/64

- DC Resistance: 200O±7% (25C)

- Reduction ratio: 1/64

- Insulation Grade: A

- No-load Pull in Frequency: >600Hz

- No-load Pull out Frequency: >1000Hz

- Pull in Torque: >34.3mN.m(120Hz)

- Detent Torque: >34.3mN.m

- Temperature Rise: 40K(120Hz)

Package including:

5*set Uln2003 Stepper Motor

5*Driver Board


	5X Geared Stepper Motor 28byj 48 Uln2003 with Dupont Wire	17 Bipolar Stepper Motor	TB6600 Stepper Motor Driver Controller	3 Pack Stepper Motor	3 Pack Stepper Motor	3D Printer CNC Kit

Good after-sales service. Great packing in a box : 5 set Uln2003 Stepper Motor + Driver Board. Motor diameter: 1.1 inches.Wire length:9.05 inchs. Stepping angle: 5.625 x 1/64.Reduction ratio: 1/6.Drive Module Board Size:1.26 inchsX1.38inchs. Cable length: about 20cm /8-inch. Stepper motor with a standard interface. A, B, C, D four-phase LED indicates the status of the stepper motor work. 5pcs Stepper motor and driver board compatible with 2560 1280 DSP ARM PIC AVR STM32 Raspberry Pi.

Manufacturer: Longruner. Date First Available: March 8, 2014. Is Discontinued By Manufacturer: No. Best Sellers Rank: #14 in Telescope Motor Drives. Customer Reviews: 4.5 out of 5 stars 175 ratings 4.5 out of 5 stars. Item model number: LK67. : B015RQ97W8. Item Weight: 9.9 ounces. Package Dimensions: 7.64 x 4.25 x 1.85 inches.
