Levien Generation II MB-US Front and Rear Flip Up Sight can Mount on Any Picatinny or Weaver Rail Black

Regular Price: US$65.00

Special Price US$54.99

Availability: In stock

Supplier: Levien

Category: Sports & Outdoors Sports Airsoft Sights & Optics Gun Sights

Qty:

BE SAFE

WE ONLY SHIP

FROM OFFICIAL SUPPLIERS

From United States

To International

In 5-10 Days

US$19.99 Shipping Fees for any Order

GRAND SELECTION

Think of it and most probably we have it among our grand selection of products!

AMAZING PRICES

Get ready for the amazing and best Supps prices ever!

FIXED RATE DELIVERY

Get your order anywhere on this planet within 5-10 days with a fixed rate of $19.99 (no matter the size of your order)

+1 (844)-467 8777

PHONE:

+1 (844)-467 8777

WARNING:

1. BEFORE STARTING, MAKE SURE THE WEAPON IS UNLOADED . THE CHAMBER IS EMPTY, AND THE SAFETY

2. PLEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING, COMPONENTS UNDER SPRING PRESSURE MAY EJECT FORCEFULLY AND COULD CAUSE INJURY.

FRONT FLIP SIGHT

INSTALLATION INSTRUCTIONS

STEP1:POSITION SIGHT ON RAIL

Remove the 10-24 Dual Drive screw from the Front Flip Sight and slide it onto the rail with Sight Arm to rear. When Front Flip Sight is in the desired position, proceed to Step 2.

STEP 2:MOUNT SIGHT

Using the back end of the Sight Adjustment Toola fiat head screwdriver or 1/8” Hex Key, hand tighten the 10-24 Dual Drive Screw.

NOTE:

Use care to not overtighten! Overtightening may cause damage to the Front Flip Sight or your rall. Make sure to insert Hex Key fully into drive before loosening. DO NOT USE BALL END DRIVER.

NOTE:

Flip sight up for easier install.
Do not mount to railed gas blocks!

REAR FLIP SIGHT

INSTALLATION INSTRUCTIONS

STEP 1:POSITION SIGHT ON RAIL

Remove the 10-24 Dual Drive Screw from the Rear Flip Sight and Slide it onto the rail with Sight Arm to the rear. When Rear Flip Sight is in the desired position, proceed to Step 2.

STEP 2:MOUNT SIGHT

Using the back end of the Sight Adjustment Toola fiat head screwdriver or 1/8” Hex Key, hand tighten the 10-24 Dual Drive Screw.

NOTE:

Use care to not overtighten! Overtightening may cause damage to the Rear Flip Sight or your rall. Make sure to insert Hex Key fully into drive before loosening. DO NOT USE BALL END DRIVERS.

NOTE:

Flip sight up for easier install.
When installing Rear Sight, be sure to pull back on the handle before sliding it onto the rail.

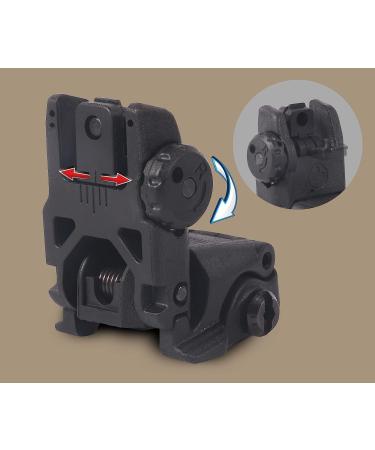

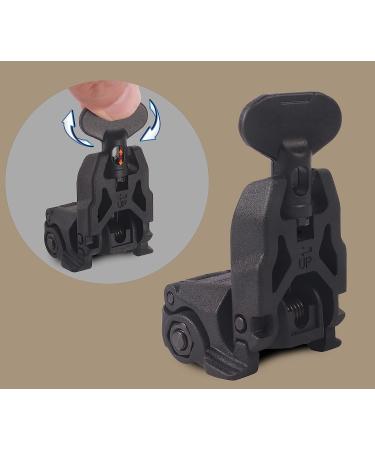

ADJUST FRONT WINDAGE To adjust the elevation, use the included Front Flip Sight Sight Adjustment tool to fully depress the detent, and turn the sight post in the desired direction. When removing the adjustment tool, make sure the detent clicks into place.	ADJUST REAR WINDAGE To adjust left-right. point of impact(POl), use the Windage Adjustment Knob on the right side of the rear Rear Flip Sight. Turn knob in the direction indicated to move the POl to the right. Turn knob in the reverse direction to move POl to the left.	APERTURE DETAIL For low-light or close-range target engagement, use the large aperture by placing the thumbnail behind the Aperture Flip and pushing forward. To return to using the Small aperture, flip it back into place.

Package Included:

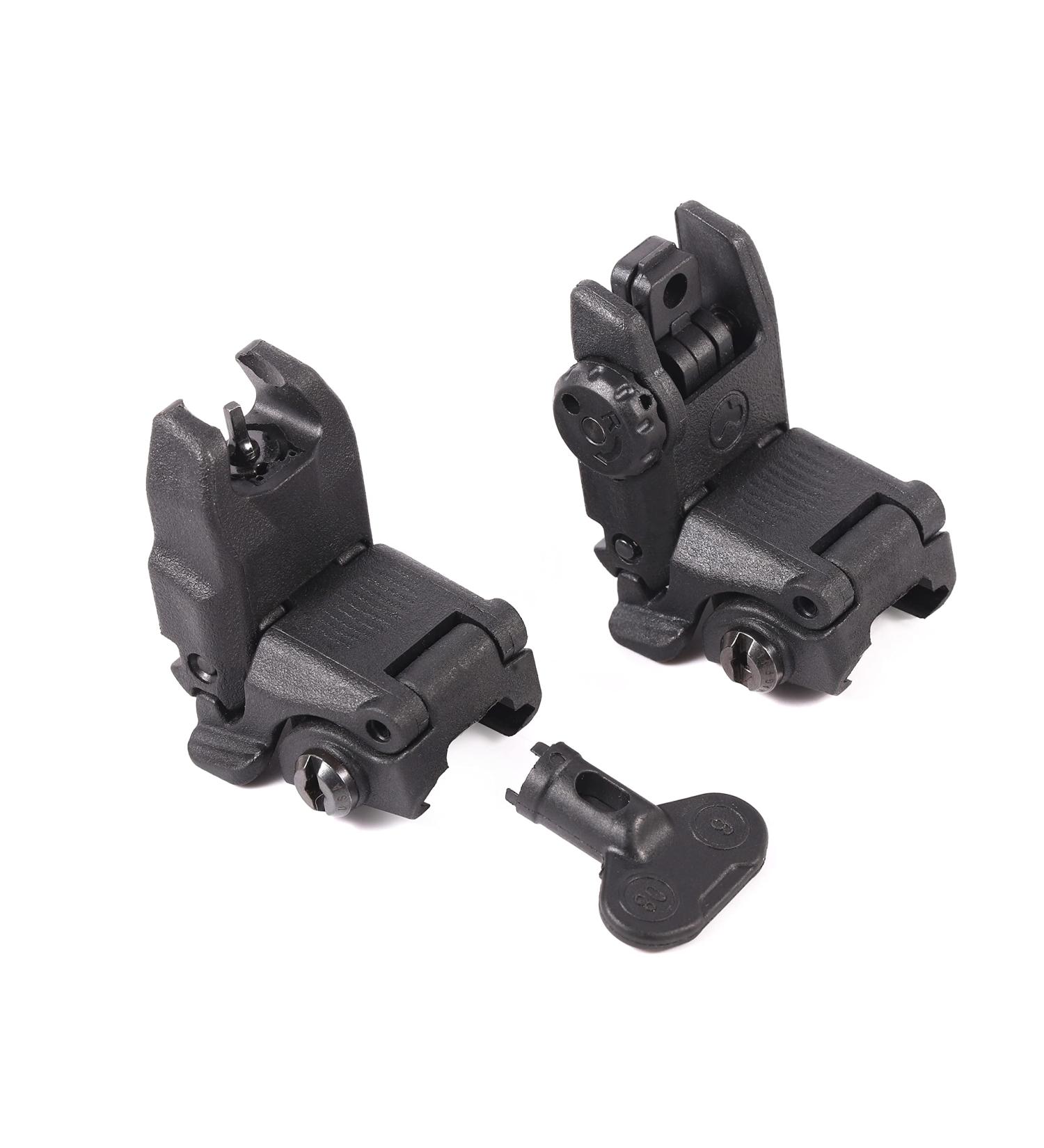

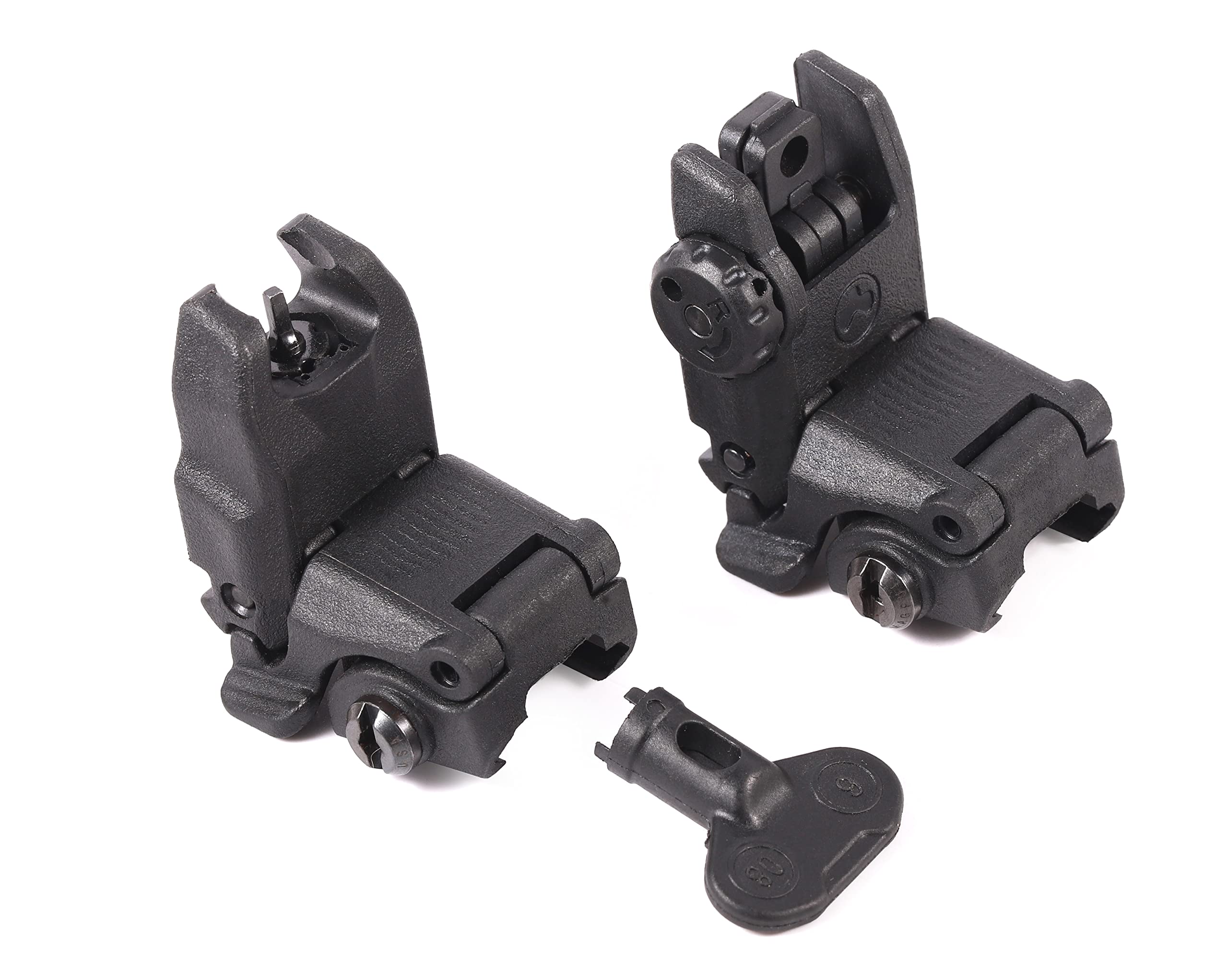

2 x Flip Up Sight set(front sight & rear sights)
1x Key
1x small box

Note:

Each quarter turn adjusts the POI~1-7/8" at 100 meters for a typical M4-type Carbine. Your results may vary depending on your weapon and the rall position of your sights (sight radius).

Description:

1. The Front and Rear Flip Up Sight (Back-Up Sight) is a low-cost, folding backup sight. It is constructed of tough, impact-resistant polymer to provide lightweight and resistance to operation.

2. High-quality flip-up front and rear sight tower complete with square post assembly with locking retention and precision elevation adjustments for greater accuracy.

3. Spring-loaded flip-up sight easily activated from either side or by pressing the top Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact. Locking Retention For Maintaining Zero Under Heavy Conditions Easy And Quick Installation.

Description: 1. The MB-US (Back-Up Sight) is a low-cost, folding backup sight. It is constructed of tough, impact-resistant polymer to provide lightweight and resistance to operational abuse. 2. High-quality flip-up front and rear sight tower complete with square post assembly with locking retention and precision elevation adjustments for greater accuracy. 3. Spring-loaded flip-up sight easily activated from either side or by pressing the top Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact. Locking Retention For Maintaining Zero Under Heavy Conditions Easy And Quick Installation. Package Included: 1 x Flip Up Sight set(front sight & rear sights) 1x Key

RELIABLE AND ACCURATE: Quick target acquisition, The large one provides a wide field of view for close-range targets whereas the smaller aperture helps in shooting long-range targets. So no matter what the environment you have it all. HIGH-QUALITY MATERIAL:Machined from lightweight and extremely durable Nylon plastic, Impact resistant polymer construction provides light weight and resists operational abuse. STURDY CONSTRUCTION: Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc. FREE ADJUSTABLE: Spring-loaded flip-up sight easily activated from either side or by pressing the top. EASY TO INSTALL: This folding backup sight is easy to mount on any Picatinny or weaver rail.

Night vision: No. Mounting Type: Weaver Mount. Compatible Devices: Picatinny Mount. Material: Nylon. Item Weight: 68 Grams. Sport Type: Flip Up Sight. Item Dimensions LxWxH: 2.36 x 1.38 x 0.79 inches. Style: Tactical. Color: Black. Brand: Levien. Date First Available: October 22, 2022. Best Sellers Rank: #5,781 in Sports & Outdoors. Customer Reviews: 4.5 out of 5 stars 78 ratings 4.5 out of 5 stars. : B0BK4PW6X2. Sport Type: ?Flip Up Sight. Included Components: ?1 x Flip Up Sight set. Style: ?Tactical. Model Year: ?2023. Manufacturer: ?Levien. Suggested Users: ?Adult. Material: ?Nylon. Color: ?Black. Model Name: ?MB-US. Brand Name: ?Levien. Item Weight: ?68 Grams. Item Dimensions LxWxH: ?2.36 x 1.38 x 0.79 inches. Package Weight: ?0.08 Kilograms. Item Package Dimensions L x W x H: ?4.69 x 3.35 x 1.26 inches.
