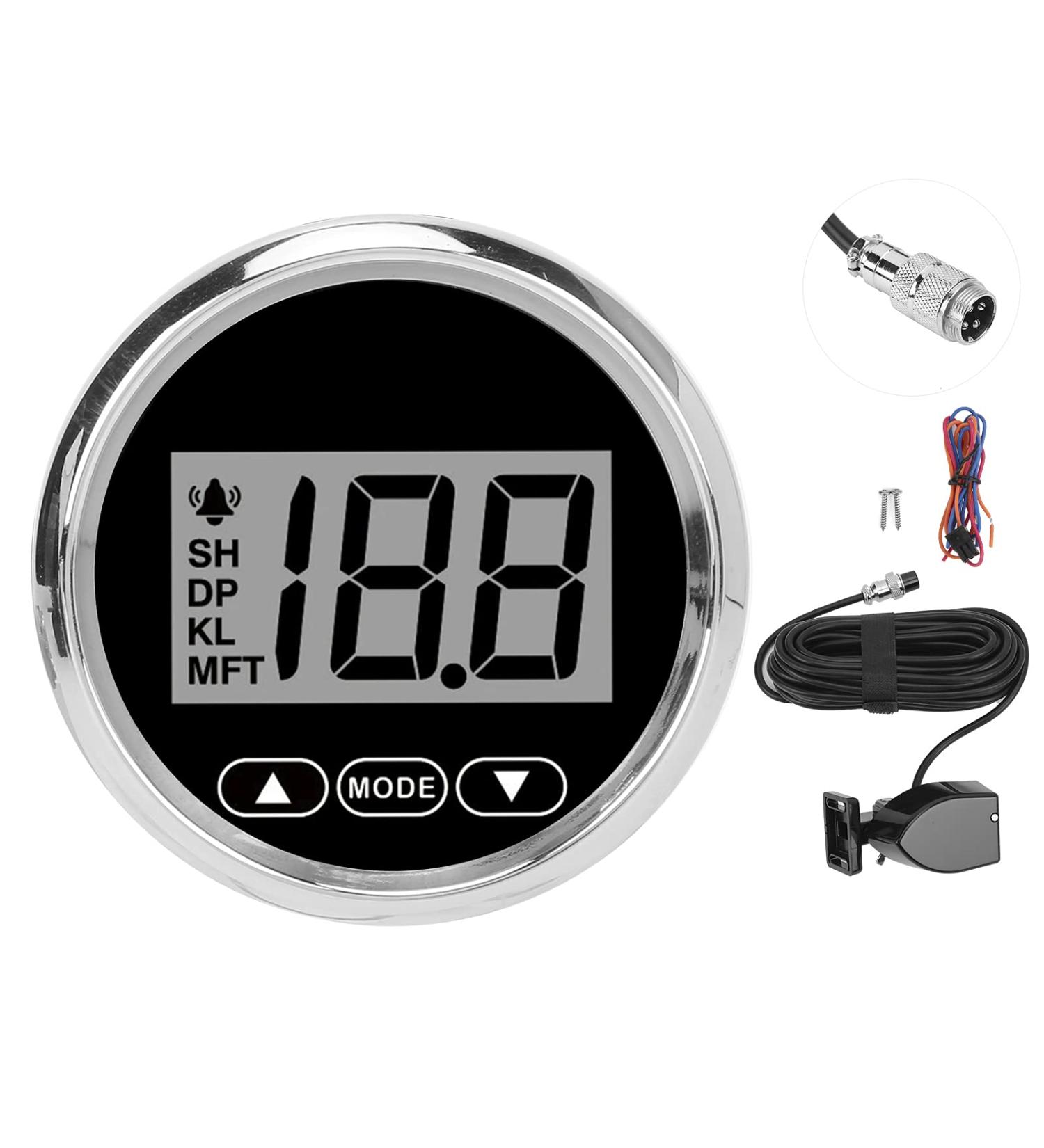

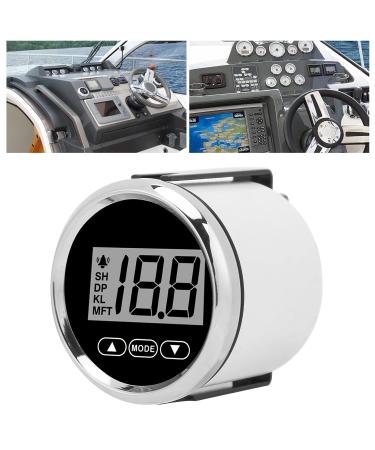

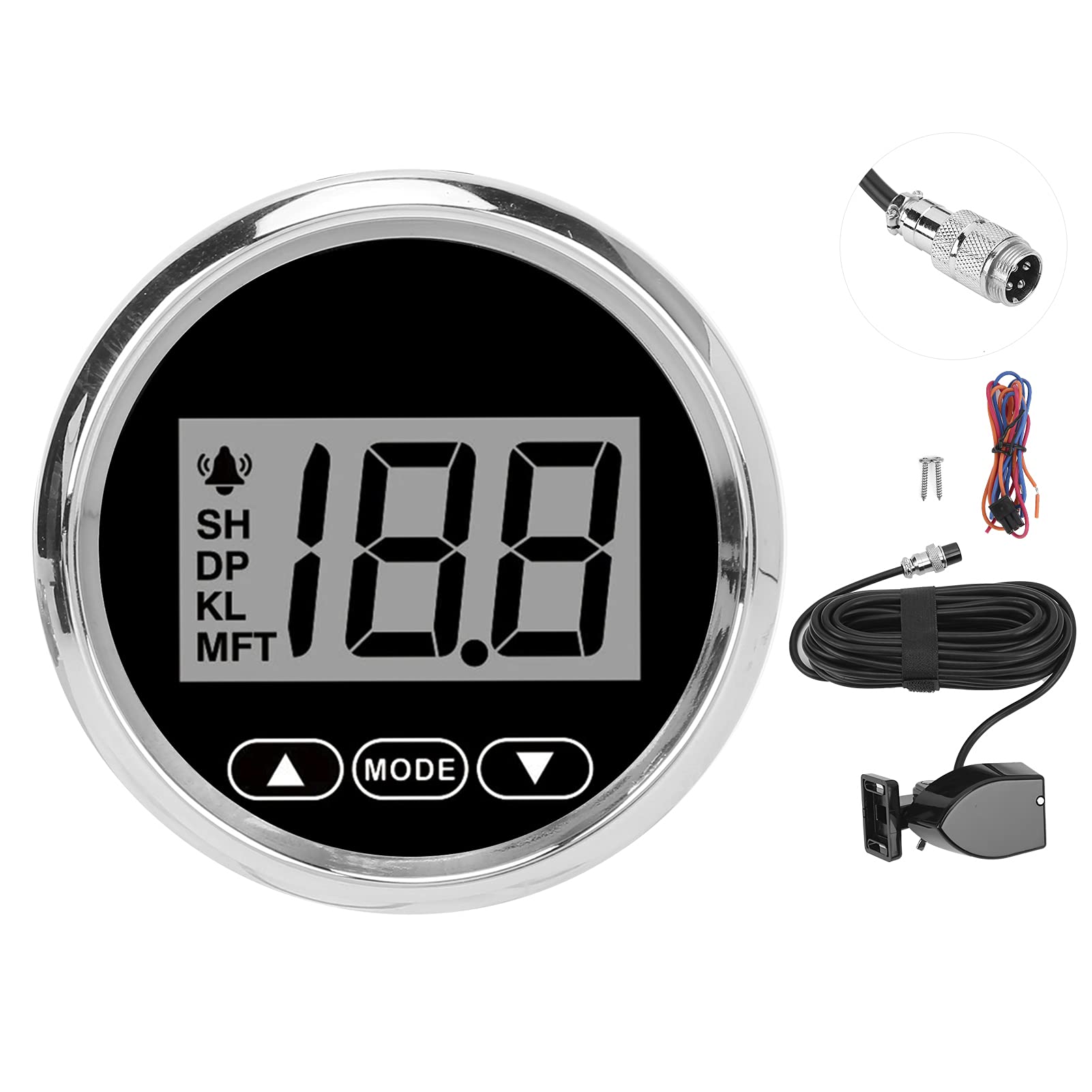

KIMISS Waterproof digital speedometer 52 mm / 2 inch marine depth knife range 100 m / 110 yd white backlight waterproof for yachts fishing boats





Regular Price: US$404.99

Special Price US$359.99

Availability: In stock


Supplier: KIMISS

Category: Sports & Outdoors Sports Technology Speedometers



Von der Marke

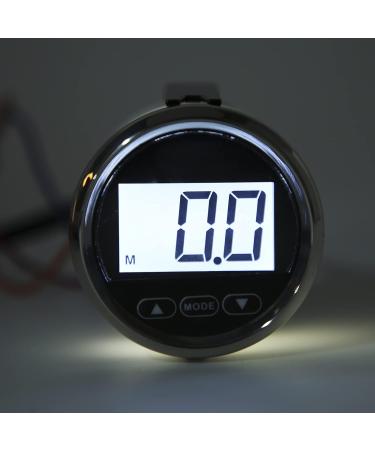

Specification: Article type: deep knife Material: stainless steel 316l + anti-fog glass Installation diameter: approx. F52 mm/2 inches Depth resource area: approx. 100m Color of the backlight: white Work voltage: 9-32VDC Working current: =100mA Working temperature: -30 ? to +75 ? Storage temperature: -40 ? to +85 ? Protection degree: IP67, the back is IP5 Operation: A. This device only works with a 12V system to display the set depth.Usually the buzzer beeps once when it has been properly connected and then switch on the device. B. Keyfield ""Modus"": Briefly press the ""Modus"" key field to switch SH/DP/KL/UN.Hold down the ""mode"" key field to switch on/off the monitor.Briefly press the ""?"" ""?"" keyboard to set the desired value.Hold down the keyboard ""?"" """" ? ""to keep the digital increase/acceptance fluently. Parameter: SH: (low alarm) range: 0-0.6-19.9, if the level is no more than the value (SH), the symbol flickert and the summer beeps all the time.With SH = 0, the setting area for the alarmal arm is not 0.6-19.9 Area: 1. Unit ""M"": 0-99 2. Unit ""FT"": 0-199 3. Unit ""F"": 0-49 When the level exceeds the specified value, the buzzer beeps twice keel offset (KL): Area: 1. Unit ""M"": 0-6.0 2. Unit ""FT"": 0-19.9 3. Unit ""F"": 0-3.3 Installation instructions: 1. After you have installed the instrument into the switching board, screw it with the fastening ring. 2. Connect the wires and connect the instrument housing directly to the 12/24V power supply. 3. Insert the wiring harness and attach it to the table. Wiring instructions: Red cable to the plus pole Orange -colored cable for backlight Blue cable to the minus

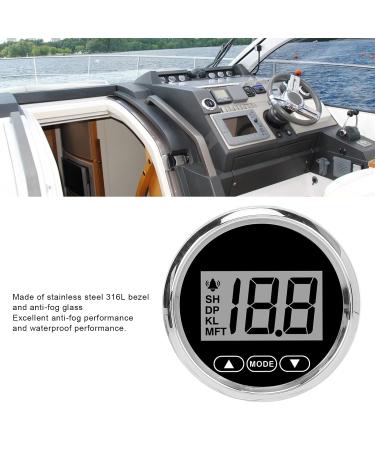

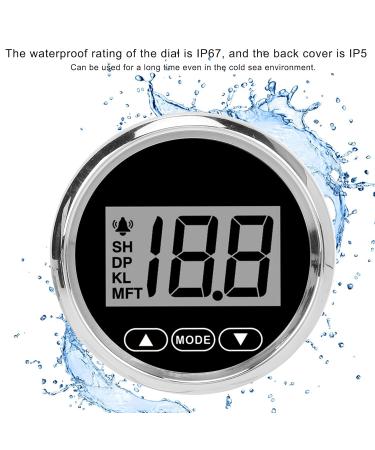

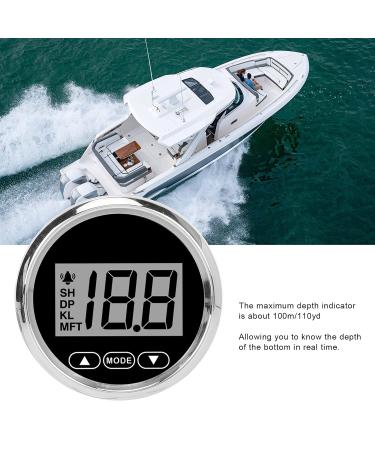

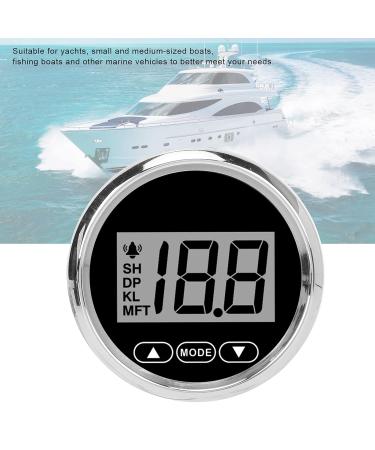

installation notes --------- drill a hole with a diameter of 52 mm (2 inches) in the cladding of your cabin and instrument board, and insert the instrument into the hole.The cladding corresponding to the instrument panel is marked with a lead and a small notch is brought in at this point to ensure that the instrument panel on the back of the instrument is at least 52 mm/2 inches.Wide application spectrum ---------- Suitable for yachts, small and medium-sized boats, fishing boats and other maritime vehicles to better meet their needs.You can be safe to buy and use.Comfortable installation -------------------, durable, good vibration strength, alarm function, flexible and easy operation.Application: Attach the measuring device to the dashboard of the center console and connect the power cable.Waterproof dial --------- The waterproofness of the dial is IP67 and the back is IP5.It can also be used for a long time in the cold sea environment.The maximum depth display is about 100 m / 110 yd, so you know the basic depth in real time.High-quality materials --------- Made from stainless steel 316l bezel and anti-fitting glass, it has an excellent anti-fitting performance and waterproof performance.high quality.It has durable, stable and robust functions.

Spezifikation: Artikeltyp: Tiefenmesser Material: Edelstahl 316L + Anti-Fog-Glas Installationsdurchmesser: Ca. F52 mm/2 Zoll Tiefenanzeigebereich: Ca. 100m Farbe der Hintergrundbeleuchtung: Weiß Arbeitsspannung: 9-32VDC Arbeitsstrom: =100mA Arbeitstemperatur: -30? bis +75? Lagertemperatur: -40? bis +85? Schutzgrad: IP67, die Rückseite ist IP5 Betrieb: A. Dieses Gerät funktioniert nur mit 12V-System, um die eingestellte Tiefe anzuzeigen. Normalerweise piept der Summer einmal, wenn er richtig angeschlossen wurde, und schalten Sie dann das Gerät ein. B. Tastenfeld „Modus“: Drücken Sie kurz das Tastenfeld „Modus“, um SH/DP/KL/UN umzuschalten. Halten Sie das Tastenfeld „Modus“ gedrückt, um den Monitor ein-/auszuschalten. Drücken Sie kurz die Tastatur „?““?“, um den gewünschten Wert einzustellen. Halten Sie die Tastatur „?“““?“ gedrückt, um die digitale Zunahme/Abnahme fließend zu halten. Parameter: SH: (Niedriger Alarm) Bereich: 0-0,6-19,9, wenn der Pegel nicht mehr als der Wert (SH) festgelegt ist, flackert das Symbol und der Summer piept die ganze Zeit. Bei SH=0 beträgt der Einstellbereich für den Alarmalarm nicht 0,6-19,9 Bereich: 1. Einheit „M“: 0-99 2. Einheit „FT“: 0-199 3. Einheit „F“: 0-49 Wenn der Pegel den angegebenen Wert überschreitet, piept der Summer zweimal Kielversatz (KL): Bereich: 1. Einheit „M“: 0-6.0 2. Einheit „FT“: 0-19,9 3. Einheit „F“: 0-3.3 Installationshinweise: 1. Nachdem Sie das Instrument in die Schalttafel eingebaut haben, schrauben Sie es mit dem Befestigungsring fest. 2. Schließen Sie die Drähte an und schließen Sie das Instrumentengehäuse direkt an die 12/24V-Stromversorgung an. 3. Führen Sie den Kabelbaum ein und befestigen Sie ihn fest auf dem Tisch. Verdrahtungsanleitung: Rotes Kabel zum Pluspol Orangefarbenes Kabel zur Hintergrundbeleuchtung Blaues Kabel zum Minus

Installationshinweise --------- Bohren Sie ein Loch mit einem Durchmesser von 52 mm (2 Zoll) in der Verkleidung Ihres Kabinen- und Instrumentenbretts, und führen Sie das Instrument in das Loch ein. Die der Instrumententafel entsprechende Verkleidung ist mit einem Vorsprung gekennzeichnet und an dieser Stelle eine kleine Kerbe einbringen, um sicherzustellen, dass die Instrumententafel auf der Rückseite des Instruments mindestens 52 mm/2 Zoll frei ist. Breites Anwendungsspektrum --------- Geeignet für Yachten, kleine und mittelgroße Boote, Fischerboote und andere maritime Fahrzeuge, um Ihre Bedürfnisse besser zu erfüllen. Sie können sicher sein, zu kaufen und zu verwenden. Bequeme Installation ---------- Bequeme Installation, langlebig, gute Vibrationsfestigkeit, Alarmfunktion, flexible und einfache Bedienung. Anwendung: Befestigen Sie das Messgerät am Armaturenbrett der Mittelkonsole und schließen Sie das Netzkabel an. Wasserdichtes Zifferblatt --------- Die Wasserdichtigkeit des Zifferblatts ist IP67 und die Rückseite ist IP5. Es kann auch in der kalten Meeresumgebung lange Zeit verwendet werden. Die maximale Tiefenanzeige beträgt etwa 100 m / 110 yd, sodass Sie die Grundtiefe in Echtzeit kennen. Hochwertige Materialien --------- Hergestellt aus Edelstahl 316L Lünette und Anti-Beschlag-Glas, hat es eine hervorragende Anti-Beschlag-Leistung und wasserdichte Leistung. hohe Qualität. Es hat langlebige, stabile und robuste Funktionen.

KIMISS Wasserdichter Digitaler Tachometer, 52 Mm / 2 Zoll Marine Tiefenmesser Reichweite 100 M / 110 Yd Weiße Hintergrundbeleuchtung Wasserdicht für Yachten Fischerboote
