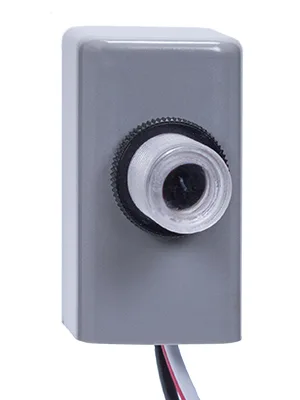

Intermatic EK4236S Select Grade Fixed Mount Electronic Photocontrol with Stem, Swivel and Side Lens

Regular Price: US$85.00

Special Price US$69.99

Availability: In stock

Category: Electronics Camera & Photo Lighting & Studio Lighting Mounting Hardware

Qty:

NightFox, photocontrols, photo control, photocell, photo cell, lighting control, EK4000 series

EK4036S

outdoor lighting, lighting control, pathway lighting, photocontrol, photo control, photocell

Specifications

UL Certified
Title 20 Compliant

Say Goodnight to LED Photocontrol Maintenance

NIGHTFOX EK4000 Series

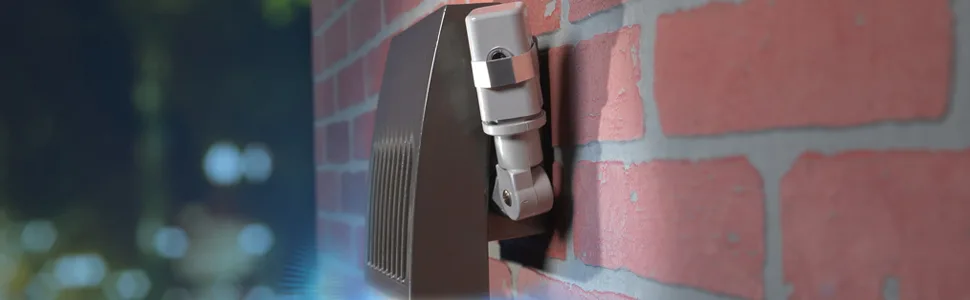

NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations.

Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
15-year design life
Exceeds 10,000 ON/OFF switching cycles
Fail ON mode
Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
255 J MOV surge protection element


	EK4036S	EK4136S	EK4236S	EK4336S	EK4736S
Photocontrol Style	Button	Stem Mount	Stem and Swivel Mount	In-Wall	Stem and Swivel Mount

Are you installing light fixtures with extended life expectations? Intermatic's electronic photocontrols are designed to match the long life of new LED lighting fixtures with a 10 to 20 year service life expectancy. This allows full realization of both the cost savings and benefits of maintenance-free lighting installations. The EK4236S Fixed Mount Electronic Photocontrol by Intermatic has been designed, tested and warrantied for long life. It has improved on/off switching with high quality relays and employs electronic components exclusively selected to meet extended life targets. Products are tested to full on/off lifecycles under tungsten, magnetic and electronic ballast/LED driver loads. Testing is done per NEMA 410 to ensure compatibility with today's array of electronic ballasts and LED drivers. The Intermatic brand assures you of peace of mind and trouble-free implementation. It has enhanced surge protection with 255J and 510J MOV components. It meets or exceeds ANSI C136.10/C136.24 and UL/CSA requirements. 105-305 VAC, 1000 W tungsten, 1800 VA magnetic ballast, 6 Amps electronic ballast, 1.5 fc turn on level, off/on ratio 1.5:1, fail mode: on, 6 inch wire length.

Ideal for single or multi-fixture HID and LED installations (up to 1650 W at 277 VAC). Exceeds 10,000 on/off switching cycles. Conformal coated PCB. DC relay with zero-crossing circuitry for extended life. Non-drift silicon light sensor with IR filter.

Certification: UL, Ansi. Maximum Switching Current: 6 Amps. Contact Current Rating: 6 Amps. Wattage: 1000 watts. Brand: Intermatic. Date First Available: September 9, 2013. Best Sellers Rank: #118 in Photographic Lighting Mounting Hardware. Customer Reviews: 4.4 out of 5 stars 68 ratings 4.4 out of 5 stars. : B00VNSI8S4. Warranty Description: ?See Manf Description. Batteries Required?: ?No. Batteries Included?: ?No. Included Components: ?EK4236S. Certification: ?UL, Ansi. Measurement System: ?Imperial. Item Package Quantity: ?1. Wattage: ?1000 watts. Color: ?Gray. Size: ?Intermatic. Is Discontinued By Manufacturer: ?No. Item model number: ?EK4236S. Product Dimensions: ?1.3 x 1.24 x 2.25 inches. Item Weight: ?4 ounces. Part Number: ?EK4236S. Manufacturer: ?Intermatic.
