GM CLIMBING 32kN Double Tie-in Hitch Pulley Self-lubricating Bushing





Regular Price: US$75.00

Special Price US$59.99

Availability: In stock

Category: Sports & Outdoors Outdoor Recreation Climbing Belay & Rigging Pulleys



Be Safe - We Directly Ship From Country of Origin

BE SAFE
WE ONLY SHIP
FROM OFFICIAL SUPPLIERS

From United States
To International
In 5-10 Days
US$19.99 Shipping Fees for any Order


GRAND SELECTION

Think of it and most probably we have it among our grand selection of products!



AMAZING PRICES

Get ready for the amazing and best Supps prices ever!



FIXED RATE DELIVERY

Get your order anywhere on this planet within 5-10 days with a fixed rate of $19.99 (no matter the size of your order)








climbing hitch pulley

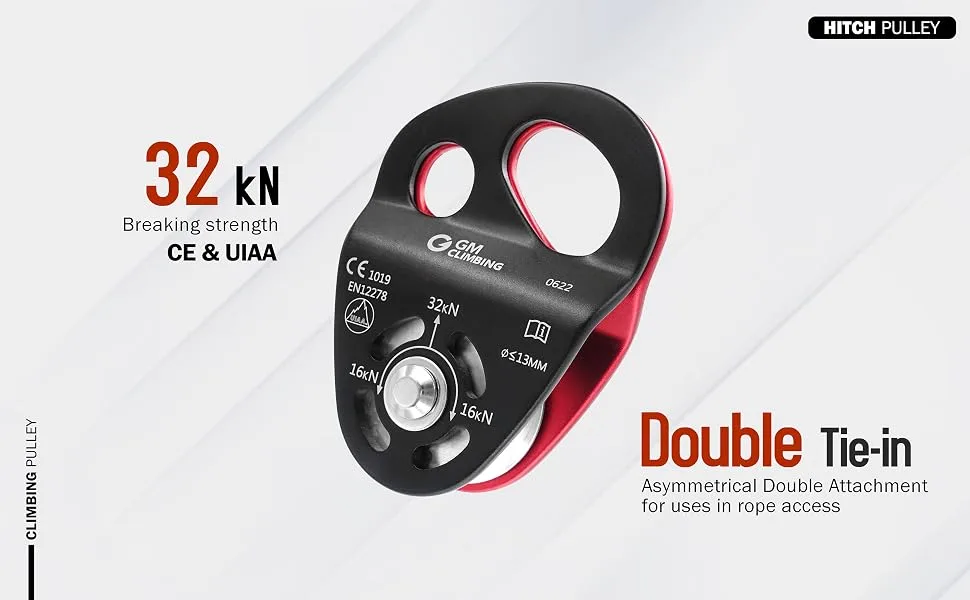

GM CLIMBING 32kN Double Tie-in Hitch Pulley

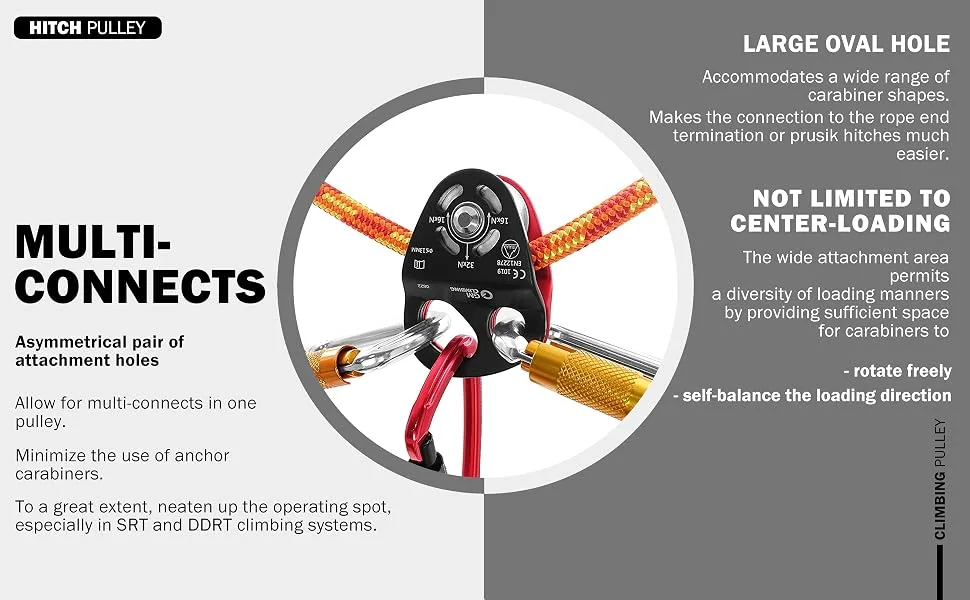

Features asymmetrical double attachment holes, designed for a neat operating spot and to reduce the use of connectors, especially when tending slack in SRT and DDRT climbing systems.

Technical Specs

Dimension 71.4 x 95 x 27.5mm - 2.8 x 3.7 x 1.1in
Sheave Diameter 40mm / 1.57in
Net weight 147g - 5.2Oz
Side Plate Material Aluminum Alloy
Sheave Material Aluminum Alloy. Never slide a metal cable/rope over this pulley!
Max. Rope Compatibility <13mm / 0.51in
Min. Breaking Strength 32kN / 7200lbs
Certificate(s) CE 1019 EN 12278 / UIAA
HITCH PULLEY
hitch pulley
GM1048rdbkball 150x300 GM1043 A+ GM1010 150x300 GM1045ball 150x300 GM1047 150x300 GM1041black 150x300
Double Tie-in Hitch Pulley Prusik Minding Micro Pulley Fixed Micro Pulley Swing Cheek Micro Pulley Prusik Minding Micro Double Pulley Large Rescue Single Pulley
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Size 3.7 x 2.8in 3.19 x 2.22 in 3.2 x 1.74 in 2.89 x 1.76in 3.94 x 2.4 in 4.8 x 3.25in
Sheave Single Single Single Single Double Single
Breaking Strength 32kN / 7200lbf 20kN / 4500lbf 29kN / 6500lbf 30kN / 6700lbf 40kN / 8990lbf 32kN / 7100lbf
Net weight 5.2Oz / 147g 3.7Oz / 105g 3.05Oz / 86.5g 2.7Oz / 78g 6.35Oz / 180g 8.7Oz / 247g
Max. diameter of rope 1/2in or 13mm 1/2in or 13mm 0.47in or 12mm 0.47in or 12mm 0.47in or 12mm 5/8in or 16mm
Certified CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA
Swing cheek
Ball bearing

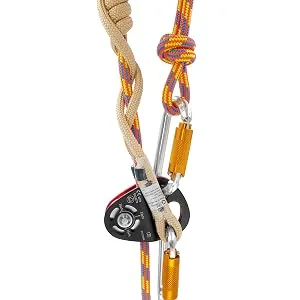

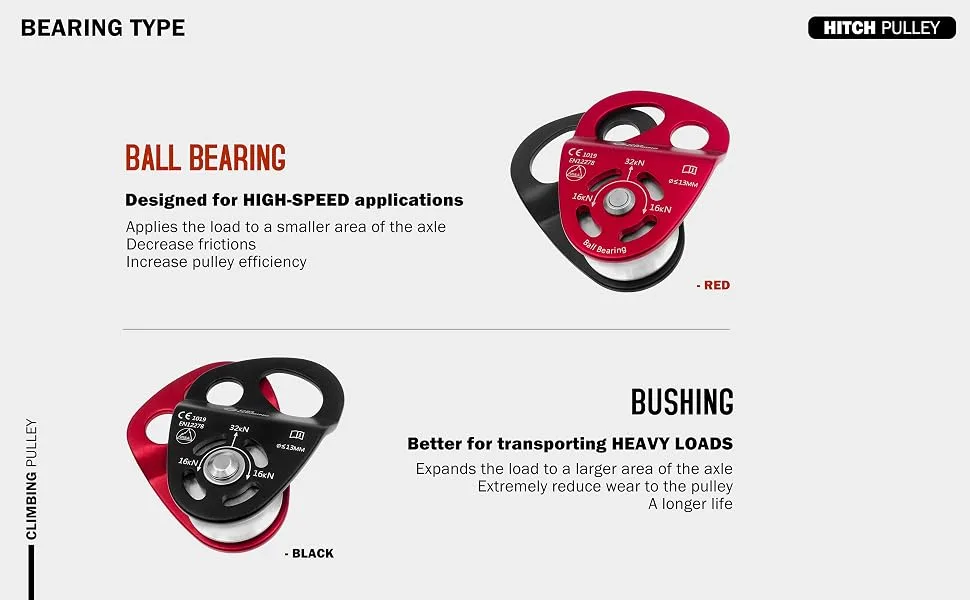

Available in both ball bearing and self-lubricating bushing to fit your applications. Ball bearing provides less contact area with axle and produces less friction, excellent for uses of high-speed rotation. Self-lubricating bushing is more efficient for transporting heavy loads. EASY OPERATION! Moving side plates allows for the easy installation of the pulley in the middle of ropes. The pulley can work with most shapes of carabiners due to the closing style of side plates. Free rotations of any kinds of connectors in the large attachment hole. SAFETY MICRO CLIMBING PULLEY! This hitch pulley is both CE and UIAA certified. Rated at 32kN high breaking strength, the pulley can be installed to advance friction hitches in most rope climbing systems or working-positioning lanyards, and also work as a functional redirect pulley in rigging or most mechanical advantage systems while keeping a lightweight and compact profile. It's universally compatible with ropes up to 13mm dia. MULTI-CONNECTIONS in SRT and DDRT! The Double-tie hitch pulley efficiently advances VT prusik hitch or Distel hitch in SRT or DDRT systems. Asymmetrical pair of holes permit the attachment of multiple anchor carabiners from different directions at the same time. Rope end termination, prusik hitch, and the anchor carabiners in climbing systems can be attached together to the hitch pulley, neatening up the spot and simplifying the operation. 32kN Double Tie-in Hitch Pulley by GM CLIMBING features asymmetrical double attachment holes, designed for a neat operating spot and to reduce the use of connectors, especially when tending slack in SRT and DDRT climbing systems.

Date First Available: July 15, 2022. Best Sellers Rank: #319,299 in Sports & Outdoors. Customer Reviews: 4.2 out of 5 stars 14 ratings 4.2 out of 5 stars. : B0B6NFMB8N. Part Number: ?GM1048bkrdUS. Manufacturer: ?GM CLIMBING. Color: ?Self-lubricating Bushing. Brand Name: ?GM CLIMBING. Package Weight: ?0.17 Kilograms. Item Package Dimensions L x W x H: ?6.5 x 5.04 x 1.42 inches.
