GM CLIMBING 20kN Micro Prusik Minding Pulley 1/2" CE UIAA Certified Red (Pack of 2)





Regular Price: US$76.99

Special Price US$64.99

Availability: In stock


Supplier: GM CLIMBING

Category: Sports & Outdoors Outdoor Recreation Climbing Belay & Rigging Pulleys



Be Safe - We Directly Ship From Country of Origin

BE SAFE
WE ONLY SHIP
FROM OFFICIAL SUPPLIERS

From United States
To International
In 5-10 Days
US$19.99 Shipping Fees for any Order


GRAND SELECTION

Think of it and most probably we have it among our grand selection of products!



AMAZING PRICES

Get ready for the amazing and best Supps prices ever!



FIXED RATE DELIVERY

Get your order anywhere on this planet within 5-10 days with a fixed rate of $19.99 (no matter the size of your order)








GM1043 banner 2

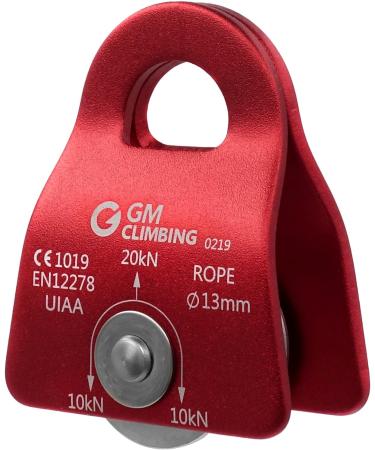

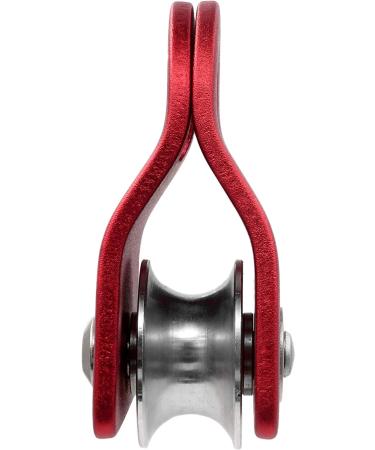

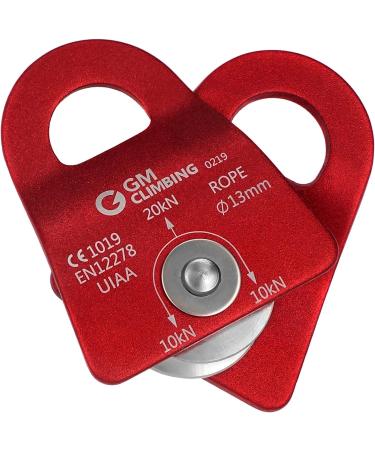

GM CLIMBING - Micro Prusik Minding Pulley 20kN

Function pulley to be integrated with brake hitches and build progress capture on haul system.

Installed to tend slack and advance hitches in Ddrt climbing or work-positioning.

Making efficient redirects in bear rigging, home pulling exercise devices, and more to explore.

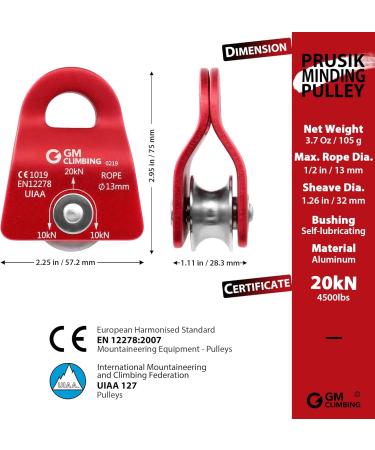

Technical Specs

Breaking strength 20 kN / 4500 Lbs
Net weight 3.7 oz / 105 g
Dimension 2.95x2.25x1.11 in / 75x57.2x28.3 mm
Max. Rope Dia. 1/2 in / 13 mm
Sheave Dia. 1.26 in / 32 mm
Sheave Material Aluminum Alloy. Never slide steel cable over the pulley with aluminum sheave!
Sheave bearing Self-lubricatin Bushing
Certificate(s) CE 1019 EN 12278:2007; UIAA 127: Safety Label No. CHN 16-4200
GM1048rdbkball 150x300 GM1010 150x300 GM1045ball 150x300 GM1045black 150x300 GM1047 150x300 GM1041black 150x300
Double Tie-in Hitch Pulley Fixed Micro Pulley Swing Cheek Micro Pulley Swing Cheek Micro Pulley Prusik Minding Micro Double Pulley Large Rescue Single Pulley
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Size 3.7 x 2.8in 3.2 x 1.74 in 2.89 x 1.76in 2.89 x 1.76 in 3.94 x 2.4 in 4.8 x 3.25in
Sheave Single Single Single Single Double Single
Breaking Strength 32kN / 7200lbf 29kN / 6500lbf 30kN / 6700lbf 30kN / 6700lbf 40kN / 8990lbf 32kN / 7100lbf
Net weight 5.2Oz / 147g 3.05Oz / 86.5g 2.7Oz / 78g 2.7Oz / 78g 6.35Oz / 180g 8.7Oz / 247g
Max. diameter of rope 1/2in or 13mm 0.47in or 12mm 0.47in or 12mm 0.47in or 12mm 0.47in or 12mm 5/8in or 16mm
Certified CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA CE EN12278 / UIAA
Swing cheek ✓ ✓ ✓ ✓ ✓
Ball bearing ✓ ✓ ✓ ✓
GM8111 150x300 GM8211 150x300 GM8213 150x300 GM8003 150x300 GM8002100black 150x300 GM8001 150x300
8mm VT Prusik Cord 8mm VT Prusik Cord - Kevlar Blended 8mm VT Prusik Cord 6mm Accessory Cord 8mm Accessory Cord 11.5mm Rigging Line
Diameter 5/16in or 8mm 5/16in or 8mm 5/16in or 8mm 1/4in or 6mm 5/16in or 8mm 7/16in or 11.5mm
Length 30in 30in 32in 20/50/100ft 20/50/100ft 30/50/100/160ft
Breaking Strength Basket: 29kN / 6500lbf Basket: 29kN / 6500lbf Basket: 30kN / 6750lbf 9kN / 2023lbf 17kN / 3820lbf 30kN / 6700lbf
Construction Double Braid Double Braid Double Braid Double Braid Double Braid Double Braid
Material High Tenacity Polyester 50% Kevlar & 50% Polyester Sheath - Polyester Core 100% Technora sheath - Nylon core High Tenacity Polyester High Tenacity Polyester Polyester Sheath - Nylon Core

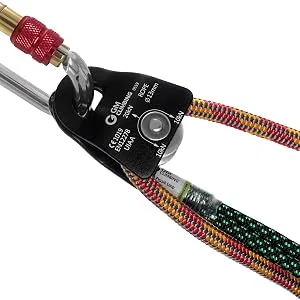

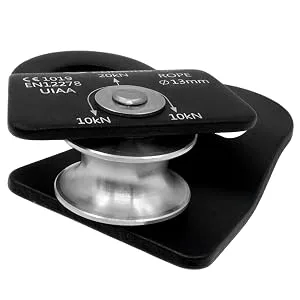

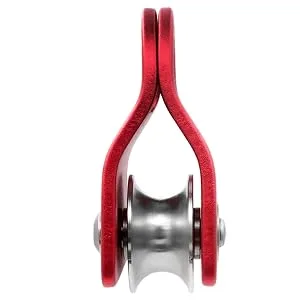

Smooth rotation due to the sheave being mounted with self-lubricating bushing that is efficient for transporting heavy loads. Most seen its functions in haul systems, tending hitches in climbing techniques. Also as an efficient general-purpose pulley for daily use, DIY pulley rope fitness home gym, suspending your bike in the garage, tensioning system for you slackline, and more. Prusik Minding! The pulley is designed to be with flat bottom to side plates, which makes a PMP (prusik minding pulley) to be integrated into the progress capture on the haul system, and prevent brake hitches to be sucked into the pulley, for a more efficient haul. Palm-size pulley in lightweight of 3.7 oz. The micro pulley is easy to use with only one hand. Mobile side plates rotate freely around the axle and it's convenient to install the pulley anywhere on the rope. The pulley accommodates carabiners of most shapes since side plates are curved to stay fully close against each other on the top. Quality-made climbing pulley, with 20kN breaking strength [5kN higher than required 15kN by CE and UIAA], to build up efficient pulley mechanical advantage systems: haul your partner out of the crevasse - personal rescue, rig gears or heavy loads when mountaineering, pull out a stranded car/ boat, haul food and stuffs out of reach when camping - bear rigging. GM CLIMBING Micro Prusik Minding Pulley (PMP), rated at 20kN/4500lbs MBS, both CE and UIAA certified, compatible with ropes up to 1/2 in / 13mm. Function pulley installed on ropes and clipped to tend hitch slacks in Ddrt climbing or work-positioning. A day-to-day use pulley in riggings, integrated with prusik hitches to build progress capture on haul system, making efficient redirects in bear rigging, home pulling exercise devices, and more to explore.
