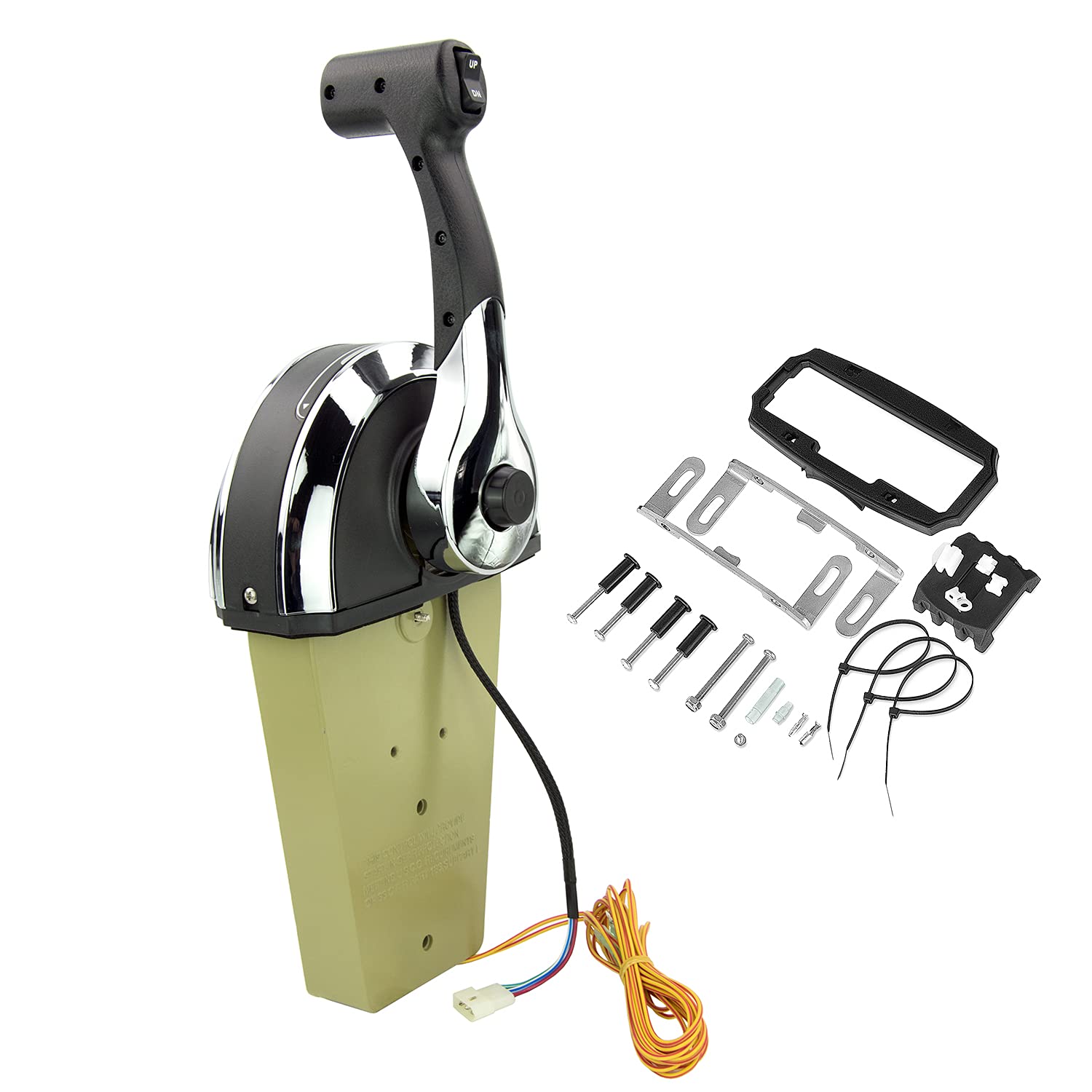

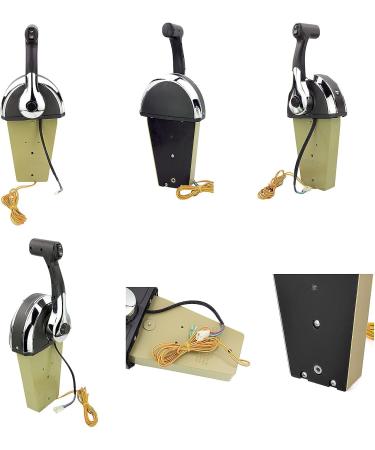

Item Manufacturer Part Number: 8M0059686 Item Dimensions (L x W x H): 17.9 inch x 7.5 inch x 4.5 inch (45 x 19 x 11.5cm) Item Weight: 7.5lb 3.4kg Package Dimensions (L x W x H): 14 inch x 13.7 inch x 5.5 inch (37 x 35 x 14cm) assured: 1 Year Feature: The console mount remote control is for a single outboard, and the part number is 8M0059686 8M0060783. Made of high quality iron material, high temperature resistance for a long lifespan. It comes with 2 ft. trim harness for easy installation; For a single outboard and is furnished with single trim switch for trim and trailering; With the traditional 3 blade connector The item requires an ignition choke assembly when you install it GEN II throttleshift cables design Easy to use Fast Idle Button Smooth Forward Reverse Power Trim Tilt Switch Friction Adjustment Fit for: All current mariner outboards with intergrated trim Newer force outboards 40 hp Package Included: 1 x Outboard Single Console Remote Control 1 x 2 FT trim harness 1 x instructions Mounting fittings all included We Provide 100percent Perfect Customer Service, If There is Any Question, Please Contact us.

Safety: The rope can be connected to the user's clothes or body, which can stop the ignition when the user accidentally leaves the tiller. Improved Throttle & Shift Control: With control handle in Neutral and fast idle feature not activated, move control handle to Forward gear or Reverse gear position. Continue movement of control handle in same direction to open (advance) throttle. Friction Adjustment Nut: The nut can be adjusted to increase or decease the friction on the control handle, preventing creep on the remote control handle. By turning in or out the throttle friction screw of the remote control box, the stiffness of the control lever can be adjusted. Turning the adjusting screw to the right makes the control lever stiff to turn, and vice versa. Power Trim & Tilt Switch: The power trim and tilt switch is attached to the control lever grip. Used to trim or raise driver unit for trallering, launching, beaching, or shallow water operation. Pushing it UP trims up and tilts up the engine and pushing it DOWN trims down and tilts down the engine. Fast Idle Button:The fast idle button can be used to advance throttle without shifting into gear. With control lever in Neutral, push on fast idle button(cover) to open throttle for starting and warm-up.

Mounting Type: Engine. Recommended Uses For Product: For Inflatable Boats, For Fishing Boats. Item Weight: 3.4 Kilograms. Brand: Generic. Date First Available: May 6, 2021. Best Sellers Rank: #405,547 in Sports & Outdoors. Customer Reviews: 3.7 out of 5 stars 12 ratings 3.7 out of 5 stars. : B094D1QBC1. Manufacturer: ?Newmaix. Brand Name: ?Generic. Item Weight: ?3.4 Kilograms. Item Dimensions LxWxH: ?17.9 x 7.4 x 4.5 inches. Package Weight: ?3.8 Kilograms. Item Package Dimensions L x W x H: ?14.41 x 13.62 x 6.02 inches.
