Forbestcy Ebike LCD Display Control Unit Replacement 500C P850C 860C 750C-ble DPC18 Backup 5 Pin Female Plug for Bafang BBS01 BBS02 BBSHD Motor Kit(Com.Protocol UART)

Regular Price: US$125.00

Special Price US$99.99

Availability: In stock

Supplier: Forbestcy

Category: Sports & Outdoors Outdoor Recreation Outdoor Recreation Accessories Electronics & Gadgets Cycling Computers

Qty:

Frequently bought together :

Price for all selected :

US$129.98

500C/P850C/860C/DPC18 can work with the Bafang BBS01, BBS02 & BBSHD mid drive/Front/Hub motor, But 750C-ble can only suit BAFANG mid motors.

500C/P850C/860C/DPC18 can work with the Bafang BBS01, BBS02 & BBSHD mid drive/Front/Hub motor,
But 750C-ble can only suit BAFANG mid motors, not suit hub/front motor.
The display is 5 Pin female, yours must be 5 pin male. Please help to make sure about this.
If your Bafang motor is front or hub motor, you need to make sure about your controller is Bafang agreement. If you are still not sure, it is better to send the seller picture to confirm it.
The 750C bluetooth function display can only work with the iPhone cellphone.

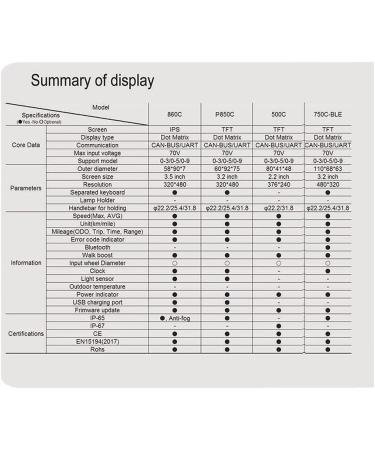

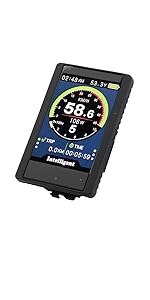

	DPC18	860C	750C Bluetooth	P850C	500C
Voltage	36V/43V/48V	36V/43V/48V/60V	36V/43V/48V	36V/43V/48V/60V	36V/43V/48V/60V
Speed Limited- 99KM/H (free to set)	✓	✓	✓	✓	✓
Holder(MM)	F22.2/25.4/31.8	F22.2/25.4/31.8	F22.2/25.4/31.8	F22.2/25.4/31.8	F22.2
Password		1919	1919	1919	1919
PAS	0-5	0-9		0-9	0-9
Brightness	5	5	5	5	5
Headlight Indicator	✓	✓	✓	✓	✓
USB Charger DC5V500mA	✓	✓	✓	✓	×Do not have

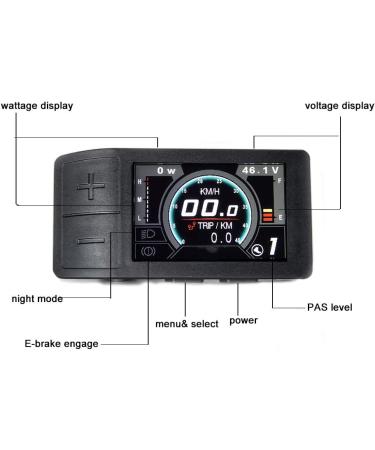

Example of function description

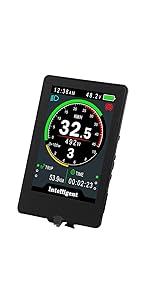

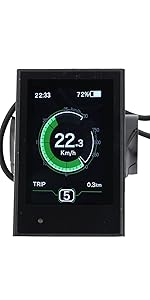

DPC18 Display 1. Facilitate the implementation of the model 2. Two riding modes: ECO (energy saving) / SPORT (sports) 3. Smart power display: Provide stable power prompts through optimized algorithms 4. Speed display: including SPEED, MAXS, AVG 5. Light-sensitive headlight automatic control: automatically turn on/off the instrument backlight and headlights when the external light changes 6. 5 levels of backlight brightness adjustment: 10% is the darkest, 100% is the brightest	860C display 1. Suitable for low temperature,Max -20. 2. High-contrast 3.5inch IPS colorful matrix screen. 3. Ergonomic external button design, easy to operate. 3. Speed display: AVG SPEED, MAX SPEED, SPEED(Real-time). 4. Kilometer / Mile: Can be set according to customers' habits. 5. Smart battery indicator: Provide a reliable battery indicator. 6. Mileage indicator: Odometer/Trip distance/ Clock/ Riding time. 7. Power/Current indicator: real time power indicator or Current. 8. Error code indicator. 9. Light sensor(Optional )Software upgraded: Software can be upgraded through UART.	750C bluetooth display 1. Suitable for low temperature,Max -20. 2. High-contrast 3.2inch IPS colorful matrix screen. 3. Ergonomic external button design, easy to operate. 4. Speed display: AVG SPEED, MAX SPEED, SPEED (Real-time). 5. Kilometer / Mile: Can be set according to customers' habits. 7. Mileage indicator: Odometer/ Trip distance/ Clock/ Riding time. 8. Power indicator: real time power indicator, digital or analog. 9. 6km walking 10. Bluetooth & Mobile navigation/Phone battery indicator/Error code indicator. Software upgraded: Software can be upgraded through UART.	P850c display 1. Suitable for low temperature,Max -20. 2. High-contrast 3.5inch IPS colorful matrix screen. 3. Ergonomic external button design, easy to operate. 3. Speed display: AVG SPEED, MAX SPEED, SPEED(Real-time). 4. Kilometer / Mile: Can be set according to customers' habits. 5. Smart battery indicator: Provide a reliable battery indicator. 6. Mileage indicator: Odometer/Trip distance/ Clock/ Riding time. 7. Power/Current indicator: real time power indicator or Current. 8. Error code indicator. 9. Light sensor(Optional )Software upgraded: Software can be upgraded through UART.

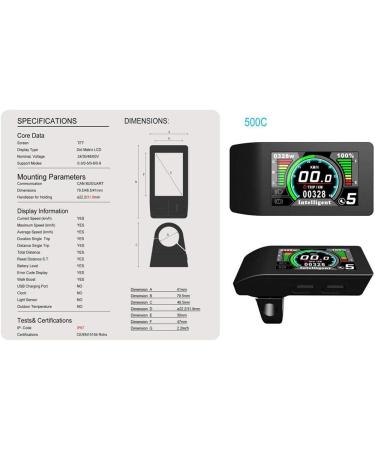

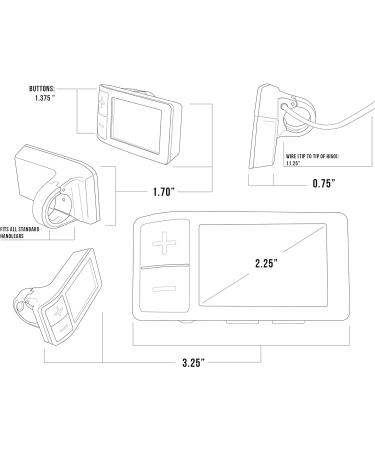

Size: 1.7*3.25"

Smart display for BAFANG

Only Compatible with Bafang Motor BBS01, BBS02 BBS03 and BBSHD.
IP-Code IP65 Certifications CE/EN15194 Rohs

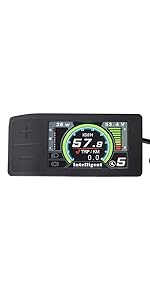

500c does not have the charger port.

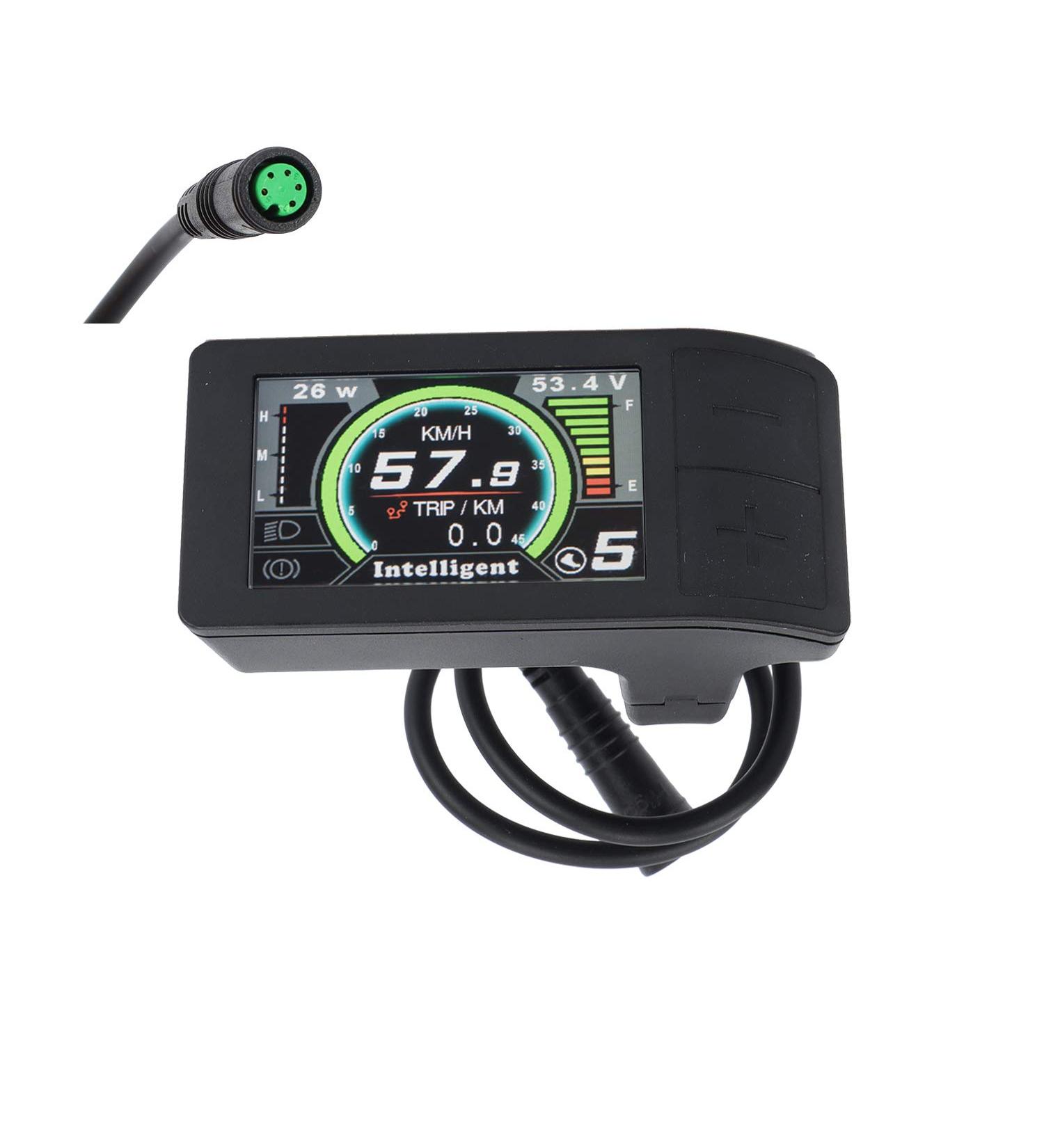

5 pin female connector

Yours need to be 5 pin male connector

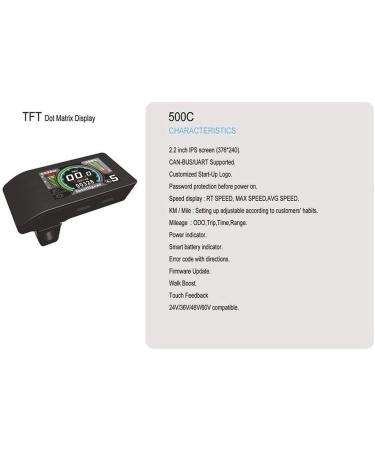

1. Suitable for low temperature,Max -20.
2. High-contrast 3.2inch IPS colorful matrix screen.
3. Ergonomic external button design, easy to operate.
4. Speed display: AVG SPEED, MAX SPEED, SPEED (Real-time).
5. Kilometer / Mile: Can be set according to customers' habits.
6. Smart battery indicator: Provide a reliable battery indicator.
7. Mileage indicator : Odometer/Trip distance/Riding time.
8. Power indicator: real time power indicator, digital or analog.
9. Speed limit value indicator.

10.Error code indicator.
11.Software upgraded: Software can be upgraded through UART.

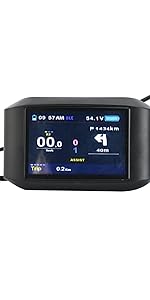

The 750c Bluetooth display can not suit for Bafang hun/front motor. That means, if you want to buy the 750c Bluetooth display, your motor should be Bafang mid motor. If your bike is not Bafang motor, our display can not suit. Ships with screen protector on display to prevent scratches, peel off before use. The 750C bluetooth function display can only work with the iPhone cellphone. Uses universal error codes commonly found on the displays (no more guessing). Suitable for low temperature, Max -20?. Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time). Kilometer / Mile : Can be set according to customers’ habits. Installing the colorful cycling computer can help to easy read the speed/time/Battery level, distance, power and many useful information when riding. On the screen everything is very clear, even in direct sunlight when riding. Automatic back light. The Forbestcy LCD Display 5 Pin Female Plug is for Bafang electric bike mid motor BBS01 BBS02 BBS03 and BBSHD. All can work with Bafang hub/ front motor too, except the 750c bluetooth display.

Mounting Type: Handlebar Mount. International Protection Rating: IP65. Display Type: LCD. Screen Size: 1.9 Inches. Color: 500C. Brand: Forbestcy. Date First Available: November 14, 2020. Best Sellers Rank: #288,768 in Sports & Outdoors. Customer Reviews: 3.8 out of 5 stars 94 ratings 3.8 out of 5 stars. : B08NG87VTV. Size: ?Small. Part Number: ?Display for BAFANG. Manufacturer: ?Happyoutside. Color: ?500C. Warranty Description: ?1 Year. Brand Name: ?Forbestcy. Package Weight: ?0.08 Kilograms. Item Package Dimensions L x W x H: ?3.94 x 3.39 x 2.17 inches.
