DNM Damping 3 System Mountain Bike Air Rear Shock Rebound/Lock Out/Air Pressure Adjustable AL 7005 Shark/AL 6061 Shock Body 165mm (6.5") x 35mm 190mm (7.48") x 50mm 200mm (7.87") x 55mm Gold Eye to Eye 200mm 7.87", 55mm Travel

Regular Price: US$215.00

Special Price US$179.99

Availability: In stock

Supplier: DNM

Category: Sports & Outdoors Sports Cycling Parts & Components Suspension Rear Shocks

Qty:

Frequently bought together :

Price for all selected :

US$239.98

Bicycle Storage Wall Racks
Bicycle Storage Floor Racks
CyclingDeal Mats
Cycling Shoes Adapters
Pedals & Toe Cage Adapters

DNM Mountain Bike Air Rear Shock With Lockout 165 190 or 200mm

Please Watch The Video In The Listing For How To Choose And Install The Shock.

FEATURES: This DNM shock features: Adjustments rebound , air pressure adjustable and lockout (Please note: The shock could NOT be completely locked.) Damper shaft: Dark hard-anodized AL-7075, Ø 10 mm (0.39 inch). Shock Body: Dark hard-anodized AL-6061. Riding style XC /TRAIL, Available size: Eye to eye x travel 165 x 35 mm ( 6.50 x 1.38 inch) 190 x 50 mm ( 7.83 x 1.97 inch) 200 × 55 mm ( 7.87 × 2.17 inch) Weight: 0.4 KG(0.88 Ib) for 165 mm Length.

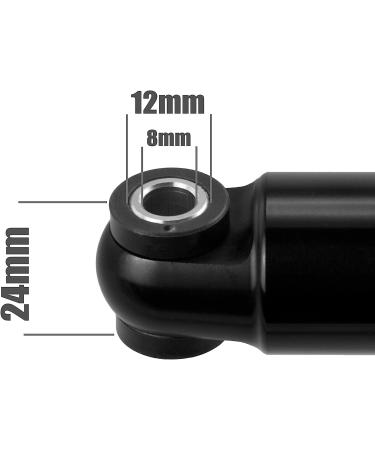

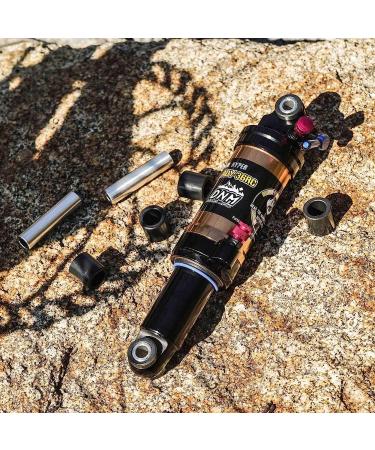

EXTRA BUSHINGS INCLUDED: Top bushing size: 8mm x 24mm; bottom bushing size: 8mm x 24mm and extra bushing 8mm x 50mm length. We have included an additional set of bushings for easier installation, please see 2nd picture.
QUALITY: Air shock is much lighter than coil shock. This is a great upgrade from the old shock. It is precisely CNC machined to ensure no air or oil leaking.
BAROMETRIC RECOMMENDATION; Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi. Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi. Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi. Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi. Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi. Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi.


Lock Out Using lock out feature when you are riding on flat road. Please note: "Lock Out" does NOT mean completely solid.	A Set Of Bushings You need to modify (Cut) the bushings to fit your bike.	Performance The bike will be lighter and looks beautiful with air shock installed.


	DV22AR	DV-22	AO-38RL-P
Shock Type	Coil	Coil	Air
Rebound Adjustment	✓	X	✓


	AO-38RC	AO42AR	AOY-30RC
Shock Type	Air	Air	Air

DNM QUALITY: ORDER NOW, WORRY FREE! Made in Taiwan We're So Confident About Our Product Quality That If You Have Any Product Issues, We’re Very Happy To Either Provide A Refund Or A Replacement On Your Purchase! We’re Also Here To Support You If You Have Any Questions Or Queries, Please Get In Touch And We’ll Gladly Help. BAROMETRIC RECOMMENDATION; Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi.Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi.Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi.Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi.Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi.Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi. FUNCTIONAL; Rebound Adjustment Knob +direction Rotation Increase Damper (Slow),- Direction Rotation, Decrease Damper (Fast). Compression Adjuster + Direction Rotation Lock-out,- Direction Rotation Open Up.main Air Chamber Supply Air Pressure According To Pressure Meter. EXTRA BUSHING INCLUDES: Top Busing Size 8mm x 24mm Bottom Bushing Size 8mm x 24mm, Includes extra bushing and hardware 8mm x 50mm Length. We Have Included An Additional Set Of Accessories To Meet The Different Size Requirements Of Some Customers Please see 2nd Pictures. PRODUCT SPECIFICATION: Adjustments Rebound / Lockout / Air Pressure Adjustable, Damper shaft Dark hard-anodized AL-7075 Ø 10 mm (0.39 inch) shaft. Dark hard-anodized AL-6061 shock body.Riding style XC /TRAIL, Available Size Eye to Eye x Travel 165 x 35 mm ( 6.50 x 1.38 inch) 190 x 50 mm ( 7.83 x 1.97 inch) 200 × 55 mm ( 7.87 × 2.17 inch) Weight: 0.4 KG(0.88 Ib) for 165 mm Lenght.

Power Source: Handheld. Item Dimensions LxWxH: 1.97 x 2.36 x 8.66 inches. Item Weight: 0.87 Pounds. Brand: DNM. Color: Gold. Date First Available: December 18, 2014. Best Sellers Rank: #46,065 in Sports & Outdoors. Customer Reviews: 4.5 out of 5 stars 1,415 ratings 4.5 out of 5 stars. : B00R5OA7HA. Size: ?Eye to Eye 200mm 7.87", 55mm Travel. Part Number: ?AOY-36RC-200. Manufacturer: ?DNM. Color: ?Gold. Brand Name: ?DNM. Item Weight: ?0.87 Pounds. Item Dimensions LxWxH: ?1.97 x 2.36 x 8.66 inches. Package Weight: ?0.43 Kilograms. Item Package Dimensions L x W x H: ?8.5 x 3 x 2 inches.
