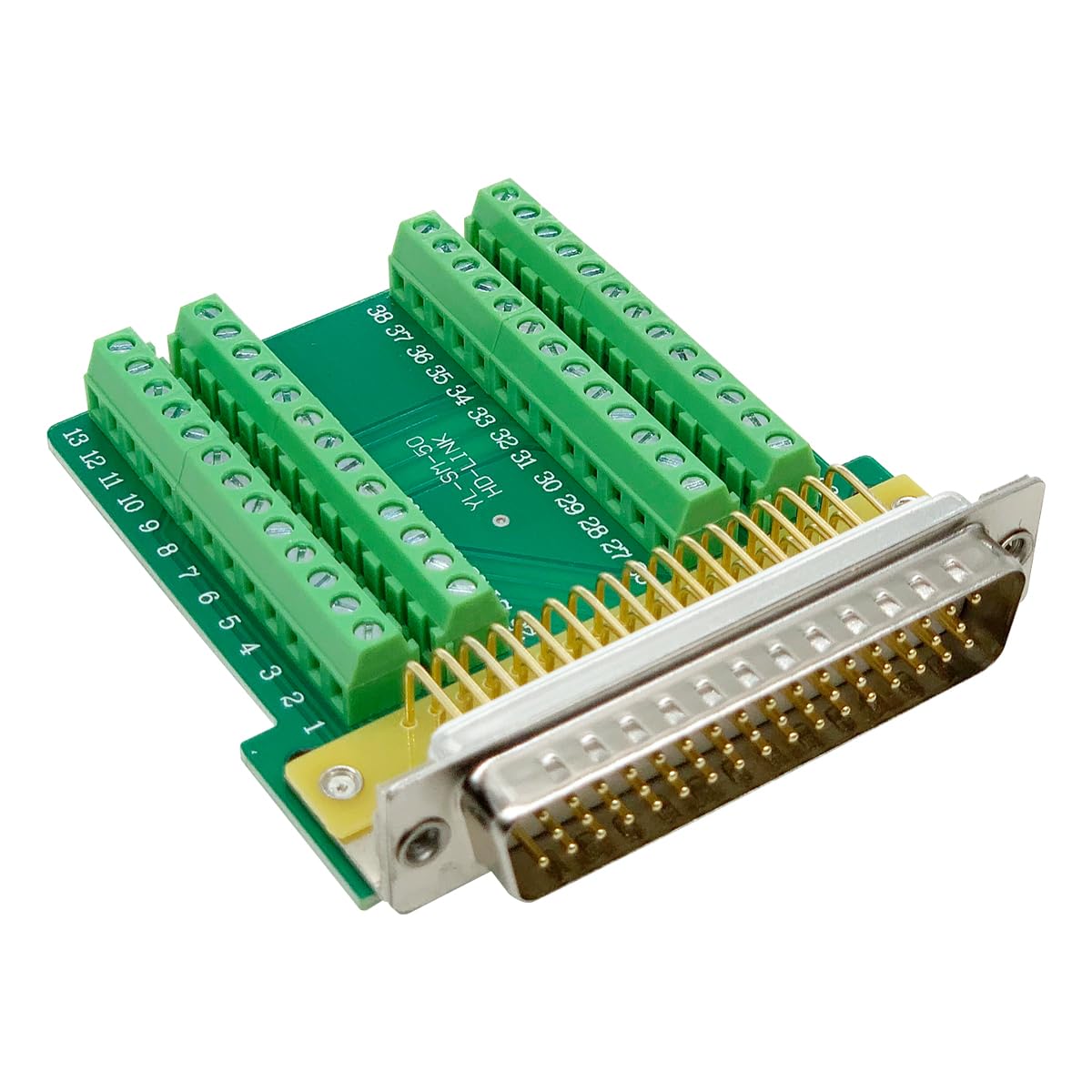

DB50 Solderless Connector, D-SUB 50-pin Port Terminal Adapter HDB50 Breakout Board with nuts (Male)

Regular Price: US$55.00

Special Price US$44.99

Availability: In stock

Category: Electronics Hi-Fi & Home Audio Home Audio Accessories Connectors & Adapters

Qty:

Frequently bought together :

Price for all selected :

US$84.98

These DB50 Male Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.

Technical Specifications:Name: DB50 solderless modulePlug type: MaleConnector material: Pure copper nickel plated jointsContact Material: Gold-plated copper solid needleTerminal block diameter: 0.08'' / 2mmPitch: 0.15'' / 3.81mmCable Specification: 0.15mm²~1.5mm²/26-15 AWGStrip length: 5-6mmTorque: 0.2Nm (1.7Lb-In.)Rated voltage: 24VRated current: 3AApplication: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.Size: 71.5 mm×68 mm×17 mm /2.81″×2.68″×0.67″Package includes:1 x DB50 Male Solderless Connector

D-SUB DB50 connector. It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box,

barcode machine, industrial instrumentation and other equipment for communication.

Pitch:3.81mm screw terminal block. Wire range: 26-15AWG. This adapter is suitable for quick wiring of controllers and data acquisition cards with DB50 interface.
