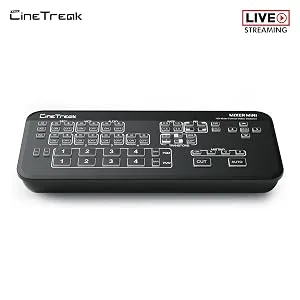

Cinetreak Mixer Mini Multi-Format Video Mixer Switcher 4 HDMI Inputs with USB 3.0 Video Capture PIP Chroma key Live Streaming Video Switcher

Regular Price: US$485.00

Special Price US$399.99

Availability: In stock

Supplier: CINETREAK

Category: Electronics Home Cinema & TV & Video Accessories Video Converters

Qty:

Mixer Mini Video Switcher Detailed Disruption

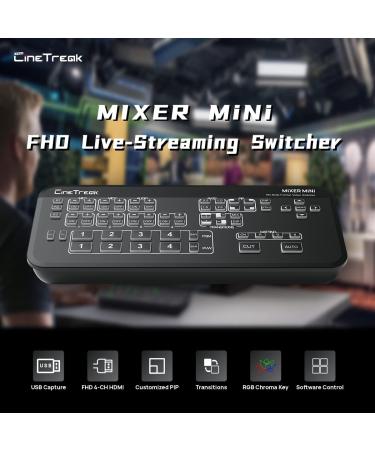

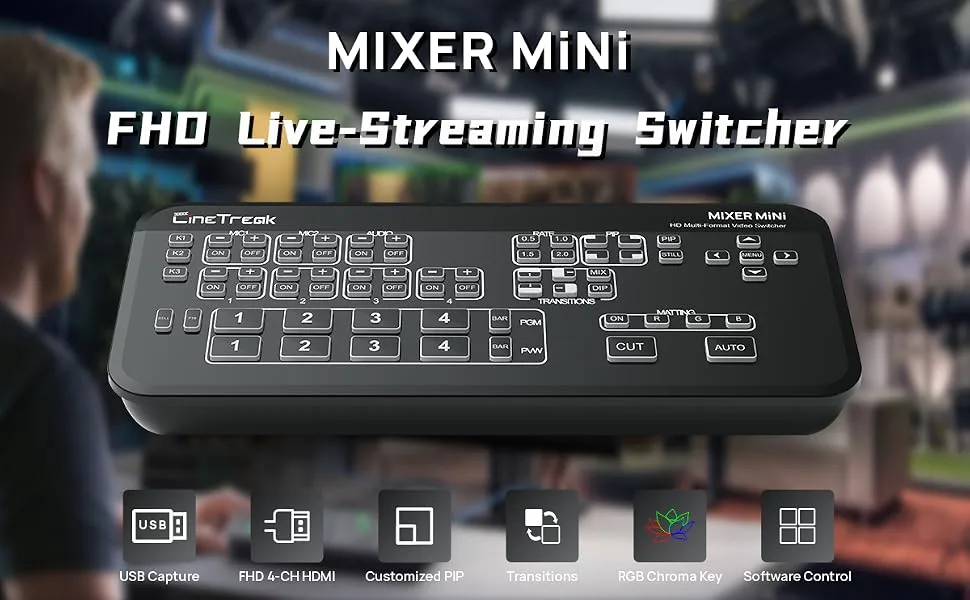

Cinetreak Mixer mini livestreaming video mixer switcher

Cinetreak is a live streaming tools manufacturer,we focused on consumer & professional live broadcast equipment such as Video switcher ,video capture device ,signal generator,4K broadcasting station and Recorder/Encorder.

Cinetreak factory established in 2014, has rich experience in sound card, microphone, matrix, HDMI, and SDI products.

Our mission is to provide customers with one-stop live broadcast solutions with professional products and cost-effective cost.

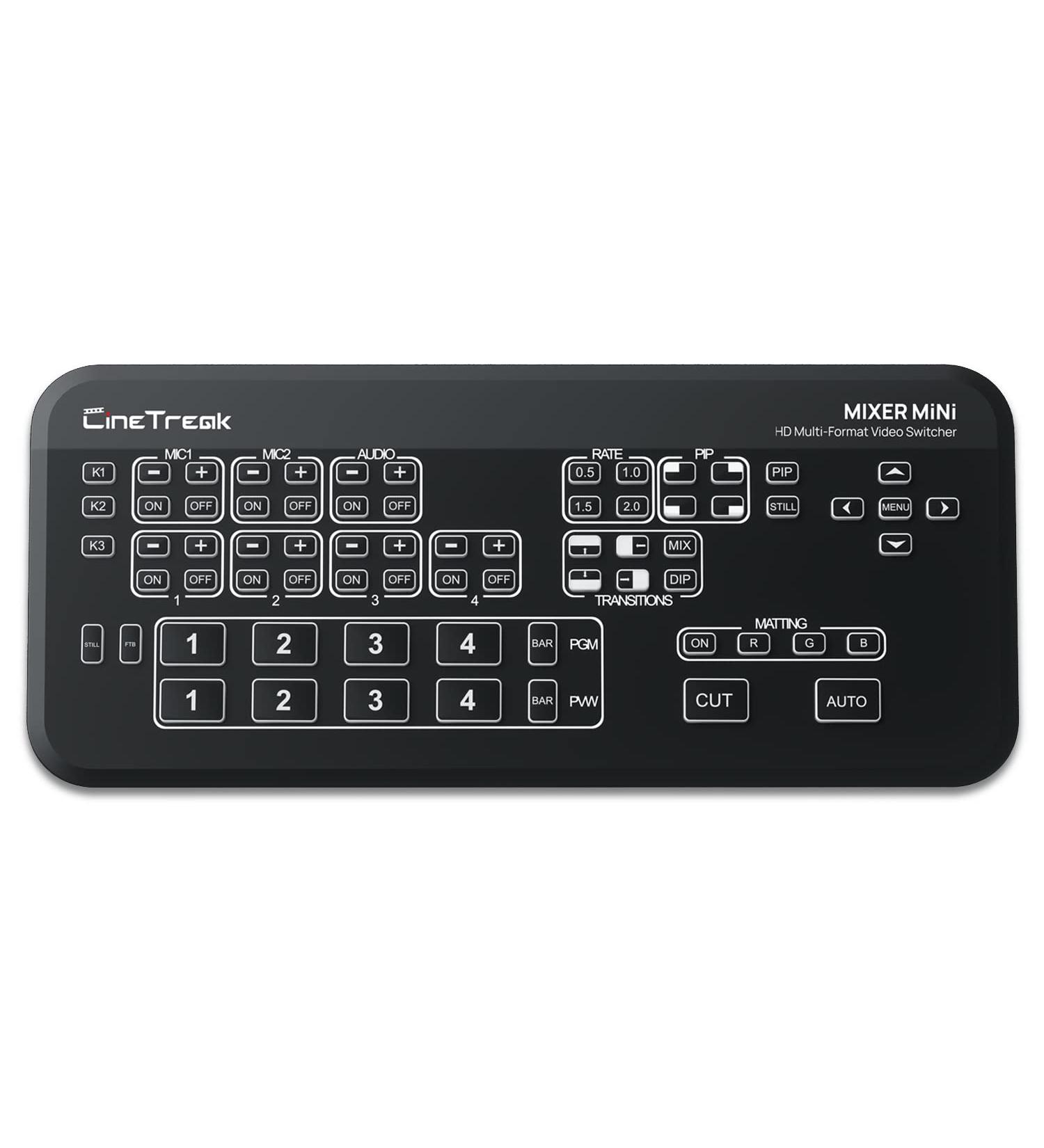

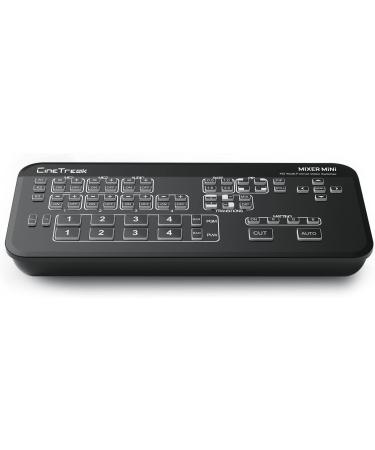

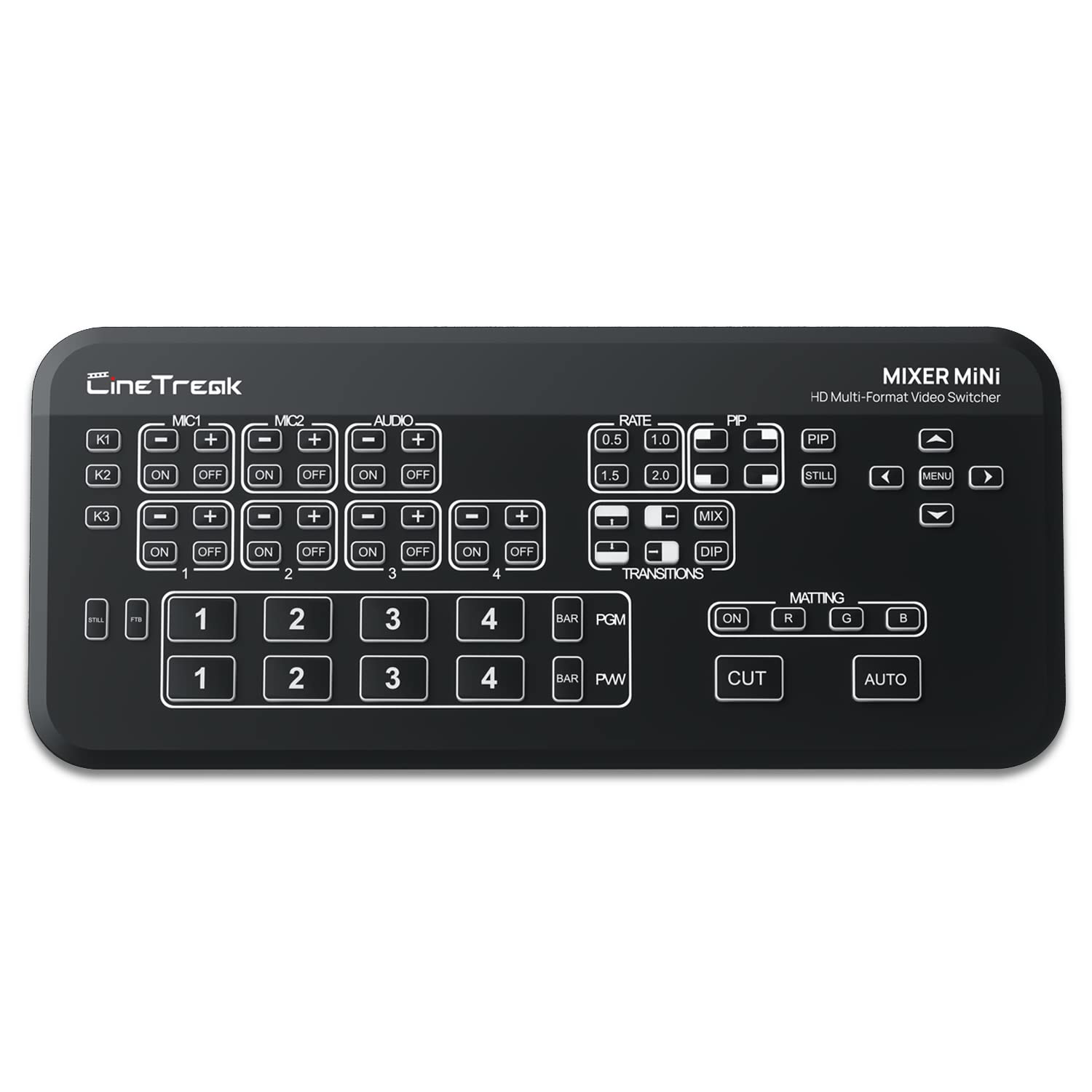

Mixer Mini is our First HDMI video switcher ,we built in 6 HDMI ( 4*HDMI imput &1*HDMI multiview & 1*HDMI PGM output) It is a cost-effective 6 HDMI video mixer on the market.

Product Bullet Points

Support 1-CH HDMI Multi-preview out,1-CH HDMI Clean PGM output.
FHD 4 channels HDMI input,multi-camera live streaming switching.
Type-C video capture interface, high-definition network camera output.
6 transition effects, 4 degree rate adjustment, CUT key smoothly switching.
Customized PIP function, size, position can be adjusted.
Professional chroma key function, New algorithm,More accurate.
ProfessionalAudio Mixer, portable AFV mode.
3.5mm audio source embed, dual Mic noise reduction processing input.
Professional PC software Remote control.

MIXER MiNi Parameter Sheet

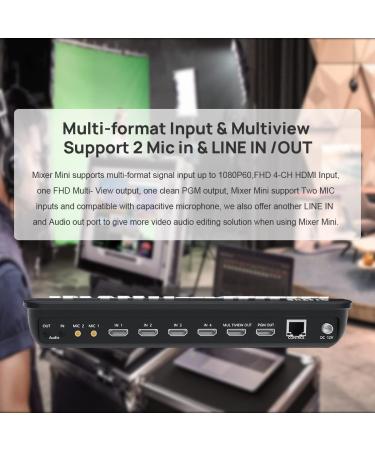

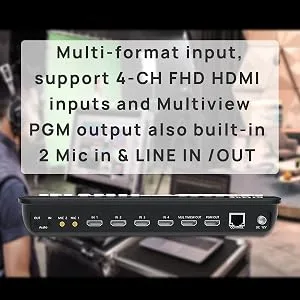

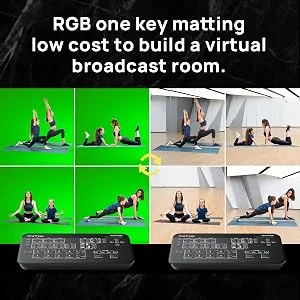

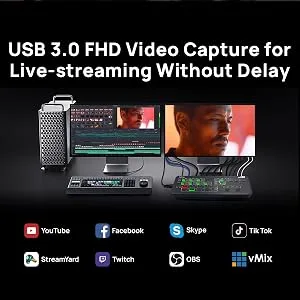

Multi-format Input & Multiview/Clean PGM output. Mixer Mini supports multi-format signal input up to 1080P60,FHD 4-CH HDMI Inputone FHD Multi- View output, one clean PGM output, Mixer Mini support two microphone inputs and compatible with capacitive microphone, It built-in one LINE IN and one Audio Out port to give more video audio editing solution when using Mixer Mini.	USB3.0 Video capture ,live-streaming anytime. USB 3.0 live-streaming video capture function,perfectly compatible with all Windows and MAC systems, support OBS one click On Air , compatible with main live-streaming platforms, such as Facebook,Youtube, Instagram, Tik tok, OBS ,Twitch etc.	RGB Chroma key function,one key matting. Mixer Mini uses a new matting algorithm, which can easily realize chroma matting with one click. lt can cooperates with Cinetreak PC control software forfurther fine-tuning to realize the most perfect live broadcast solution at low cost.Built the virtual live broadcast room on the basis of RGB background which is more convenient and efficient.

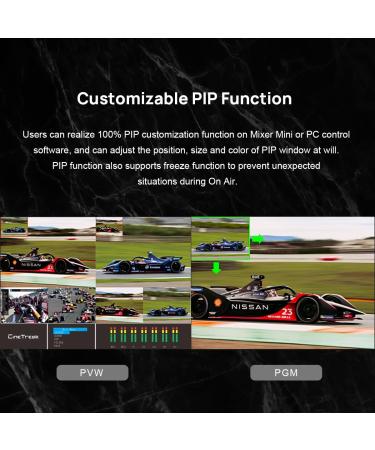

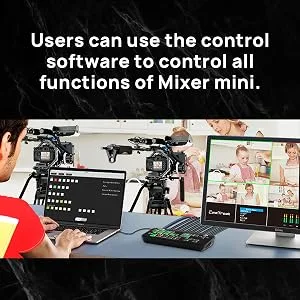

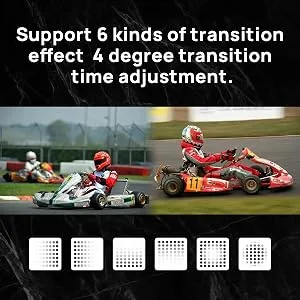

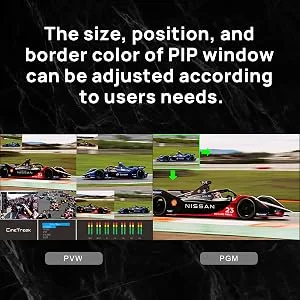

Mixer mini supports customized PIP function. Users can realize 100% PIP customization function on Mixer Mini or PC control software, and can adjust the position, size and color of PIP window at will.PIP function also supports freeze function to prevent unexpected situations during On Air.	Multiple transition effects can be used on Mixer mini. Mixer Mini supports up to six transfer effects, which can be switched between different effects with one key "AUTO" and switching time of Mixer Mini can be set,support 0.5/1/1.5/2 second options according to different live-streaming situation.	Multifunctional PC control software. Users can download PC control software from Cinetreak official website.After connecting to switcher, users can realize the functions ofVideo switcher and Audio Mixer on PC control sidePIP, Chroma key and other functions can be realized on PC control software with one click.

Multiple Applications for Using.

Mixer Mini can be used in a variety of applications such as wedding,conference, church , funeral, sporting event, game, concert,education, live sports, and any other live streaming event, with Multi-functional system that can meet 90% of portable & Professional live-streaming projects.

Standard Specifications

Input	4-CH FHD HDMI
Outout	1-CH FHD HDMI PVW /1-CH FHD HDMI PGM/ 1 Type-C
Input Resolutions	1080p60,1080p50,1080p30,1080p25,1080p24,1080p23,1080i60,1080i50 and more.
Color Space	RGB
Video capture	USB3.0
Software Control	Cinetreak Mini
Audio in	2MIC IN &13.5MM Stereo Jack
Audio out	1*3.MM Stereo Jack
Working Temperature	0-70°C
Body weight	650G

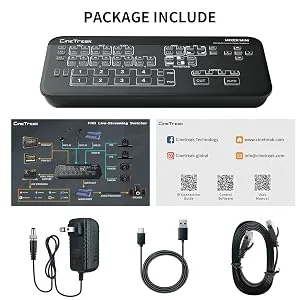

Package Include

1x Mixer Mini Switcher
1 x 5ft Ethernet Cable
1 x 3.3ft USB3.0 Cable
1x12V/2A Power Adapter
1 x User Manual Card

More Detail about MIXER MiNi

Input Voltage :DC 12V / 1.5A

Max Power:18W

Humidity: 0%-90%(non-condensing)

Unit Size: 260mmx115mmx40mm

Supported Standards: HDMI 1.3 /USB 3.0

USB Software Supporting:Facebook, Youtube, Tik Tok, Stream yard, Twitch ,OBS ,vMix etc.

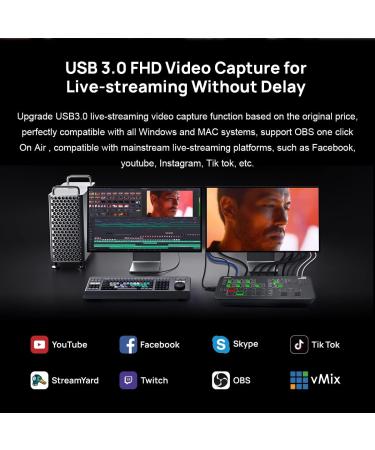

?PC Remote Control?Users can download PC control software from Cinetreak official website.After connecting to switcher, users can realize the functions of Video switcher and Audio Mixer on PC control side PIP, Chroma key and other functions can be realized on PC control software with one click. ?USB 3.0 FHD Video Capture ?USB3.0 live-streaming video capture function based on the original priceperfectly compatible with all Windows and MAC systems, support OBS one click On Air , compatible with mainstream live-streaming platforms, such as Facebook. youtube, Instagram, Tik tok, etc. ?Customizable PIP Function?Users can realize 100% PIP customization function on Mixer Mini or PC control software, and can adjust the position, size and color of PIP window at will. PIP function also supports freeze function to prevent unexpected situations during On Air. ?New RGB Chroma key ?Mixer Mini uses a new matting algorithm, which can easily realize chroma matting with one click. lt can cooperate with Cinetreak PC control software for further fine-tuning to realize the most perfect live broadcast solution at low cost.Built the virtual live broadcast room on the basis of RGB background which is moreconvenient and efficient. ?Multi-format Input & Multiview/ PGM output?Mixer Mini supports multi-format signal input up to 1080P60,FHD 4-CH HDMI Input,one FHD Multi- View output,one clean PGM output, Mixer Mini support Two MIC inputs and compatible with capacitive microphone, we also offer another LINE IN and Audio out port to give more video audio editing solution when using Mixer Mini.

Audio Input: USB. Connectivity Technology: HDMI. Item Weight: 36.5 Ounces. Item Dimensions LxWxH: 11.02 x 5.91 x 3.94 inches. Brand: CINETREAK. Power Source: Corded Electric. Size: 28.6*15*10. Connector Type: HDMI, USB 3.0. Compatible Devices: PC. Color Name: Black. Date First Available: December 27, 2022. Is Discontinued By Manufacturer: No. Best Sellers Rank: #23 in Professional Video VTR Decks. Customer Reviews: 3.0 out of 5 stars 2 ratings 3.0 out of 5 stars. Item model number: Mixer Mini. : B0BR5D2MT7. Country of Origin: China. Product Dimensions: 11.02 x 5.91 x 3.94 inches. Item Weight: 2.28 pounds.
