CatXQ Smart Ring for iOS Android | 2 Health Stones,6 RFID Cards,128G Wireless USB Flash Disk,Digital Business Card,Share Social Media | Ceramic Ring for Men Women - L L Black

Regular Price: US$85.00

Special Price US$69.99

Availability: In stock

Supplier: CatXQ

Category: Electronics Wearable Technology Rings

Qty:

Specification Parameters:

Carrier Frequency: 13.56MHZ, 125KHZ

RF Distance: 1~3cm

IC Module Chip: CUID x2

Carrier Frequency of IC Module: 13.56MHZ

IC Module Feature: Equivalent to two M1 (Mifare1) IC cards, with card number and encrypted sector repeatedly modifiable.

ID Module Chip: T5577 x2

Carrier Frequency of ID Module: 125KHZ

ID Module Feature: Equivalent to two EM ID cards with card number repeatedly modifiable.

NFC Module Chip: Ntag216 x2

Carrier Frequency of NFC Module: 13.56MHZ

NFC module features: Equivalent to two NFC smart cards which can interact with smart phones

NFC Phones applicable: All Android phones with NFC function, as well as for iPhone launched after September 2018, such as for iPhone XR, XS, 11, 12 and 13

Ring Material: Ceramics

Ring Weight: 9 Grams

Protection Grade: IP56

Tips: Ceramics has good scratch-resistance, but it cannot bear violent collision or drop. Please be careful in use

the ring have two ID module, They are prone to signal conflicts, so the ID password we set:

ID1 = 5469616E

ID2 = 51243648

If your device supports the setting of encryption ID card editing, enter the above password to edit.

The IC modules of R5 ring are two 13.56MHz frequency rewritable Mifare1 type IC cards, and the chip is CUID;

The ID modules of R5 ring are two 125KHz frequency rewritable EM/HID type ID cards, and the chip is T5577;

The NFC modules of R5 ring are two 13.56 MHz frequency Ntag type2 NFC cards, and the chip is Ntag216;

The R5 ring can be 2 IC cards 2 ID cards and 2 NFC cards at the same time.

Writing new card will overwrite the old card; The reading and writing process is the same as ordinary cards.

If you still can't solve it, We recommend that you take the ring to your original card issuer, and let them add the ring as a new card to their system.

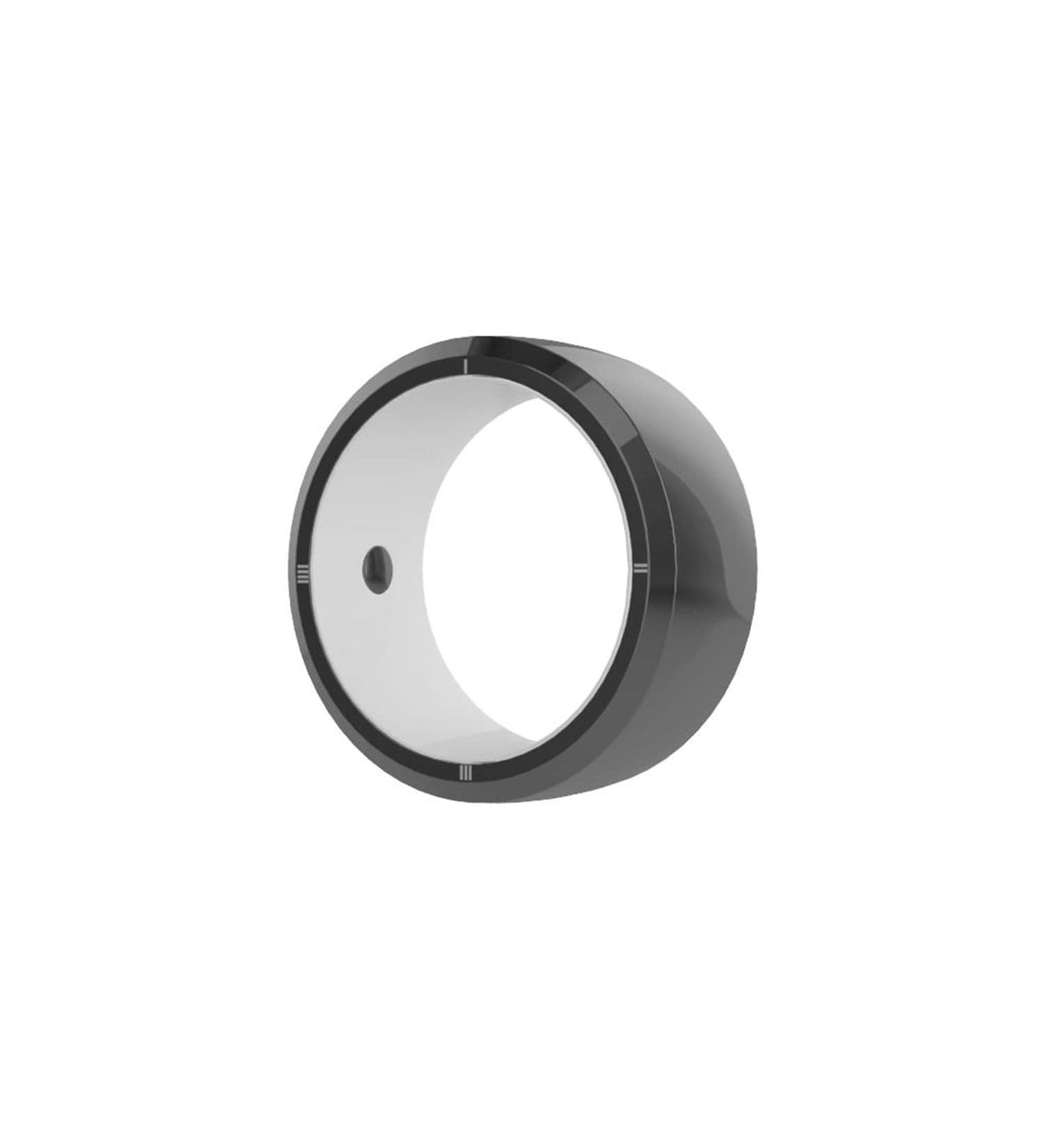

Structure and Sensing Range:

A. The area engraved with "I" is No.1 IC card

B. The area engraved with "II" is No.1 NFC card

C. The area engraved with "III" is No.2 IC card

D. The area engraved with "IIII" is No.2 NFC card

E. The white side area is No.1 ID card

F. The black side area is No.2 ID card

G. Health energy stone 1

H. Health energy stone 2

Reading method of IC and ID module:

The reading method of any IC or ID module is the same as an ordinary card, Close to the card reader according to the sensing range shown in the figure above.

Sketch Map:

Use No. 1 IC card, Use No. 2 IC card
Use No. 1 ID card, Use No. 2 ID card

Tip: the antenna of each module shall be parallel to the card reader to be sensed, The closer the distance, the more sensitive the reader will be.

Setting method of IC and ID module:

Any IC or ID module can be regarded as a new blank card, and the setting method is the same as an ordinary card;
At the original card issuer, add the IC or ID module as a new authorized card;

We provide 24-hour after-sales service. If there is a problem with the product,or you can't operate it. Please do not hesitate to contact us. The Smart Ring can be set as a trigger for the intelligent scene of MI Home Smart Devices. CatXQ Smart Ring: Built-in 128G Wireless USB Flash Disk,Use ring touch to transfer any files, and each ring has exclusive 128GB storage space. CatXQ Smart Ring:Built-in IC and ID modules,6 smart cards can be simulated at the same time (Access Card,Elevator Card,Time card,Parking Card,Membership Card,Shopping Card and Other RFID Cards),the read-write process of ic/id card module is the same as ordinary cards.within the sensing range of the ic/id module,it can be authorized or copied by the corresponding dedicated read-write devicel. CatXQ Smart Ring:Built-in NFC module Easily Share Digital Business Card, Social Media (Facebook,Instagram,Twitter,Youtube,TikTok),can realize virtual call,Scene notification,Memo sharing and other featured cloud services.

Connectivity Technology: USB, NFC. Band Color: Black. Compatible Devices: Smartphone. Age Range (Description): Adult. Shape: Round. Special Feature: Smart Ring. Color: Black. Style: Modern. Brand: CatXQ. Date First Available: June 29, 2022. Best Sellers Rank: #99,575 in Electronics. Customer Reviews: 2.6 out of 5 stars 4 ratings 2.6 out of 5 stars. Item model number: CatSmaR503. : B0B5DWKW69. Manufacturer: JAKCOM. Item Weight: 1.76 ounces. Package Dimensions: 3.74 x 3.39 x 1.54 inches.
