Authentic Genuine Nagoya UT-72 Super Loading Coil 19-Inch Magnetic Mount (Heavy Duty) VHF/UHF (144/430Mhz) Antenna PL-259, Includes Additional SMA Adaptor for BTECH and BaoFeng Handheld Radios UT-72 PL-259/SMA VHF/UHF

Regular Price: US$95.00

Special Price US$74.99

Availability: In stock

Supplier: BTECH

Category: Electronics Portable Audio & Video CB & Two-Way Radios Accessories Antennas

Qty:

Genuine Nagoya UT-72

The UT-72 antenna, when mounted vertically is omni-directional which allows it to receive signal from all directions. It uses a very heavy duty rare earth magnet on it's 3.25 inch magnetic mount and is the perfect antenna for cars, pickup trucks, vans and SUVs.

With 14 feet of Heavy Duty RG-58 you are able to set up your Antenna on almost any vehicle application. The antenna itself is 2.5mm thick compared to the usual 1.5mm antennas found on most vehicle magnetic mounts.

Included in the package is a RG316 SMA Jumper that allows easier installation on your handheld radio.

Compatible with both SMA-Female and UHF (SO-239) installations.

Nagoya UT-72.

Genuine Nagoya Antennas

Nagoya antennas are each individually analyzed to ensure compatibility with your radio.

Nagoya Antennas are dependable, accurate, reliable, and affordable.

Avoid antennas that pretend to be a Nagoya. Antennas that are not individually tested or tuned can cause high SWR, which damages a radio.

Nagoya Antennas are proven to be a reliable and safe antenna manufacturer.

Extend the Range of Your Communication

Receive Hard to Hear Signals and Transmit Further

Most Nagoya antennas will increase your radio's transmitting gain compared to their factory antenna.

In most cases: the longer the antenna is the better the antenna is capable of boosting weak frequencies and receiving difficult to hear stations. Shorter antennas offer more portability and convenience, while longer antennas generally perform better.

View the comparison chart below to pick the antenna best fit for your application.

Frequency Range: 136-174MHz, 400-520MHz; Optimal Frequency Range: 140-170MHz, 420-470MHz
Wave: 1/4(144MHz) - 5/8(430MHz)
Gain: 3.5dBi
Max power: 80 Watts
VSWR : Less 1.5:1
Impedance: 50 OHM
Connector: SMA-F & PL-259
Length: 20 inches


	UT-72	UT-308UV	NMO-72	NMO-200A	NMO-200C	TB-320A
TX & RX Frequency Range	136-174MHz, 400-520MHz	136-174MHz, 400-520MHz	136-174MHz, 400-520MHz	136-174MHz, 400-520MHz	136-174MHz, 400-520MHz	136-174MHz, 220-225MHz, 400-520MHz
Connection	SMA-Female and PL-259	SMA-Female	NMO Mount	NMO Mount	NMO Mount	PL-259 and NMO Mount
Optimal Transmit Frequency Range	140-170MHz, 420-470MHz	140-160MHz, 420-460MHz	140-170MHz, 420-470MHz	140-160MHz, 420-465MHz	150-175MHz, 450-500MHz	140-160MHz, 220-225MHz, 420-470MHz
Average Gain to Stock Antenna	3.5dBi	4.15dBI	3.65dbi	5.5dBi	5.5dBi	5.5dBi
V.S.W.R.	=1.5:1	=1.5:1	=1.5:1	=1.5:1	=1.5:1	=1.5:1
Length	20"	21"	19.17"	38.4"	38.4"	38.5"
Wave	1/4(144MHz) - 5/8(430MHz)	1/4(144MHz) - 1/4(430MHz)	1/4(144MHz) - 5/8(430MHz)	1/2(144MHz) - Two 5/8s (430MHz)	1/2(155MHz) - Two 5/8s (460MHz)	1/4(144MHz) - 1/2(220MHz) - 5/8(440MHz)
Maximum Power	80W	80W	100W	100W	100W	100W
Requires Mount			✓	✓	✓	✓
Includes Mount	✓	✓

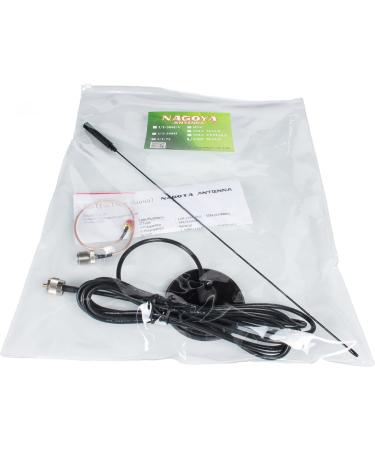

The Nagoya UT-72 is a dual-band magnet mount antenna with over 4 dB of gain. It is designed to be used with your mobile or handheld radio. An included super flexible SMA adapter cable allows for easier installation right to your handheld radio. It will help improve your signal by mounting the antenna on any vehicle with a steel body (like cars). The UT-72 antenna, when mounted vertically is omni-directional which allows it to receive signal from all directions. It uses a very heavy duty rare earth magnet on it's 3.25 inch magnetic mount and is the perfect antenna for cars, pickup trucks, vans and SUVs. With 14 feet of Heavy Duty RG-58 you are able to set up your Antenna on almost any vehicle application. The antenna itself is 2.5mm thick compared to the usual 1.5mm antennas found on most vehicle magnetic mounts. Included in the package is a RG316 SMA Jumper that allows easier installation on your handheld radio. The jumper has been tested at the perfect length to resist line loss - insuring the maximum performance from your radio. Package: 1x Nagoya UT-72 Magnetic Mount Antenna with PL-259 with 14' RG-58 1x SMA Adapter to UHF SO-239 (10 inches) Compatible with: All Mobile Radios with UHF (SO-239) Connectors BTECH Mobile Radops: UV-25X2, UV-50X2, UV-25X4* (*UV-25X4 Reccomended antenna is the TB-320A with RB-50 Mount) BTECH Handheld Radios: GMRS-V1, MURS-V1, UV-5X3 BaoFeng: BF-F8HP, UV-82C, UV-82X, UV-5R, BF-888s and all models with SMA-Female And any other radio that uses the SMA-FEMALE or SO-239 Adapters.
