Ancor Marine Grade Products NMEA 2000 Backbone Cables Drop Cables Tees Terminators Kits Starter Kit Dual Device

Regular Price: US$145.00

Special Price US$114.99

Availability: In stock

Supplier: Ancor

Category: Sports & Outdoors Sports Boating & Sailing Boating Electrical Equipment Wire Terminals

Qty:

Frequently bought together :

Price for all selected :

US$214.97

Ancor NMEA 2000 Cables & Connectors

Premium Quality. Universal Fit.


Backbone Cables Large gauge cable to provide better network reliability and reduce voltage drop for critical backbone connections.	Drop Cables Super flexible cable for ease of installation and wire routing.	Accessories Everything needed to correctly build a NMEA 2000 network.	Starter Ktis Easy to install starter kits include all necessary components needed to build a new NMEA 2000 network.

Ancor Network Color Coding System

Yellow & Black Couplers

All backbone cables and backbone accessories come with a yellow coupler to make identifying the network backbone easy.

Drop cables and accessories that should be connected to drop cables all come with black couplers.

Red Power Drop (Tee)

The red tee of the power tee makes finding the power connection as easy as possible in hard to reach consoles or compartments where batteries may be stored.

Blue Power Isolation

In specialized applications, for example connecting a screen that also has its own power connection, a power isolator is needed to ensure that the NMEA network only has one source of power. This can be managed and easily identified with the blue power isolator. (If you are unsure of the application for this product please contact a NMEA certified installer for more info)

Benefits

Color coding makes installing a new system easier and more efficient
Adding tees and drop cables is easier because you know where you can create a break and add tees

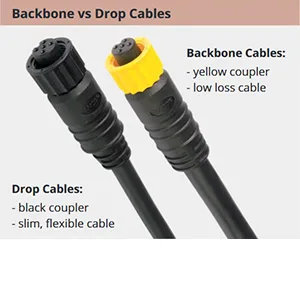

Difference Between Ancor Backbone Cables & Drop Cables

Wire Gauge

Ancor backbone cables are produced with a larger gauge size cable than other cables on the market to help increase network reliability and reduce voltage drop across a network backbone which can at times span long distances. Ancor drop cables, which are typically a much shorter distance, are produced with a smaller gauge wire than our backbone cables allowing them to be routed more easily through bulkheads or behind panels.

Coupler Colors

Backbone cables which are made of the larger gauge wire are easily identified by the yellow couplers on each end which connect to yellow couplers on tee connector. Drop cables and their black couplers then connect to black couplers on the bottom of tees or to other helpful accessories like our 90° elbow, which helps to reduce tight bends in the drop cable which can effect performance.

Benefits

Large gauge cable results in a more reliable network
Smaller gauge cable is easier to route
Color coded system takes the guess work out of knowing which cable is which

NMEA 2000 Certified, 100 percent universal and compatible with other manufacturers' products. Two 2 meter (6.5 ft) drop cables, item# 270302. One dual tee connector, item# 270103. Male and female terminators (1 each), item# 270105 and 270106. 1 meter (3.3 ft) power cable with tee, item# 270000. Imported.

Best Sellers Rank: See Top 100 in Sports & Outdoors. Item Weight: 1.11 Pounds. Unit Count: 1.0 Count. Connector Gender: Male-to-Female. Color: Dual Device. Brand: Ancor. Country of Origin: USA. : B074KHXXMF. Manufacturer: Marinco Electrical Group. Date First Available: August 23, 2017. Department: unisex-adult. Item model number: 270202. Product Dimensions: 4.9 x 7.7 x 2.4 inches; 1.11 Pounds.
