ALZO Telescoping Suspended Drop Ceiling Mount Kit

Regular Price: US$125.00

Special Price US$104.99

Availability: In stock

Supplier: ALZO digital

Category: Electronics Camera & Photo Lighting & Studio Lighting Mounting Hardware

Qty:

Frequently bought together :

Price for all selected :

US$164.98

ALZO Telescoping Suspended Ceiling Support System User Guide

CAUTION: Typical suspended ceilings are not intended to support weight. A suspended ceiling system will typically require modification in order to support the weight of a light fixture in excess of 2 pounds. If you do not have construction skills, we strongly recommend that you have a licensed contractor make the modifications required.

The installation of the Safety Line between the light fixture and the true ceiling is required.

Suspended ceiling metal frames are constructed of long unbroken runs of framing called main runners, and short pieces called connectors fitting between long runs to form the grid. It is best to suspend a light fixture from the long main runners of framing and not the short connectors. If the best location for the light is on a short connector, then you will need to add a support wire physically attached to the true ceiling at the location of the light.

The Kit includes:

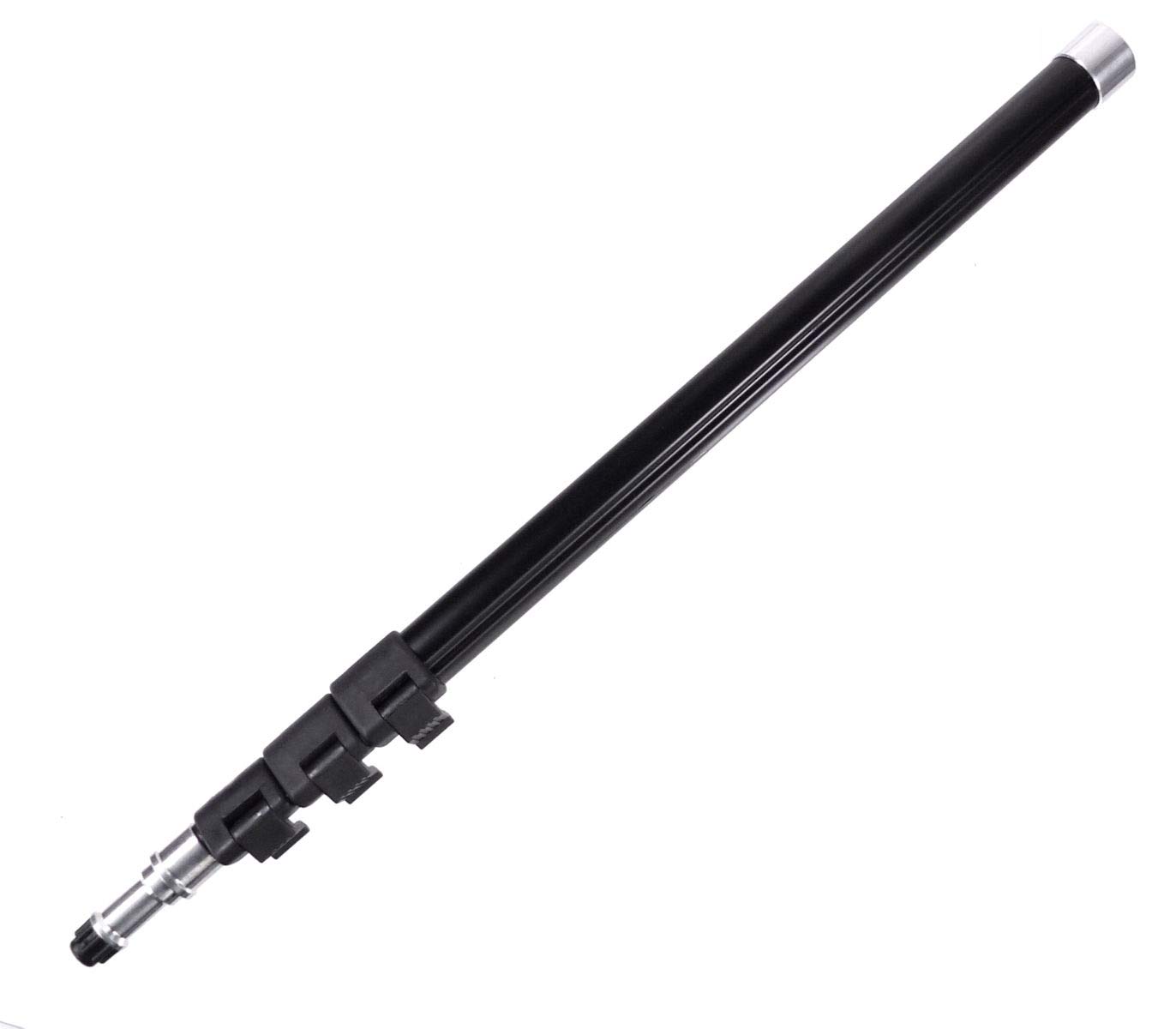

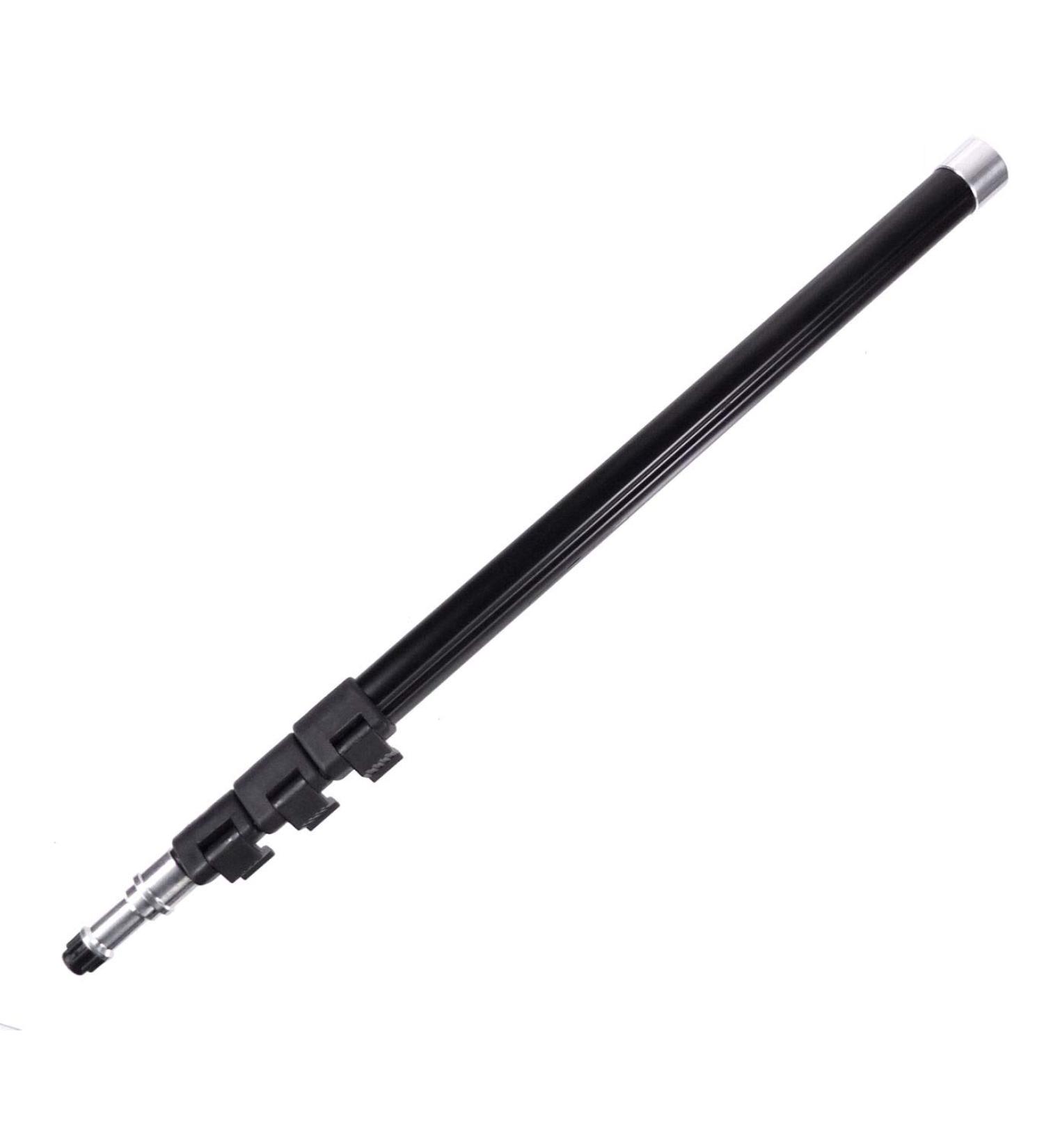

Telescoping support
X-Clamp with star washer and nut
Cable ties
Steel safety line with latch

STEP 1

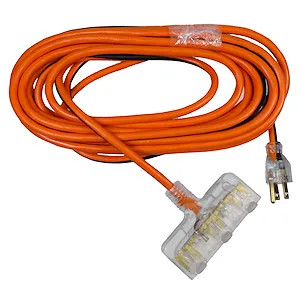

Locate the power outlet that the light will be connected to and measure the distance along the ceiling to the wall over the outlet and add the height from the ceiling to the outlet. This will determine the length of power cord plus extension cord required. When installing multiple lights, it may be desirable to connect the power cords to a single extension cord with a socket cluster as shown here.

STEP 2 - Locate the position(s) where the light(s) will be installed and mark the metal frame with a pencil, then remove the tiles on both sides of the light location.

STEP 3

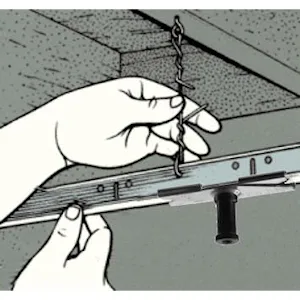

Inspect the installation of the support wires attached to the framing and if there is a support wire within 12 inches of the light location, mark that the addition of a support wire is not required.

If the closest support wire is more than 12 inches from the light location, then it is strongly recommended to add a new support wire directly over the light location. Replicate the method of connection of the support wire to the ceiling framing or concrete.

ALZO Suspended Ceiling Support instructinos

STEPS 4 & 5

STEP 4 - Starting with the X-clamp, loosen the nut to allow the X-clamp to open. Attach the X-Clamp to the ceiling frame where you have marked the frame for the light location. Assure that all 4 wings of the X-Clamp are wrapping around the frame. Tighten the nut with a wrench or pliers.

STEP 5 - With a ceiling tile removed, inspect the true ceiling structure and then securely attach a screw eye (or equivalent) to fasten the safety wire to the true ceiling structure. This screw eye should be located as close to the middle of the x-clamp as possible. Use a large screw eye in wood framing as shown here. Attach the safety wire to the hook and assure that the hook eye is closed.

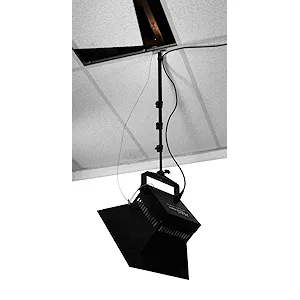

Complete installation of suspended ceiling light mount

STEPS 6, 7 & 8

STEP 6 – Attach the telescoping support to the X-clamp screw and tighten. IMPORTANT: Now attach the safety wire to the light fixture using the clip and then attach the fixture to the telescoping support as shown. Tighten the wing screw on light fixture to secure the light to the support.

STEP 7 – Add the other X-Clamp to the ceiling framing along the path of the power cord toward the wall outlet.

STEP 8 – Use the cable ties to attach the power cord and extension cord to the X-Clamps. It is a good idea to not completely tighten the cable tie around the power cord. This will allow the power cord to adjust to different lengths if you need to reposition the light.

If you plan on repositioning the light frequently, it would be easier to add another X-Clamp and move the light. This will require constructing a clip mechanism to allow for easy reconnection of the safety line.

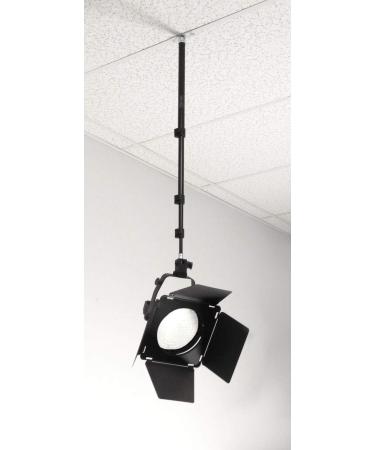

Includes nylon safety line for attachment of the light fixture to the true ceiling framing; includes an installation guide (see link below under "Technical Specification"). 2 plastic T-Bar hooks for power cord management. Suspended ceiling frame clip for 1-inch T-Bar metal frame. Collapsed length is 19 inches, maximum extended length is 58 inches. 4 section adjustable height aluminum support with a max capacity of 12 pounds.

Country of Origin: China. Manufacturer: ALZO Digital. Date First Available: July 20, 2018. Is Discontinued By Manufacturer: No. Best Sellers Rank: #18 in Photographic Lighting Mounting Hardware. Customer Reviews: 3.8 out of 5 stars 23 ratings 3.8 out of 5 stars. Item model number: 3216614009. : B07FQPF82B. Item Weight: 1.21 pounds. Product Dimensions: 24 x 4 x 3 inches.
