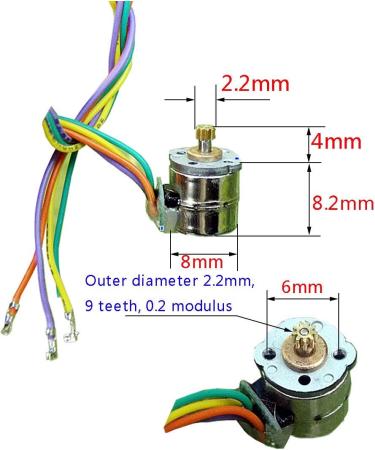

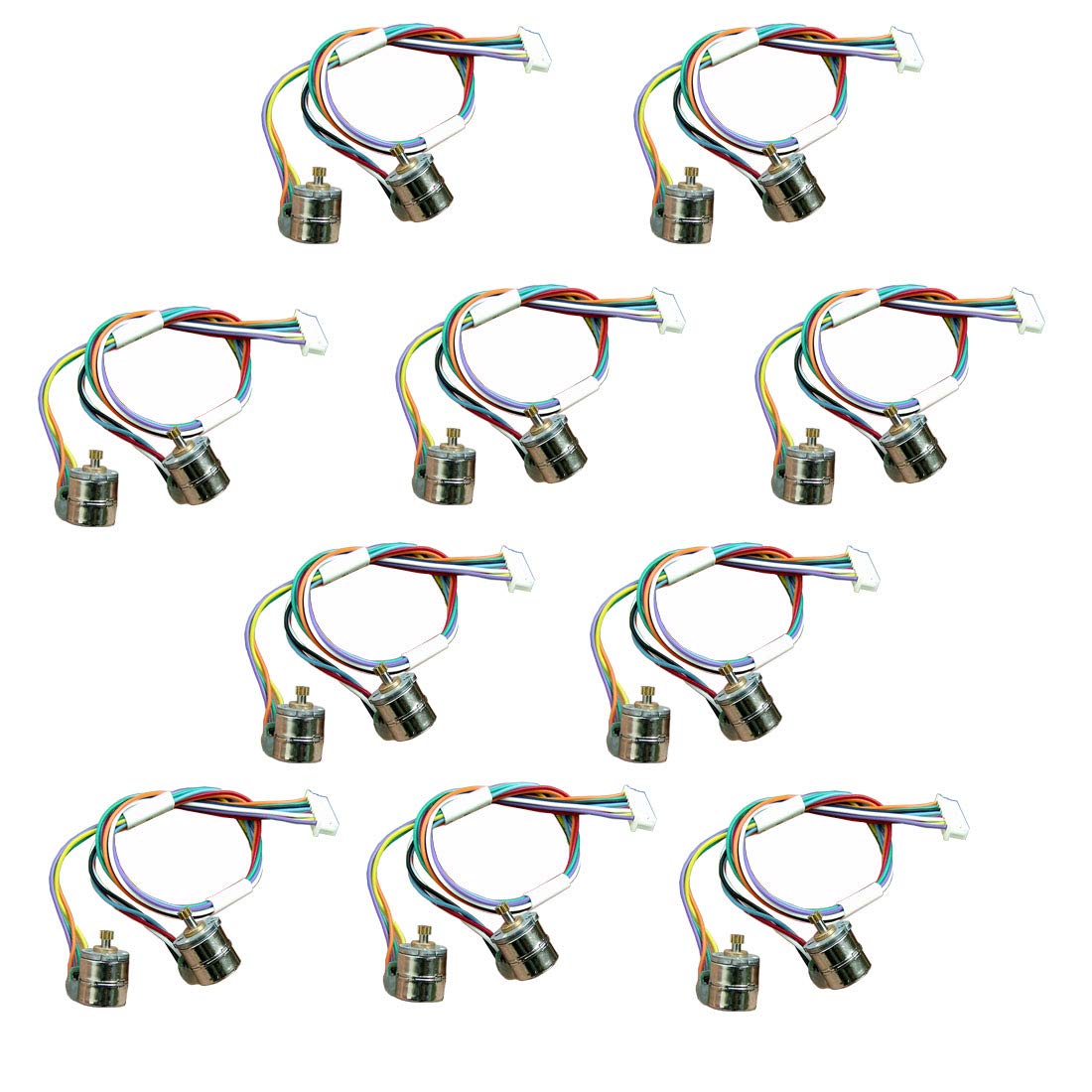

5. Distribution of long-axis motor connection lines: (blue: A +, black: A-. Red: B +, white: B-) Short-axis motor connection line distribution: (purple: A +, yellow: B-. Orange: B +, green: B-). 4. Motor diameter: 8mm, motor height: 8.2mm, output shaft diameter: 1.5mm, gear outer diameter: 2.2mm. 3. Each pair of motors is bundled by two motors, the output shaft length is 4mm and 3.5mm respectively, and the gears are installed separately. 2.Suitable for voltage 5-6V, driving current is 0.12A, short-circuit current is 0.14A. 1. This is a precision 8MM micro stepping motor, widely used in digital products such as digital cameras and other small appliances.

Item Weight: 2.04 Ounces. Material: Copper. Item Dimensions LxWxH: 0.48 x 0.31 x 0.31 inches. Voltage: 6 Volts. Brand: Abovehill.
