6 Pack Mini L298N DC Motor Driver, MELIFE MX1508 Mini Dual Channel 1.5A 1.5A 2 Way PWM Speed Controller Dual H-Bridge Replace Stepper 6pack

Regular Price: US$35.00

Special Price US$29.99

Availability: In stock

Supplier: MELIFE

Category: Electronics Camera & Photo Accessories Telescope & Microscope Accessories Telescope Accessories Motor Drives

Qty:

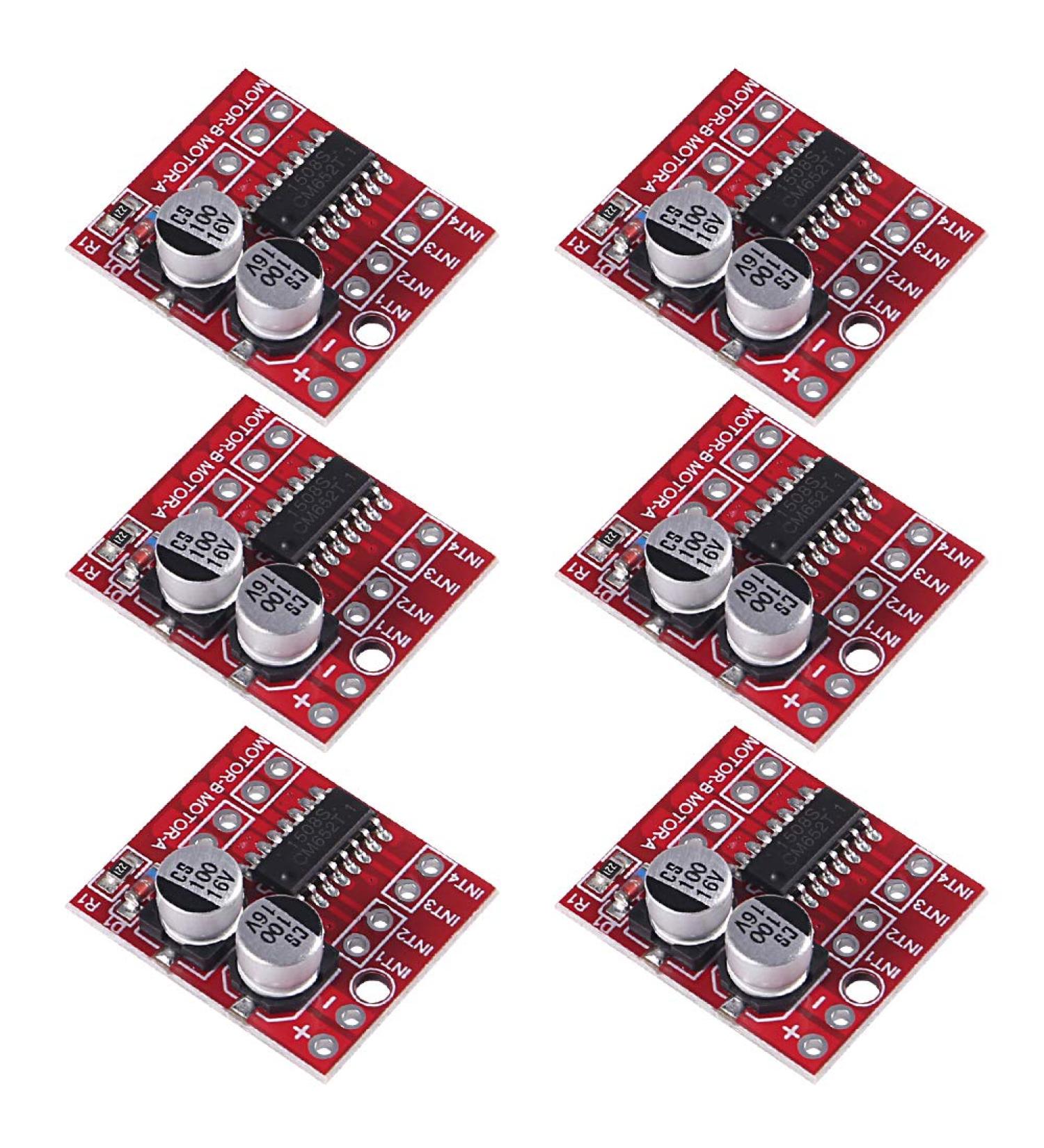

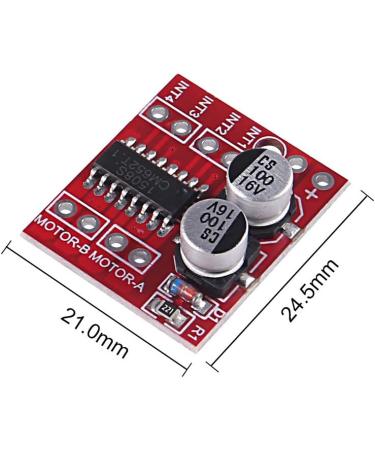

Product parameters: The module supply voltage 2V-10V. Signal input voltage 1.8-7V. Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA). Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction. Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall. Product size: 24.7 * 21 * 5mm (length, width, height), ultra-small size. The mounting hole diameter: 2 mm. Attention: 1. Power positive and negative reversed will certainly cause damage to the circuit. 2. Output is shorted to ground or output short circuit, and the motor stall, the chip will heat protection, but in the near or exceeding 10V voltage and peak current is greater than 2.5A situation can also cause chip burned. Package Included: 6 * Mini L298N Motor Drive Module

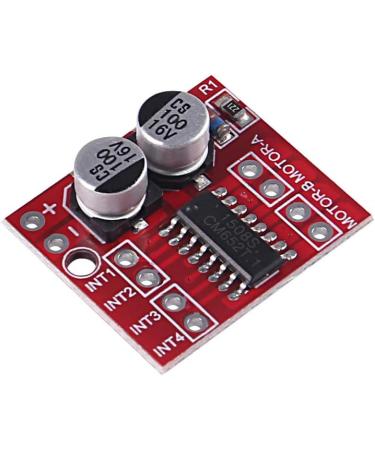

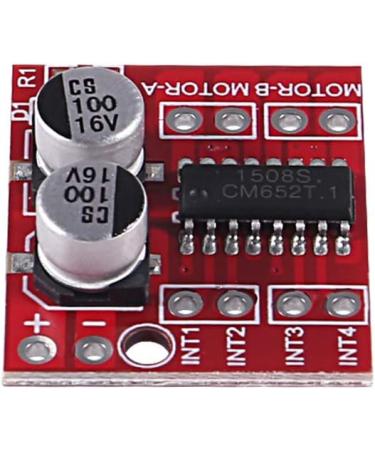

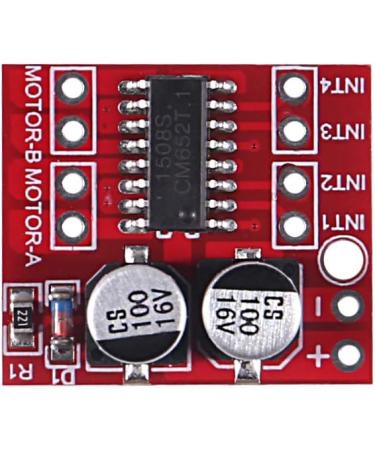

Use of imported original chip, built-in low on-resistance MOS switch, minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered. Dual 1.5A * 2, the peak current to be 2.5A, built-in thermal protection circuit, do not be afraid motor stall burned, automatic recovery after the temperature dropped. Supply voltage 2V -- 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Dual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motor. Motor drive module is ideal for use in battery-powered smart car, toy cars, robots.

Best Sellers Rank: #25 in Telescope Motor Drives. Customer Reviews: 4.4 out of 5 stars 80 ratings 4.4 out of 5 stars. Date First Available: ?September 10, 2020. : ?B08HRMWHSL. Manufacturer: ?MELIFE. Color: ?6pack. Package Dimensions: ?3.98 x 2.72 x 0.71 inches. Item Weight: ?0.739 ounces. Item model number: ?M14106. Brand: ?MELIFE.
