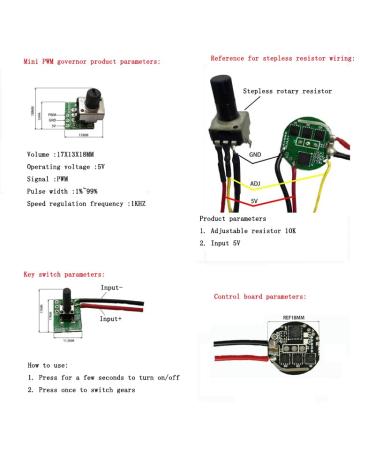

12V style parameters: Maximum motor power :60W Voltage :12V Maximum motor current: about 5A Power supply current output requirement: greater than 8A Maximum revolutions: 90,000-100000 Withstand voltage :16.8V 24V style parameters: Maximum motor power :85W Voltage :24V Maximum motor current: about 3.5A Power supply current output requirement: greater than 8A Maximum revolutions: 90,000-105000 Withstand voltage :25V 12V/24V governor mode: Button speed regulation: no self-locking button PWM speed control regulation :10K resistance governor No self-locking button speed regulation: frequency 1KHZ-10KHZ Power on style: None 12V/24V power on/off and using method: Button speed regulation: long press on/off, click to switch gears, a total of 4 adjustable. Standby 0 power consumption PWM speed control regulation: stepless twist speed regulation, free speed regulation size No self-locking button speed regulation :PWM adjustment is the duty cycle 0100%, can be free speed regulation Power on style: power on is the highest speed Common question: 1. Why does the motor stop after turning? A: Check whether the power supply voltage and current are in the drive range, and there are no undervoltage and current limiting problems. 2. how do I connect the power supply, the motor will smoke. A: Please connect the stable line in the case of power failure and then power on. Contact or hand contact will cause high voltage and large current, which may cause the risk of burning the board. The red line is connected to the positive electrode, the black line is connected to the negative electrode, and the board is burned immediately when the wrong power is connected. 3. The power cord so thin can over 5A current? A: Please rest assured that our design is the selection of materials after all aspects of the test OK. 4. Does this motor have positive and negative rotation function? A: No 5. Can the air direction of the motor be changed? A: Yes, but change the direction of the wind, the electric machine than the original heat dissipation is smaller, not recommended to change oh. 6. Can the motor communicate? A: You can't.

5 modes optional: PWM speed regulation, stepless resistance speed regulation, no self-locking key speed regulation, power on is the highest speed, resistor speed regulation, please choose what you like. Speed regulation function: The speed of the motor can be adjusted flexibly according to different working requirements. Strong stability: in the working process can maintain a stable speed and performance to ensure the quality of work. Easy maintenance: simple structure, easy maintenance, reduce maintenance costs and time. Compact and lightweight: small size, light weight, easy to handle.
