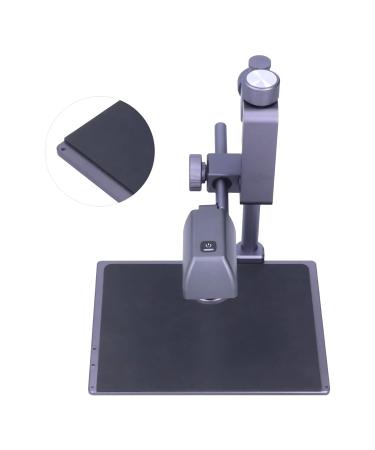

Feature: 1. Special Equipment: The analyzer is a special equipment for thermal field detection, which can provide a large amount of data for thermal experiments and thermal simulations during the design and development phase of PCBA products. 2. Circuit Board Repair: The analyzer is a special equipment for circuit board repair. When the product fails, the use of thermal analyzer can quickly find the location of the leakage or short circuit device, locate the fault point, and achieve the purpose of rapid maintenance. 3. Detecting Components: The analyzer can detect components, such as power modules and other devices. In applications such as detecting overheating protection capabilities, a large amount of temperature detection data can be obtained through the thermal analyzer. 4. Basic Specifications: An analyzer with 52,000 points of effective temperature measurement (260x200), a full frame infrared detection area increased by 3 times, a 4mm adjustable lens, fast focusing speed, and more stable image quality. 5. Regional Temperature Curve Comparison: Through regional temperature curve comparison, the unqualified device is detected, and the difference is compared by the highest temperature, lowest temperature position and temperature value in the delineated area. Specification: Item Type: Benchtop Thermal Camera Model: CA-10 Material: Aluminum Alloy Purpose: PCB Experimental Testing and Maintenance Lens Parameters: Thermal Imaging Resolution: 260 x 200 Frame Rate: 25Hz NETD: 70mK025? Field Of View: Horizontal 34.4, Vertical 25.84 Lens: 4mm Adjustable Lens Temperature Measurement Range: Proofreading Temperature -10~120? (Can be extended to 550?, high temperatCircuit Board Repair: The analyzer is a special equipment for circuit board repair. When the product fails, the use of thermal analyzer can quickly find the location of the leakage or short circuit device, locate the fault point, and achieve the purpose of rapid maintenance. Detecting Components: The analyzer can detect components, such as power modules and other devices. In applications such as detecting overheating protection capabilities, a large amount of temperature detection data can be obtained through the thermal analyzer. Regional Temperature Curve Comparison: Through regional temperature curve comparison, the unqualified device is detected, and the difference is compared by the highest temperature, lowest temperature position and temperature value in the delineated area. Special Equipment: The analyzer is a special equipment for thermal field detection, which can provide a large amount of data for thermal experiments and thermal simulations during the design and development phase of PCBA products. Basic Specifications: An analyzer with 52,000 points of effective temperature measurement (260x200), a full frame infrared detection area increased by 3 times, a 4mm adjustable lens, fast focusing speed, and more stable image quality.Best Sellers Rank: See Top 100 in Industrial & Scientific. : B09MG6LL8N. Manufacturer: Shanrya. Date First Available: November 24, 2021. Package Dimensions: 14.96 x 11.02 x 4.33 inches; 4.41 Pounds.
