2.0M 30fps Digital Microscope Eyepiece Camera with 23.2mm to 30mm 30.5mm Ring Adapter

Regular Price: US$135.00

Special Price US$109.99

Availability: In stock

Supplier: WintopScope

Category: Cameras & Optics Camera & Optic Accessories Camera & Video Camera Lenses

Qty:

BE SAFE

WE ONLY SHIP

FROM OFFICIAL SUPPLIERS

From United States

To International

In 5-10 Days

US$19.99 Shipping Fees for any Order

GRAND SELECTION

Think of it and most probably we have it among our grand selection of products!

AMAZING PRICES

Get ready for the amazing and best Supps prices ever!

FIXED RATE DELIVERY

Get your order anywhere on this planet within 5-10 days with a fixed rate of $19.99 (no matter the size of your order)

+1 (844)-467 8777

PHONE:

+1 (844)-467 8777

USB2.0 2.0M Digital Microscope Eyepiece Camera

Microscope eyepiece camera with 23.2 diameter and compact size;
High-quality camera with Aptina CMOS sensor;
Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
Providing Windows/Linux/Mac OS multiple platforms SDK;
Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

SCMOS Microscope Eyepiece Camera

Model: SCMOS02000KPB
Sensor & Size(mm): 2.0M/OV2710(C) 1/2.7”(5.76×3.24)
Pixel(µm): 3×3
FPS/Resolution: 25@1920×1080/30@1280×1024/30@1280×720
Binning: N/A Exposure:Auto

SCMOS Microscope Camera Datasheet

Sensor & Size(mm): 0.35M/Aptina(C)1/4’’ (3.58x2.69)
Pixel(µm): 5.6x5.6
FPS/Resolution: 30@640x480
Binning: N/A
Exposure: Auto

Microscope Eyepiece Camera

Other Specification

Spectral Range: 380-650nm (with IR-cut Filter)
White Balance: Auto White Balance
Color Technique: N/A
Capture/Control API: Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording System: Still Picture and Movie
Cooling System: Natural

Operating Environment

Operating Temperature(in Centidegree): -10~ 50
Storage Temperature(in Centidegree): -20~ 60
Operating Humidity: 30~80%RH
Storage Humidity: 10~60%RH
Power Supply: DC 5V over PC USB Port

Software Environment&PC Requirements

Operating System: Microsoft Windows XP / Vista/7/8/10(32 & 64 bit) OSx(Mac OS X) Linux
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB2.0 High-speed Port
Display: 17’’or Larger
CD-ROM

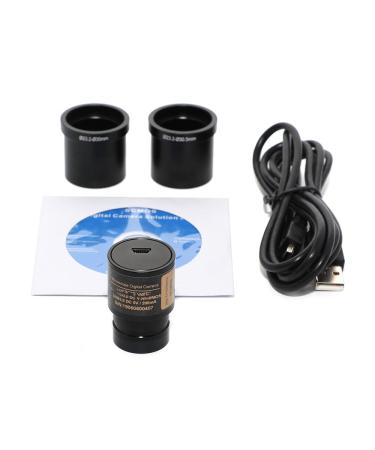

Package Contents

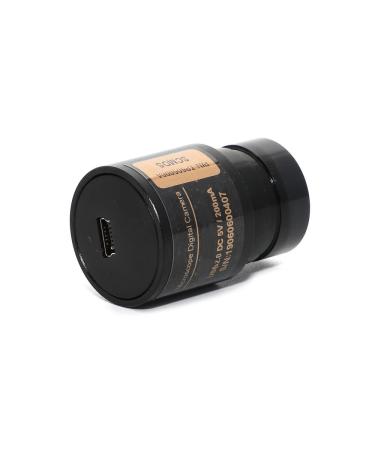

2.0M KPB eyepiece camera
USB2.0 cable 1.5m
CD software Ø8cm

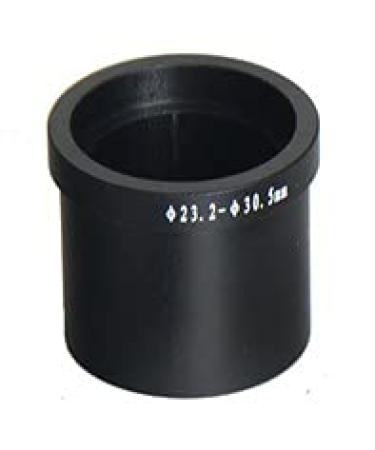

23mm to 30mm and 30.5mm adapters

Dimension

The SCMOS body, made from aluminum alloy blackening, ocular housing: Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

With Aptina CMOS sensor,Fits 3 mounting sizes: 23mm, 30mm and 30.5mm (two mounting adapters included). Be widely used to transfer the mono or binocular student microscopes to digital microscope. Native C/C++, C#/VB.NET, DirectShow, Twain Control API. Microscope eyepiece camera compatible Windows (32/64 bit) XP/Vista/7/8/10. Microscope Camera providing Windows/Linux/Mac OS multiple platforms SDK.

Best Sellers Rank: Microscope Lens Adapters. Country of Origin: China. : B0BKQ3TGL7. Manufacturer: Wintopscope. Date First Available: June 25, 2021. Item model number: SCMOS02000KPB +Adapter. Package Dimensions: 5.5 x 3.9 x 2.4 inches; 9.6 Ounces.
